About Leak and Flow Testers
Introduction to Leak Testing
Leaks in manufactured products can have severe consequences, from compromising product functionality to posing serious safety hazards. Leak testing is a critical quality control process used across industries such as automotive, aerospace, medical devices, and consumer goods to ensure products are properly sealed and free from leaks. By implementing rigorous leak testing procedures, manufacturers can ensure product reliability, safety, and long-term performance.
Why is Leak Testing Important?
Leak testing plays a vital role in:
- Early Defect Detection: Identifying manufacturing defects early in the production process, reducing waste and rework.
- Ensuring Seal Integrity: Verifying that products meet specific sealing requirements for their intended application. For instance, in the automotive industry, leak testing ensures the integrity of fuel systems, brake lines, and engine components, while in medical devices, it guarantees the sterility of packaging and fluid pathways.
- Minimizing Failures and Returns: Reducing product failures, returns, and costly warranty claims.
- Compliance and Safety: Adhering to regulatory requirements and safety standards to maintain user safety and product reliability.
What is a Leak Rate?
A leak rate is the measure of how much air or gas escapes from a product over time. It's typically expressed in units like standard cubic centimeters per minute (ccm/min) – imagine a tiny cube of air leaking every minute – or mbar l/s, which relates to the pressure difference causing the leak. The acceptable leak rate depends on the product and its application.
Types of Leaks
Leaks can occur in various forms, including:
- Through-holes: A complete hole in the material.
- Cracks: A fracture or split in the material.
- Seal failures: Imperfections in seals or gaskets.
Leak Testing Methods
Leak testing methods range from basic manual techniques to highly precise automated systems. Some common examples include:
- Underwater Visual Testing (Dunk Tank): This method involves submerging the product in water and looking for escaping air bubbles.
- Dry Air Leak Testing: These techniques use air pressure to detect leaks and include methods like pressure decay and mass flow testing.
- Pressure Decay Testing: Measures the pressure drop inside a sealed part over time. [See Our Range of Pressure Decay Leak Testers]
- Mass Flow Testing: Directly measures the rate of air escaping from the part. [See Our Range of Mass Flow Leak Testers]

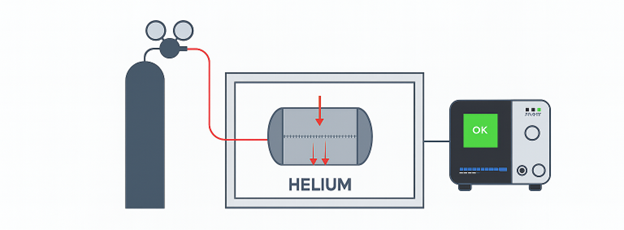

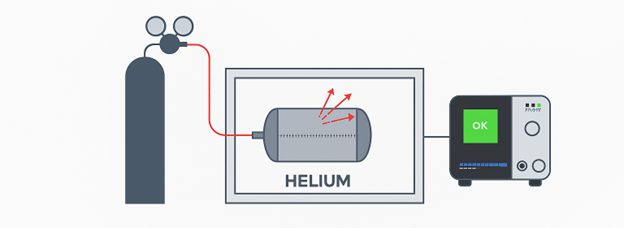

Other methods, such as tracer gas testing and vacuum box testing, are employed for specific applications or higher sensitivity requirements.
The chart below provides a comparison of common leak testing methods and their detection capabilities:
Comparison of Leak Test Methods in Volume Production: Standard and Maximum Attainable Accuracies.
As you can see, the sensitivity of leak detection varies significantly. Methods such as integral helium leak testing under vacuum offer the highest sensitivity for detecting extremely small leaks, while traditional dunk tests are limited to identifying larger leaks.
Understanding the operational conditions and selecting the correct testing method is crucial to ensuring components perform as intended.
Tight or Leaking?
The question of whether a component is tight or leaking is determined by comparing the actual leak rate against the defined permissible leak rate (VLperm). This value represents the maximum allowable leakage for a component to function correctly and safely. A component is considered tight if its leak rate falls below VLperm and leaking if it exceeds this threshold.
Leak rate < VLperm: The part is considered tight.
Leak rate > VLperm: The part is classified as leaking.
The relationship between test pressure and leak rate is critical in defining permissible leak thresholds and ensuring product integrity. The following chart illustrates how leak rates vary linearly with test pressure under different settings, offering valuable insights for calibration and testing accuracy.
As shown in the chart, the leak rate increases proportionally with the test pressure, with two examples highlighted: 2 cm³/min at 3.0 bar (blue line) and 1 cm³/min at 3.5 bar (black line). These data points can help manufacturers set appropriate thresholds and ensure products meet their sealing and safety requirements. This visualization also demonstrates the importance of considering operating conditions when determining permissible leak rates.
Leak tightness is not absolute. It's relative to the component's purpose and its operating environment. Here's why:
- Different Applications, Different Requirements:
- Internal combustion engines: Some parts need to be watertight, others oil-tight, and others gastight. Each has a different VLperm.
- Refrigerator compressors: Even a tiny leak of refrigerant (like 1g of Freon per year) can significantly impact efficiency and environmental safety.
- Car tires: A slow leak that causes pressure loss over several years might be acceptable, but a leak requiring frequent refills is not.
Real-World Example
Let's visualize leak rates with a common example
In a dunk test, air escaping through a component forms bubbles underwater. If bubbles appear:
- Every 30 seconds: This indicates a leak rate of roughly 0.001 standard cm³/min. For a car tire with a 40-liter volume, this leak would reduce pressure by about 0.1 bar over 10 years – possibly acceptable.
- Every 3 seconds: Now the leak rate is around 0.01 standard cm³/min. This faster leak would cause noticeable pressure loss within 1 year – likely unacceptable.
Note: “Standard cm³/min" refers to the volume of gas leaking per minute under standardized conditions of temperature and pressure (typically 0°C and 1 atmosphere).
To further illustrate the importance of permissible leak rates:
- Refrigerators: A leak rate of 3.8 × 10⁻⁴ standard cm³/min might be insignificant for a car tire but critical for a refrigerator to maintain refrigerant efficiency.
- Hydraulic systems: Even small leaks in high-pressure hydraulic systems can lead to catastrophic failures.
Key Considerations for Leak Testing
- Define VLperm Carefully: The permissible leak rate must be precisely determined based on the product's operational requirements.
- Test Early: Leak testing should be conducted early in the production process to identify defects before components are fully assembled, saving time and resources.
- Use Gaseous Test Media: Gases like air or helium are ideal for detecting small leaks because they have low viscosity and can escape through tiny openings that liquids cannot.
Leak Rates in Automotive Engines
Modern car engines have stringent leak rate requirements, as shown in the graph below:
- Watertight systems: These components tolerate larger permissible leak rates.
- Fuel-tight systems (saturated engines): Require more precise leak detection.
- Fuel-tight systems (direct injection engines): Demand extremely low leak rates to maintain performance and safety.
By defining acceptable leak rates and selecting appropriate test methods, manufacturers can ensure components are both leak-tight and optimized for their specific applications.
Measurement Methods
Leak testing relies on two primary measurement methods: pressure measurement and flow measurement. Each method provides unique advantages and is suitable for specific testing scenarios.
Pressure Measurement: In this method, the test part is pressurized with a defined test pressure and isolated from the air source. During the measuring phase, the system monitors changes in pressure caused by leaks. Pressure measurement is widely used in industrial leak testing and is capable of detecting leaks as small as 0.1 cm³/min with small test volumes. Variations include:
- Absolute pressure: Effective for small leaks at lower pressures.
- Differential pressure: Preferred for high-pressure scenarios due to improved signal resolution.
Flow Measurement: This method keeps the test part connected to the air source while monitoring the air flow into the component. It determines if a leak causes a continuous flow of air. Unlike pressure measurement, the test signal in flow measurement is independent of the test volume, making it advantageous for applications requiring calibration against a reference leak.
The Phases of Dry Air Leak Testing
Both Pressure Decay and Mass Flow Dry Air Leak Testers rely on test equipment that controls the pressurization of the part and either measures the pressure and/or flow, in order to give a pass/fail result. In general, the phases are common between both types of Dry Air Leak testing: Filling, Balancing, Measuring, and Venting. Understanding these phases is crucial for optimizing leak test accuracy and efficiency.
1. Filling Phase
The filling phase involves pressurizing the test part with the test medium, usually air. During this phase, air is introduced into the test part until the desired test pressure is achieved. The efficiency of this phase depends on the volume of the test part and the pressure source. Proper sealing of the test part is critical to avoid inaccuracies during the subsequent phases.
2. Balancing Phase
The balancing phase (also sometimes called the "stabilization" or "settling" phase) allows the system to stabilize after pressurization. During filling, the rapid airflow creates turbulence, and the air undergoes temperature changes—cooling as it expands into the test part and then heating up due to compression. The balancing phase allows these fluctuations to settle, ensuring that the air temperature within the test part reaches equilibrium with the surrounding environment. Achieving thermal equilibrium is crucial for obtaining a reliable test result, as temperature variations can affect pressure readings.
Advanced techniques, such as shock filling, can reduce the time required for stabilization. Shock filling involves initially over-pressurizing the test part and then quickly adjusting it to the desired test pressure, minimizing temperature fluctuations.
Advancing the measuring phase can significantly reduce the overall test cycle time.
3. Measuring Phase
During the measuring phase, the system monitors the pressure or flow within the test part. Any air escaping from the test part due to leaks causes a measurable drop in pressure (in pressure decay testing) or an increase in flow (in mass flow testing). This phase provides the critical data used to determine if the component meets the permissible leak rate criteria.
The efficiency of this phase depends on accurate data collection. Methods such as temperature compensation are often employed to minimize errors caused by residual thermal effects from the filling and balancing phases. For applications requiring shorter test cycles, advancing the measuring phase can further optimize the process, as illustrated in the chart above.
Theoretical Basis of Leak Testing Measuring Phase
The measuring phase relies on the principles of gas laws, particularly the isothermal condition where the product of pressure and volume remains constant:
p×V=constant
In a pressure decay test, this relationship becomes:
p1×VT=p2×VT+pAt×VL
Where:
- p1: Pressure at the start of the measuring phase
- p2: Pressure at the end of the measuring phase
- VT: Test volume
- pAt: Atmospheric pressure
- VL: Leak volume (the volume of air escaping through the leak)
The pressure variation (Δp) during the measuring phase is calculated as:
Δp=p1−p2
Substituting into the main equation gives:
Δp×VT=pAt×VL
This formula illustrates that for a given leak rate, the pressure decay (Δp) is proportional to the leak volume (VL) and atmospheric pressure (pAt).
Length of the Measuring Phase
To determine the time (tM) required for the measuring phase, the following equation is used:
tM = (Δp × VT × 60) / (pATM x VL)
Where:
- tM: Length of the measuring phase in seconds
- Δpp: Pressure decay at the limit leak rate (in Pascals)
- VT: Test volume (in cm³)
- pATM: Atmospheric pressure in Pa
- VL: Leak rate (in cm³/min)
4. Venting Phase
The final phase, venting, involves depressurizing the test part and releasing the test medium. This ensures the component is safe to handle and prepares the system for the next test cycle. Proper venting prevents residual pressure from affecting subsequent tests.
Efficient leak testing depends on optimizing each phase to ensure accurate results while minimizing test cycle times. By understanding and refining these processes, manufacturers can achieve both high precision and throughput in their quality control operations.
Absolute Pressure Decay Testing
Absolute Pressure Decay Testing, is a widely used method for detecting leaks by monitoring the internal pressure of a sealed test part. This technique measures the drop in pressure over a defined period and is a critical quality control step across industries like automotive, medical devices, and consumer goods.
How It Works
- The test part is filled with air or another gas and pressurized to a specified test pressure.
- The test part is sealed and isolated from the pressure source.
- An absolute pressure sensor (or transducer) monitors the internal pressure over a set period.
- If the pressure remains stable, the part is considered leak-free.
- If the pressure decreases, the rate of decay indicates the presence and size of a leak.
This process is effective because the pressure drop (Δp) is directly proportional to the size of the leak. It is suitable for applications where precise and non-destructive testing is required such as automotive, medical devices, and consumer goods. For instance, it is used to verify the airtightness of fuel systems and engine components in vehicles, confirm the sterility of medical devices, and ensure the durability of consumer goods that require airtight packaging. The appeal of this testing technique lies in its speed, typically completing tests in seconds, and its non-destructive nature, preserving the integrity of the tested part.
The relationship between pressure, volume, and time is essential for calculating leak rates. Leak rates indicate the amount of air or gas escaping from a part over time and are calculated using the following formula:
Leak Rate → VL=(Δp×60×VT)/PATM×tm
This formula allows precise determination of the leakage from the pressure drop during the test and allows manufacturers to calculate leak rates and determine whether a test part meets permissible thresholds.
Pressure Decay Testing ensures product safety, performance, and compliance with industry standards. Its rapid, accurate, and non-invasive nature makes it indispensable for modern manufacturing.
Differential Pressure Decay Testing
Differential Pressure Decay Testing is a highly sensitive and precise method for detecting leaks, particularly in applications where even the smallest leaks can compromise product safety or performance. This approach builds on the principles of pressure decay testing by introducing a reference volume and a dual-sensor setup to enhance accuracy and overcome the limitations of absolute pressure measurement.
Traditionally, pressure decay testing uses a single sensor to measure internal pressure changes in the test part. While effective, this method faces challenges, especially at high pressures. For example, at a test pressure of 8 bar, the sensor must detect changes as small as 0.001 mbar to identify minute leaks. Achieving this level of sensitivity with a single sensor is difficult, particularly when the sensor must also handle a wide range of pressures during pressurization.
Another challenge is the adiabatic effect, where the temperature of the test part rises during pressurization and then stabilizes, causing a natural pressure drop. Without compensation, this drop could be misinterpreted as a leak.
Differential Pressure Decay Testing addresses these issues by using two sensors: an absolute pressure sensor to monitor the overall pressure and a differential pressure transducer (DPT) to measure the pressure difference between the test part and a reference volume.
The choice of reference volume is crucial for accurate differential pressure decay testing. There are three primary options:
- The internal volume of the leak detector can serve as the reference for smaller test items, simply by sealing the reference port.
- For larger test parts, an external reference volume matched to the test part’s size improves accuracy.
- For the most precise measurements, a verified leak-free item can be used as the reference, especially when temperature stabilization is a concern.
By pressurizing the test part and the reference volume simultaneously, the DPT detects even the smallest leaks by measuring the minimal pressure difference between the two. Temperature effects are also compensated for since any temperature-induced changes affect both the test part and the reference equally, leaving the differential pressure measurement unaffected.
Differential Pressure Decay Testing combines technical sophistication with practical efficiency, ensuring product quality and safety even in the most demanding applications.
Standard Mass Flow Leak Testing
Mass Flow Leak Testing is a fast and efficient method widely used in high-throughput manufacturing environments. This technique begins by pressurizing a reference volume, often referred to as VEX, with air designated for testing. Once pressurized, this air is used to fill the test part, ensuring it reaches the specified test pressure. Unlike the pressure decay methods, the mass flow approach offers the unique advantage of providing immediate leakage measurements.
At the heart of this method is the mass flow sensor, which continuously monitors and quantifies any leakage in real time. This instantaneous feedback eliminates the need for extended monitoring periods, streamlining the testing process and allowing for rapid identification of leaks. The real-time data enhances production efficiency, making it particularly suitable for components manufactured in large quantities or in environments requiring short cycle times.
Mass Flow Leak Testing is especially advantageous for applications where speed and throughput are critical, such as in the automotive or consumer goods industries. Its ability to deliver accurate, real-time results makes it an indispensable tool in modern manufacturing, ensuring both product integrity and operational efficiency.
Continuous Mass Flow Leak Testing
Continuous Mass Flow Leak Testing is an advanced method used for detecting larger leak rates, typically greater than 500 cc/min. It is especially effective for assessing the integrity of products designed to manage the flow of gases or liquids, such as engine components, household appliances, gas meters, HVAC systems, and certain medical devices. This technique is particularly useful when product variability exceeds a 5-10% margin, ensuring the flow rate remains within the specified standards for the application.
This method offers several key advantages. It provides immediate feedback on the integrity of the product, is non-destructive, and can precisely detect even minor leaks. Additionally, it eliminates the need for calibration against a standard part and is versatile enough to handle products of varying sizes and flow rates, as long as stable air pressure conditions are maintained.
How Continuous Mass Flow Leak Testing Works
The procedure begins by filling the test part with air until the required test pressure is reached. The system holds the part at this pressure until internal stabilization occurs, where the mass flow needed to maintain the pressure decreases. During the testing phase, there may be brief pressure fluctuations as the system balances itself at the desired pressure level. Once equilibrium is reached, the flow sensor quantifies the leak rate by measuring the volume of air required to sustain the pressure over the test period.
Ensuring Successful Mass Flow Leak Testing
For accurate and repeatable results, the following factors are critical:
- The use of clean, dry air to prevent contamination that could skew measurements.
- A consistent and stable air pressure source to ensure precision.
- A controlled testing environment to prevent deformation of the test part under pressure.
- A correctly scaled flowmeter to accurately measure the expected range of flow rates.
While this testing method is ideal for many scenarios, consulting an application engineer can help tailor the approach to meet specific requirements and operational goals. At A-Tech, our team of engineers and application specialists is here to guide you through selecting the most effective testing method for your products. We work closely with you to ensure that the chosen solution aligns perfectly with your operational needs, delivering precision, reliability, and confidence in your quality assurance processes. Contact Us Today
Additional Considerations in Leak Testing
Addressing Environmental Factors
Temperature Effects:
Temperature changes can significantly impact the accuracy of leak testing. All components involved—including the air, the test part, and the sealing fixtures—must maintain a constant temperature during testing. For instance, bringing a cold component indoors for testing without allowing it to reach ambient temperature can result in a misleading pressure reading, often interpreted as a leak.
To minimize these effects, temperature compensation techniques are used. These methods adjust the readings to account for any variations caused by temperature changes, ensuring accurate results.
Volume Stability During Testing
Changes in test volume during the measuring phase can distort results. For example:
- Expansion: Increased volume due to applied pressure can mimic a leak.
- Compression: Compression of seals can mask actual leaks.
To avoid these errors, components like seal plates must be designed to prevent deformation under test pressure, and seals should be adequately supported.
Hidden Cavities and Unstable Test Volumes
Hidden Testing Spaces:
Undetected cavities in the test part can interfere with accurate testing. For instance, a hidden cavity connected by a non-return valve may be pressurized during the filling phase but isolated during the measurement phase, leaving potential leaks undetected.
Unstable Volumes:
The materials and construction of the test part can cause "breathing," where the volume changes under pressure, creating false leak indications. Proper design of test fixtures and the use of materials with low elasticity can help address this issue.
Moisture in the Test Volume
Surface moisture can temporarily seal small leaks, leading to false test results. Additionally, moisture may cause vaporization or condensation during filling and venting, distorting pressure readings. To ensure reliable results:
- Only dry parts should be tested.
- Clean, dry air should be used during testing.
Leaking Test Equipment
Occasionally, the testing equipment itself can introduce errors. Worn seals, leaks in the test circuit, or damaged components can mimic leaks in the test part. Regular maintenance and calibration are essential to differentiate between actual product defects and equipment-related issues.
