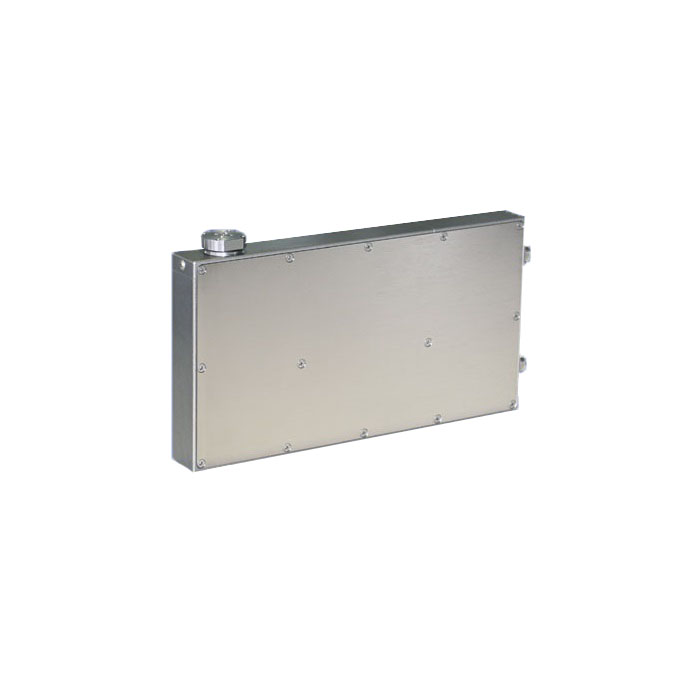

SL-FS, EMFR Weigh Cell
The series SL-FS Weigh Cells cover the weighing range up to 1,000 g. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into multi-track applications and everywhere where small...
Features:
- Weighing range up to 1,000 g, covered by 2 models
- Additive dead load range up to 350 g
- Binary I/O channels with customer-specific functions
- Interface 1: CAN or RS 422
- Interface 2: RS 232 for service and configuration
- Multi-Track Weigh Cell, starting from 30 mm centerline distance
- Anodized Aluminum Housing
- Protection class IP 44
- Settling Time: < 150 ms
- Sampling Rate: 1 ms
- Compact, Slim construction
Manufacturer: Wipotec Gmbh
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
SL-FS - Description
The series SL-FS Weigh Cells cover the weighing range up to 1,000 g. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into multi-track applications and everywhere where small frame sizes are demanded.
By using GMP-tailored construction, all Weigh Cells are also suitable for use in pharmaceutical industrial plants.
The Weigh Cell comes standard equipped to supply final weighing values via a CAN interface as ready to connect modular components.
By using GMP-tailored construction, all Weigh Cells are also suitable for use in pharmaceutical industrial plants.
The Weigh Cell comes standard equipped to supply final weighing values via a CAN interface as ready to connect modular components.
SL-FS - Specifications
| Type | Weigh Cell |
| Full Scale | 250 g |
| 1000 g | |
| Dead Load | 50 g |
| 150 g | |
| 350 g | |
| Interface | RS232 |
| RS422 | |
| CANbus | |
| Binary I/O | |
| Bus Operation | |
| Linearity | 0.002 g |
| 0.01 g | |
| Resolution | 0.001 g |
| 0.002 g | |
| 0.005 g | |
| 0.01 g | |
| IP Rating | IP44 |
SL-FS - Models & Accessories
Models
| SL-250/150-FS | Weigh Range 250 g, Dead Load 150 g |
| SL-1000/350-FS | Weigh Range 1000 g, Dead Load 350 g |
SL-FS - Downloads
SL-FS Datasheet |
