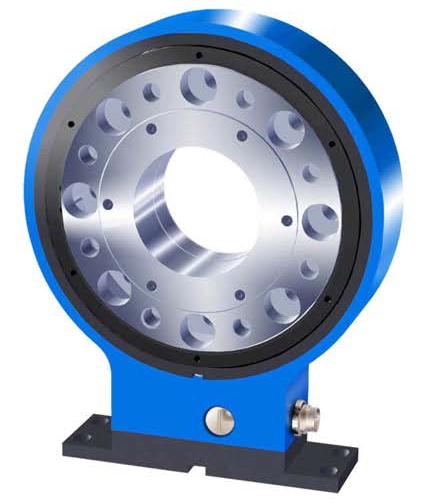

DR-2800, Flange Rotary Torque Sensor
The DR-2800 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly. The unit is designed with a rotor-sided through hole and is maintenance-free.
Features:
- Contactless Rotary Torque Sensor.
- Rotor-Sided Through Hole
- Very Short Axial Length
- Connection: 12-pin Series 581 Connector with Speed Option
- Analog Output ±5V (±10V Option)
- Rated Torque from 50 ... 10000 N·m
Manufacturer: Lorenz Messtechnik GmbH
Quote
Datasheet
Specifications
Downloads
Similar Products
DR-2800 - Specifications
| Type | Rotary |
| Full Scale | 50 Nm |
| 100 Nm | |
| 200 Nm | |
| 500 Nm | |
| 1000 Nm | |
| 2000 Nm | |
| 5000 Nm | |
| Max Speed | 8000 RPM |
| 10000 RPM | |
| 12000 RPM | |
| 15000 RPM | |
| Output | ±5 V DC |
| ±10 V DC | |
| Speed/Angle (TTL) | |
| Precision | ±0.10 % FS |
| Excitation | 12 V - 28 V DC |
| Drive Side | Flange |
| Test Side | Flange |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
