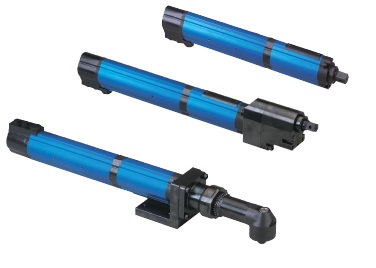

2500S, AC Servo Nutrunner
- Torque ranges up to 160 Nm depending on model
- Maximum RPM ranges up to 410 rpm
- Torque transducer with built-in amplifier and AC/DC converter board
- Improved noise resistance by transferring AC/DC converted digital signals to controller
- Controller memory can store up to 2700 curves
- External moments can be absorbed by housing, eliminating zero-balance fluctuations
The 2500S Nutrunner offers Light Weight inline configuration for larger Torque Range Applications. The rugged construction lasts millions of cycles before requiring service, when applied correctly.
Torque transducer has built-in amplifier and digital control signals improve noise resistance by transferring AC/DC converted digital signals to the controller.
With its on-board ID chip communicates the Tool Type to the controller for easy tool change with no analog adjustments.
Multiple Tightening Methods have been integrated into one program structure so full operations from start of tightening to finish can be performed by a single program (32 steps max.)
The CPS controller can store up to 31 programs, with set routines such as yield point control method as well as torque control and angle control.
The controller performs signature analysis on the Torque vs. Angle plot and it's internal memory can store up to 2700 curves.
| Torque Range | 20 - 60 Nm |
| 40 - 75 Nm | |
| 40 - 100 Nm | |
| 40 - 130 Nm | |
| 80 - 160 Nm | |
| Max RPM | 230 |
| 285 | |
| 490 | |
| 610 | |
| Interface | Digital I/O |
| Profibus | |
| DeviceNet | |
| EthernetIP | |
| CC-Link |
| 2500S | |
| 2505S | |
| 2509S | |
| 2515S | |
| 2510S | |
| 2520S |
