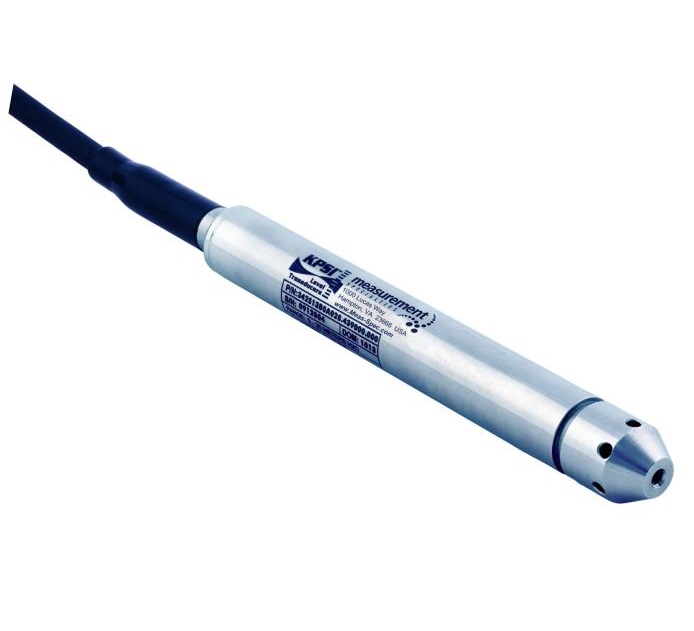

KPSI 342, Analog Submersible Level Transducer
The KPSI 342 submersible hydrostatic level transducer combines sensor competencies with the latest in ASIC Technology, which provides unmatched sensor compensation over the entire operating range of the pressure sensor.
Features:
- Vented, Sealed or Absolute Gauge Transducer
- Fully Submersible, Probe Based
- ASIC Technology
- Media: Hostile Fluids & Gases
- Welded 316 Stainless Steel or Titanium Housing
- 4-20 mA Analog Output
- IP 68, NEMA 6P
- 2-Year Warranty
- Custom Polyurethane or ETFE Cable Lengths
- Custom Level Ranges (up to 692 ft)
- Ported Nose Cap
- Lifetime Lightning Protection (optional)
- Shipped with Long Life Vent Filter
- CE Compliant
Manufacturer: TE-Connectivity - Measurement Specialties - PSI
Quote
Datasheet
Specifications
Downloads
Similar Products
KPSI 342 - Specifications
| Type | Fully Submersible |
| Full Scale | 10 - 692 ft |
| Output | 4 - 20 mA |
| Precision | ±0.25 % FS |
| Excitation | 9 - 30 V DC |
| IP Rating | IP68 |
| NEMA 6P | |
| Min Temperature | -20 °C |
| Max Temperature | 85 °C |
KPSI 342 - Downloads
KPSI 342 Submersible Level Sensor Datasheet |
