LS1, Non-Contact Position Transducer

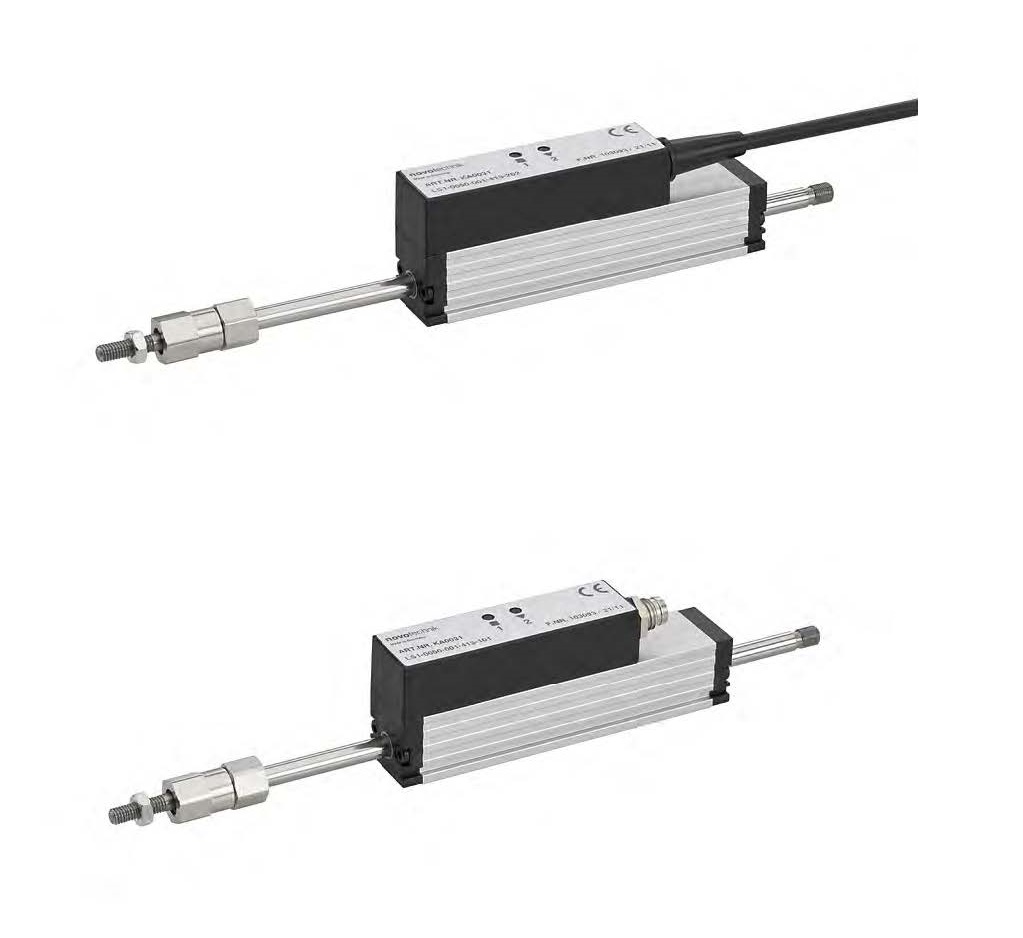

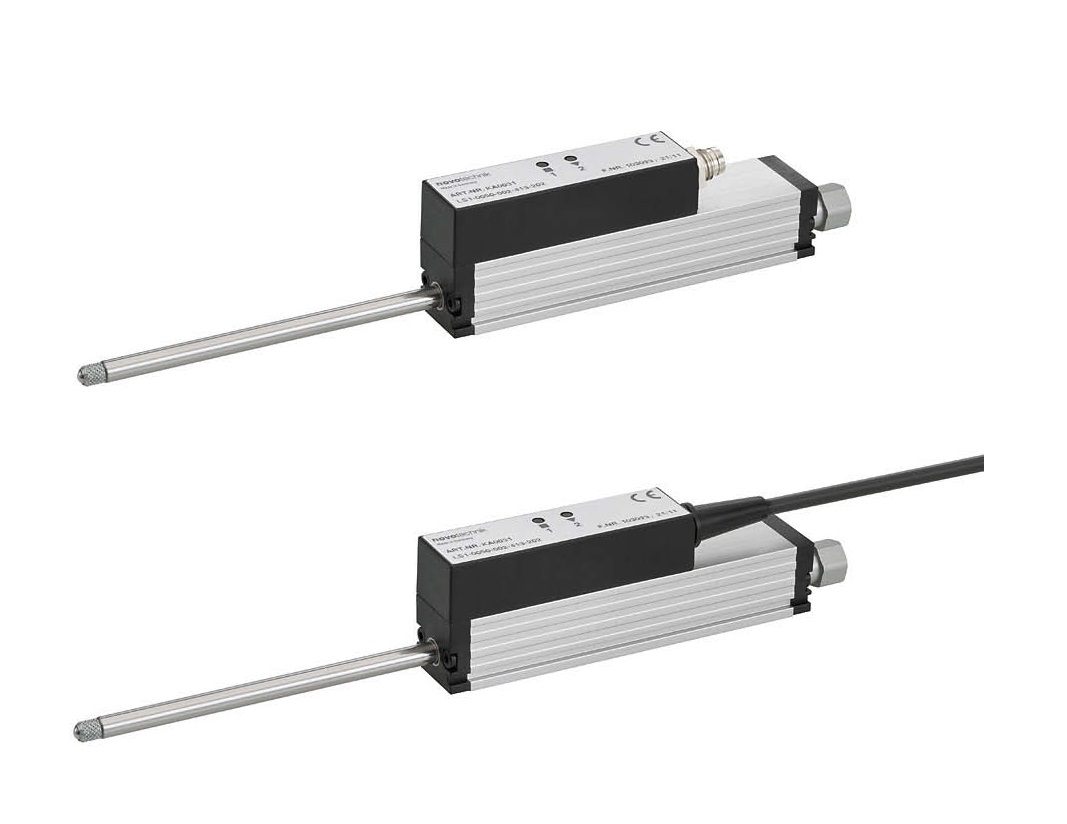

The LS1 position transducer, based on our NOVOPAD non-contacting inductive measurement technology. Provides direct, accurate measurement of travel for display or feedback applications.
Features:
- Teach-In (Min-Max) via Push Buttons with Status LED
- Square Profile Housing
- Anodized Aluminum Housing
- Connection: 3-pin Round M8 Connector or 2m Integral Cable
- Long Life up to 100 Million Movements
- Insensitive to Magnetic Fields
- Double-Sided Support for Push Rod
Manufacturer: Novotechnik
Quote
Datasheet
Specifications
Downloads
Similar Products
LS1 - Specifications
| Type | LVDT |
| Full Scale | 25 mm [0.984"] |
| 50 mm | |
| 75 mm | |
| 100 mm | |
| 150 mm | |
| 200 mm | |
| Output | 0 - 10 V DC |
| 4 - 20 mA | |
| Non-Linearity | ±0.10 % FS |
| ±0.15 % FS | |
| Resolution | 0.05 mm |
| 0.10 mm | |
| Excitation | 16 - 30 V DC |
| IP Rating | IP40 |
| Min Temperature | -30 °C |
| -40 °C | |
| Max Temperature | 85 °C |
| 100 °C |
