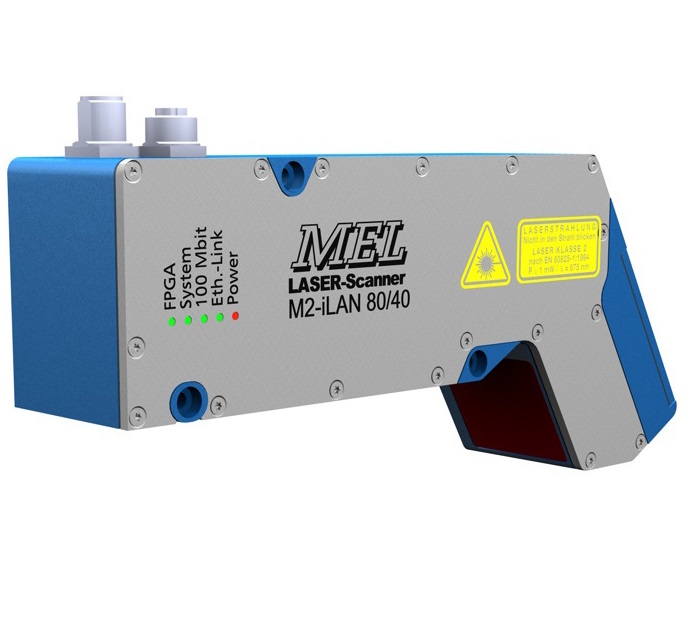

M2-iLAN-2, Laser Scanner

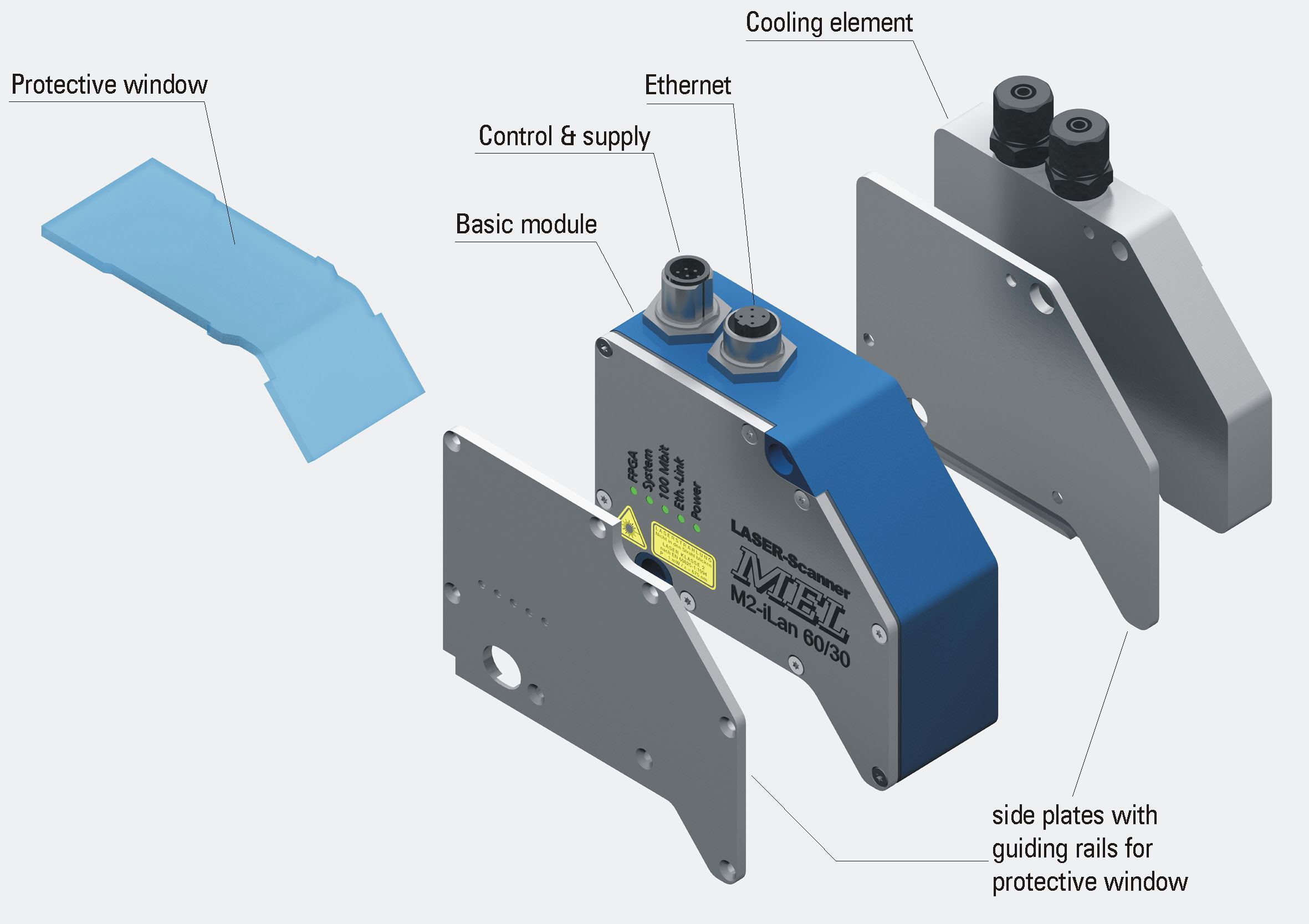

The M2-iLAN-2 laser scanner is suited to many fields of application due to its modular construction. The unit has an integrated controller and a LAN connection, and has low current consumption.
Features:
- Laser Scanner
- Integrated Controller
- Rectangular Profile Housing
- Connection: 12-pin 4 pole Female Connector
- Sampling Rate: 100 Hz/170 Hz
- Laser Protection Class: 2M, 3R or 3B
- Surface: White to Black, Matte to Glossy
- Protective Window (Option)
- Cooling Element (Option)
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
M2-iLAN-2 - Specifications
| Type | Laser |
| Full Scale | 6 mm |
| 10 mm | |
| 20 mm | |
| 40 mm | |
| 60 mm | |
| 80 mm | |
| 120 mm | |
| 260 mm | |
| 400 mm | |
| 600 mm | |
| 1000 mm | |
| Near Gap | 38 mm |
| 50 mm | |
| 53 mm | |
| 55 mm | |
| 63 mm | |
| 65 mm | |
| 84 mm | |
| 150 mm | |
| 325 mm | |
| 500 mm | |
| 650 mm | |
| 845 mm | |
| Output | Ethernet |
| Non-Linearity | ±0.20 % FS |
| Resolution | 0.003 mm |
| Excitation | 12 - 30 V DC |
| IP Rating | IP64 |
| Min Temperature | 0 °C |
| Max Temperature | 40 °C |
M2-iLAN-2 - Models & Accessories
Models
| M2-iLAN-2 | Standard Unit |
| M2-iLAN-2-S | Unit with Protective Window |
| M2-iLAN-2-WS | Unit with Protective Window and Cooling |
M2-iLAN-2 - Downloads
M2-iLAN-2 Datasheet |
