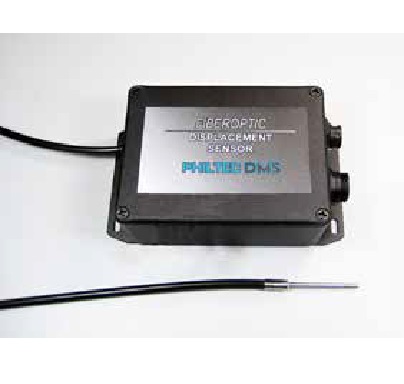

DMS-RC22, Digital Output Reflectance Compensated Fiberoptic Displacement Sensor
The DMS-RC22 transducers are based upon detecting the intensity of reflected light. These sensors are reflectance compensated so that measurements are independent of varying surface reflectance.
Features:
- Fiberoptic
- Reflectance Compensated Output
- 300 Stainless Steel Probe Tip
- Tip Outer Diameter: 0.81 mm
- Target Spot Size: 0.5 mm
- 0.9 m Fiberoptic Cable
- Available in Full Size RS232 Output, Mini RS232 Output or Mini USB Output
Manufacturer: Philtec
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
DMS-RC22 - Specifications
| Type | Fiberoptic |
| Full Scale | 3 mm [0.125"] |
| Output | RS-232 |
| USB | |
| Non-Linearity | Non-Linear |
| Resolution | 0.001 mm |
| Excitation | 12 V DC |
| Min Temperature | -55 °C |
| Max Temperature | 175 °C |
DMS-RC22 - Models & Accessories
Models
| DMS-RC22 | RS-232 Interface |
| mDMS-RC22 | Miniature Unit, RS-232 Interface |
| muDMS-RC22 | Miniature Unit, USB Interface |
DMS-RC22 - Downloads
DMS-RC22 Datasheet |
Fiberoptics For High Magnetic Fields App Note |
RadHard, Radiation Resistant Sensors App Note |
Curved Glass Measurement Solution App Note |
Type D Sensor Applications With Tilt App Note |
10DMS Rack vs. 2x5DMS Rack Drawing Drawings |
Cryogenic Lens Holders App Note |
Calibration of Fiber Optic Displacement Sensors Tech Note |
Applications of Fiber Optic Sensors in Space Launch App Note |
