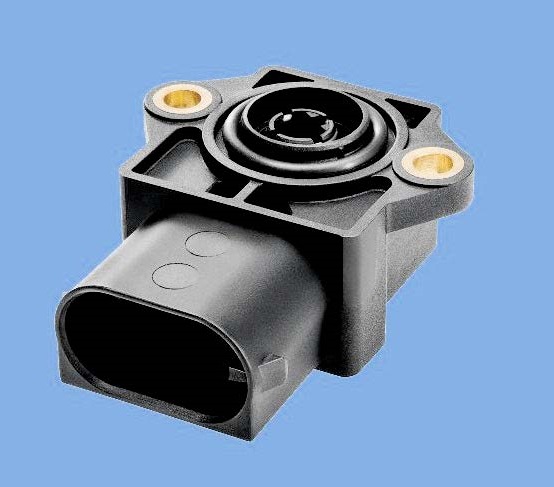

RSC3200, Hall-Effect Rotary Displacement Sensor
The RSC3200 rotary sensor features a compact, wear-free design. The sensor is very robust and is designed to withstand harsh environmental conditions like vibrations, temperature variations, dirt and humidity.
Features:
- Contactless Rotary Sensor
- Temperature-Resistant Plastic Housing
- Integrated D-Shaft Coupling
- Connection: 6-pin MQS Connector
- Redundant System
- Long Lifetime
- Simple Mounting
Manufacturer: Novotechnik
Quote
Datasheet
Specifications
Downloads
Similar Products
RSC3200 - Specifications
| Type | Analog |
| Non-Contact | |
| Full Scale | 360° |
| Max Speed | Unlimited |
| Output | Ratiometric |
| Non-Linearity | ±2.00 % FS |
| Resolution | 0.1° |
| Excitation | 5 V DC |
| IP Rating | IP69 |
| Min Temperature | -40 °C |
| Max Temperature | 125 °C |
RSC3200 - Downloads
RSC3200 Hall-Effect Rotary Displacement Sensor Datasheet |
RSC3200 - Similar Products
- Contactless Transmissive Rotary Sensor
- Temperature Resistant Plastic Housing
- Connection: Lead Wires
- Redundant Output (Option)
- Unlimited Mechanical Lifetime
- Simple Mounting
| Type | Analog, Non-Contact |
| Full Scale | 30 - 360° |
| Max Speed | Unlimited |
| Output | Ratiometric |
| Non-Linearity | ±0.50 % FS |
| Resolution | 0.1° |
- Robust Touchless Rotary Sensor
- Ratiometric, PWM, SPI and Analog Output
- 5V or 24V Excitation
- Connection: 3, 5 or 6 Wires or 3-, 6- or 10-pole Cables
- Redundant Models Available
- Programmable Models Available
- Unlimited Lifetime
| Type | Analog, Non-Contact |
| Full Scale | 360° |
| Max Speed | Unlimited |
| Output | 0 - 5 V DC, 4 - 20 mA, Ratiometric, PWM, SPI |
| Non-Linearity | ±0.30 % FS, ±0.50 % FS |
| Resolution | 0.02°, 0.1° |
- Contactless Magnetic Sensor
- Analog Output (Model PRAS1)
- SSI Output (Model PRDS1)
- M12 Housing
- Stainless Steel Housing
- Connection: Analog Output: 2m Integral Cable or 5-pin M12 Socket
- Connection: SSI Output: 2m Integral Cable or 8-pin M12 Socket
- SIL in Preparation
| Type | Analog, Non-Contact |
| Full Scale | 15 - 360° |
| Max Speed | Unlimited |
| Output | 0.5 - 4.5 V DC, 0.5 - 10 V DC, 4 - 20 mA |
| Non-Linearity | ±0.30 % FS |
| Resolution | 0.05°, 0.1° |
- Contactless Dust Explosion-Proof Rotary Sensor
- Analog Output
- Stainless Steel Housing
- Connection: 5-pin M12 Socket
- Dust-Ex-Proof: II 3D Ex tD A22 IP65 T80°C
- SIL in Preparation
| Type | Analog, Non-Contact |
| Full Scale | 15 - 360° |
| Max Speed | Unlimited |
| Output | 0.5 - 4.5 V DC, 0.5 - 10 V DC, 4 - 20 mA |
| Non-Linearity | ±0.30 % FS |
| Resolution | 0.1°, 0.36° |
- Magnetic Rotary Sensor
- Analog, SSI or CANopen Output
- Aluminum Housing
- Aluminum Shaft
- 10 mm Shaft or 6 mm Hollow Shaft
- Connection: Analog: 2m Integral Cable or 5-pin M12 Socket
- Connection: SSI: 2m Integral Cable or 8-pin M12 Socket
- Connection: CANopen: 5-pin M12 Socket
| Type | Analog, Non-Contact |
| Full Scale | 15 - 360° |
| Max Speed | 10000 RPM |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA |
| Non-Linearity | ±0.30 % FS |
| Resolution | 0.1°, 0.36° |
