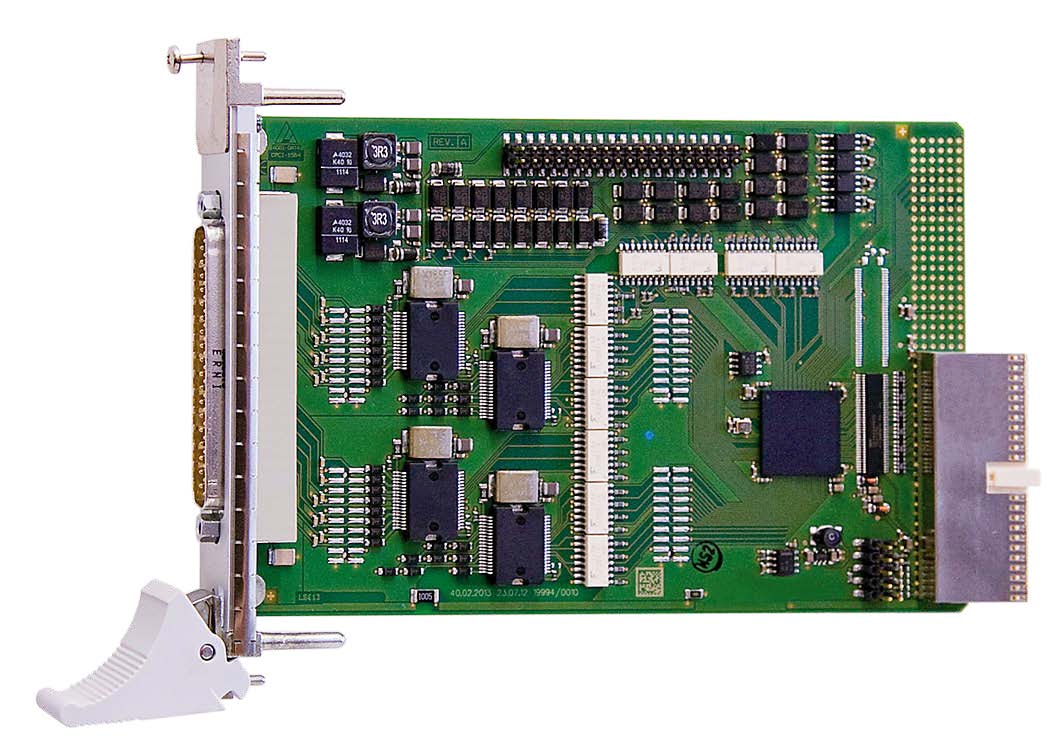

CPCI-1564, Digital I/O Board for Compact PCI

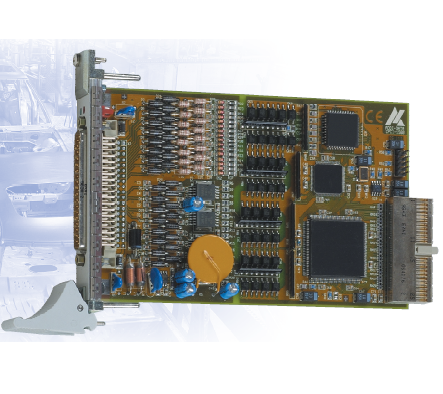

The CPCI-1500 board features optical isolation, creeping distance, protection against fast transients, overvoltage, electrostatic discharge and high-frequency EMI. The board also has separate ground lines for inputs and outputs.
Features:
- Digital I/O Board for Compact PCI
- CPCI 3.3 V or CPCI 5 V
- 32 Digital Inputs, 24 V, Including 16 Interruptible Inputs, Filtered
- 32 Digital Outputs, 24 V, 500 mA/channel, Filtered
- Optical Isolation 1000 V
- Watchdog, Timer, 3 x 32-bit Counter up to 500 kHz
- Outputs Reset to 0 at Power-On
Manufacturer: ADDI-DATA GmbH
Quote
Datasheet
Specifications
Downloads
Similar Products
CPCI-1564 - Specifications
| Borad Type | Compact PCI |
| Input Type | Digital |
| Digital Inputs | 32 |
| Digital Outputs | 32 |
CPCI-1564 - Downloads
