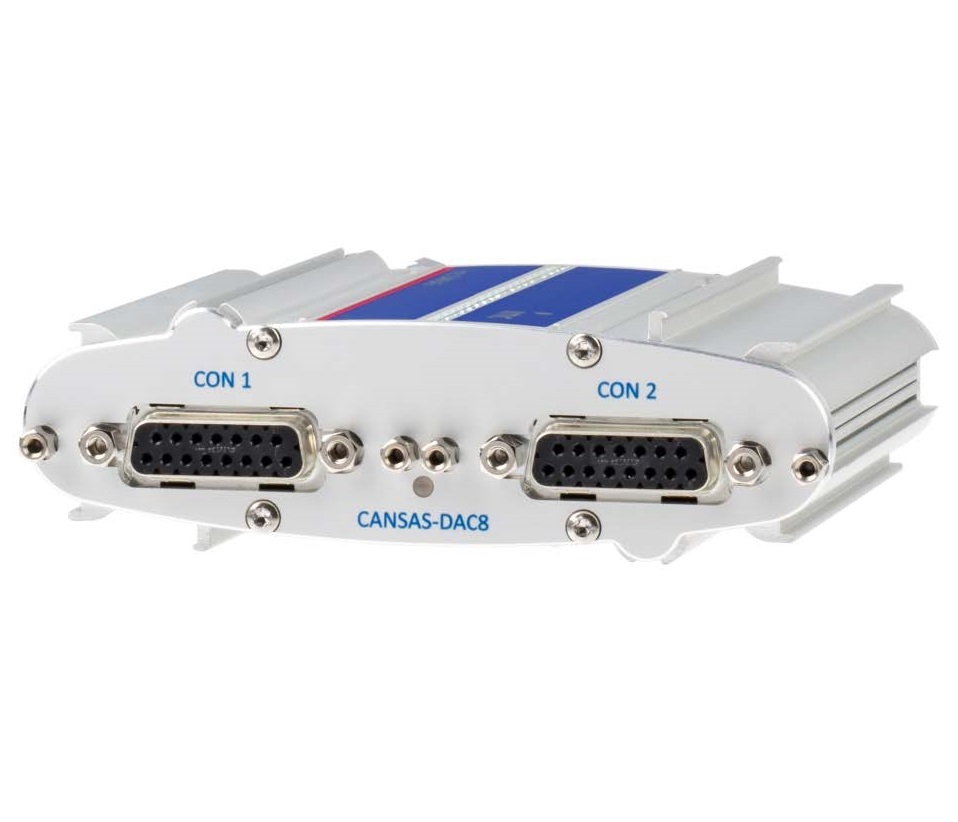

CANSAS-DAC8, imc CANSAS Module
The imc CANSAS-DAC8 module outputs the user's choice of current or voltage signals on 8 analog channels. The desired output signals can either be extracted directly from a CAN message or derived from received CAN messages or specified functions.
Features:
- imc CANSAS Output Module for Voltage & Current
- 8 Output Channels
- Simultaneous Sampling of All Channels
- Synchronization of CANSAS Modules with CAN Logger
- Support imc Plug & Measure
- Mechanically Robust
- Self-Start at Power-On
- Connectors for V or ma under "Related" tab
Manufacturer: imc Test & Measurement
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Related Products
Similar Products
CANSAS-DAC8 - Specifications
| Family | imc CANSAS |
| Unit Type | Module |
| Standalone | |
| Analog Outputs | 8 |
| Resolution | 16-bit |
| Communication | CANbus |
| Min Temperature | -20 °C |
| Max Temperature | 85 °C |
| IP Rating | IP20 |
| IP40 | |
| IP65 |
CANSAS-DAC8 - Models & Accessories
Models
| CANSAS-L-DAC-8 | 8 Analog Outputs, DSUB-15 Signal Conn, Aluminum Profile Housing, IP40 |
| CANSAS-L-DAC-8-V | 8 Analog Outputs, ITT Veam Signal Conn, Aluminum Profile Housing, IP40 |
| CANSAS-K-DAC-8 | 8 Analog Outputs, DSUB-15 Signal Conn, Cassette Housing, IP20 |
| CANSAS-K-DAC-8-BNC | 8 Analog Outputs, BNC Signal Conn, Cassette Housing, IP20 |
| CANSAS-K-DAC-8-V | 8 Analog Outputs, ITT Veam Signal Conn, Cassette Housing, IP20 |
| CANSAS-SL-DAC-8-D | 8 Analog Outputs, DSUB-15 Signal Conn, Sealed Housing, IP65 |
CANSAS-DAC8 - Downloads
CANSAS-DAC8 Datasheet Datasheet |
imc Company Brochure Brochure |
imc_CANSAS_Brochure Brochure |
