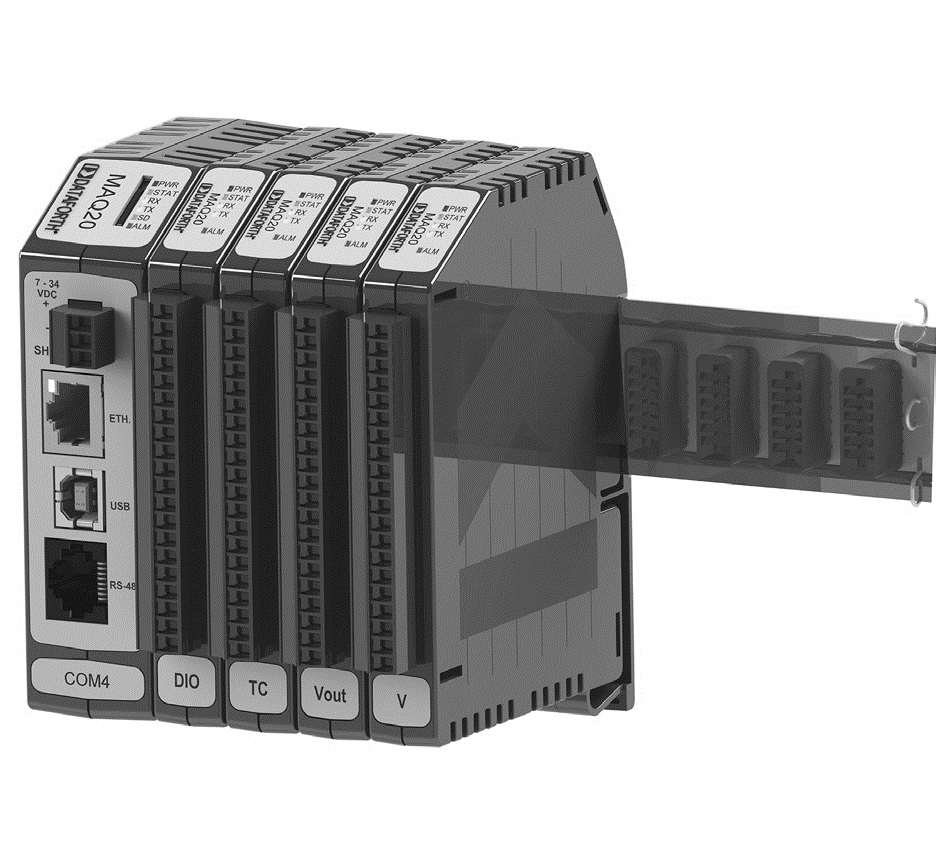

MAQ20-COM, Communications Base Unit
- Interface up to 24 I/O Modules
- Connect Host Computer & MAQ20 System
- Communicate Using Ethernet TCP/IP, USB, RS-232 or RS-485
- Store Acquired Data Locally
- Communications Interface-to-Bus Isolation 50 VDC
The MAQ20-COM base unit is offered in two models and provides the connection between a host computer and a MAQ20 data acquisition system.
The MAQ20-COM supports up to 4 simultaneous Socket connections with Ethernet TCP/IP. The MAQ20-COM can support up to 24 I/O modules, each with up to 8 inputs, providing an expansion of up to 192 parameters.
A very useful feature of the MAQ20 is the capability to store acquired data locally for later analysis.
There are a number of Analog and Digital I/O modules that offer a wide range of application solutions.
Software is available for configuration, Graphical Display (GUI / HMI) and Report Generation.
| Family | Dataforth MAQ20 |
| Unit Type | Base |
| Communication | Ethernet |
| USB | |
| RS-232 | |
| RS-485 | |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
There are an endless number of applications for these systems, for in-field monitoring of Bridges, Structures, Tank Farms, Environmental conditions, Water Levels, etc.
For in-process monitoring applications, these can be used for Weighing, Thickness, Temperature, Position, Dimensional Gauging, Height, Batching, etc.
For Quality Control, these can be used for Performance Verification, Data Recording, Reporting, etc.
| MAQ20-COM2 | Communication via Ethernet, USB or RS-232 |
| MAQ20-COM4 | Communication via Ethernet, USB or RS-485 |
