3330, AC LVDT Panel Instrument
The 3330 is an instrument featuring signal conditioning, indicator display and HI/LO limit detection. It is designed to accept signals from a LVDT sensor or reluctance transducer.
Features:
- Panel Mount Signal Conditioner, Indicator & Control System
- AC LVDT Inputs
- Analog Outputs
- Analog Peak Capture (Option)
- 4 - 20 mA Current Output (Option)
- Nominal 230 V AC Operation (Option)
Manufacturer: Daytronic Corp.
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
3330 - Specifications
| Input Type | LVDT |
| No. of Inputs | 1 |
| Output Type | DC Voltage |
| DC Current | |
| Relay | |
| Supply Power | 12 V DC |
| 105 - 135 V AC | |
| 210 - 260 V AC |
3330 - Models & Accessories
Models
| 3230 | Signal Conditioner, Indicator |
| 3330 | Signal Conditioner, Indicator, Limit Control |
| 3130 | Signal Conditioner |
3330 - Downloads
3330 AC LVDT Panel Instrument Datasheet |
3330 - Similar Products
- Panel Mounted Amplifier & Indicator
- Potentiometer or Strain Gauge Inputs
- 1 Analog Output
- Range of Mathematical Functions
- Simple Trimpot Controls
| Input Type | Strain Gauge, LVDT |
| No. of Inputs | 1 |
| Excitation | 5 V DC, 15 V DC |
| Output Type | DC Voltage, DC Current, Relay |
| Supply Power | 120 - 240 V AC |
- Panel Mounted Amplifier & Indicator
- 4 LVDT or Strain Gauge Inputs
- 1 Analog Output
- RS-232 Interface
- RS-485 Interface (Option)
- Relay Outputs (Option)
- Range of Mathematical Functions
- Simple Trimpot Controls
| Input Type | Strain Gauge, LVDT |
| No. of Inputs | 4 |
| Output Type | DC Voltage, DC Current, Relay |
| Interface | RS-232/485 |
| Supply Power | 5 V DC, 12 - 24 V DC, 115 - 230 V AC |

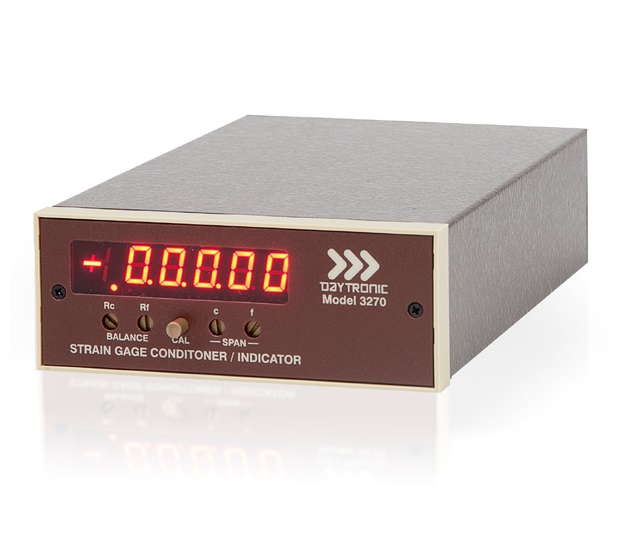

- Panel Mount Signal Conditioner, Indicator & Control System
