3370, DC Strain Gauge Panel Instrument
The 3370 is an instrument featuring signal conditioning, indicator display and HI/LO limit detection. It is designed to accept DC Strain Gauge signals.
Features:
- Panel Mount Signal Conditioner, Indicator & Control System
- DC Strain Gauge Inputs
- Analog Outputs
- Remote Bridge Sensing & Regulation
- Active Low-Pass Filtering
- True Differential Input
- Analog Peak Capture (Option)
- 4 - 20 mA Current Output (Option)
- Nominal 230 V AC Operation (Option)
Manufacturer: Daytronic Corp.
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
3370 - Specifications
| Input Type | Strain Gauge |
| No. of Inputs | 1 |
| Excitation | 5 V DC |
| 10 V DC | |
| Output Type | DC Voltage |
| DC Current | |
| Relay | |
| Supply Power | 12 V DC |
| 105 - 135 V AC | |
| 210 - 260 V AC |
3370 - Models & Accessories
Models
| 3170 | Signal Conditioner |

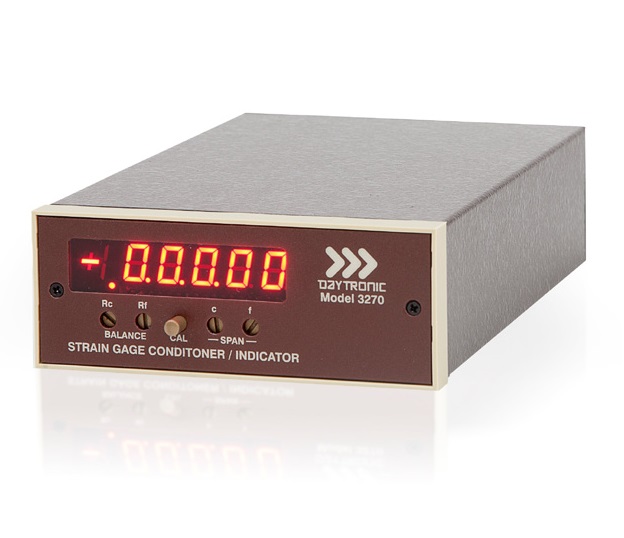

| 3270 | Signal Conditioner, Indicator |
| 3370 | Signal Conditioner, Indicator, Limit Control |
3370 - Downloads
3370 DC Strain Gauge Panel Instrument Datasheet |
