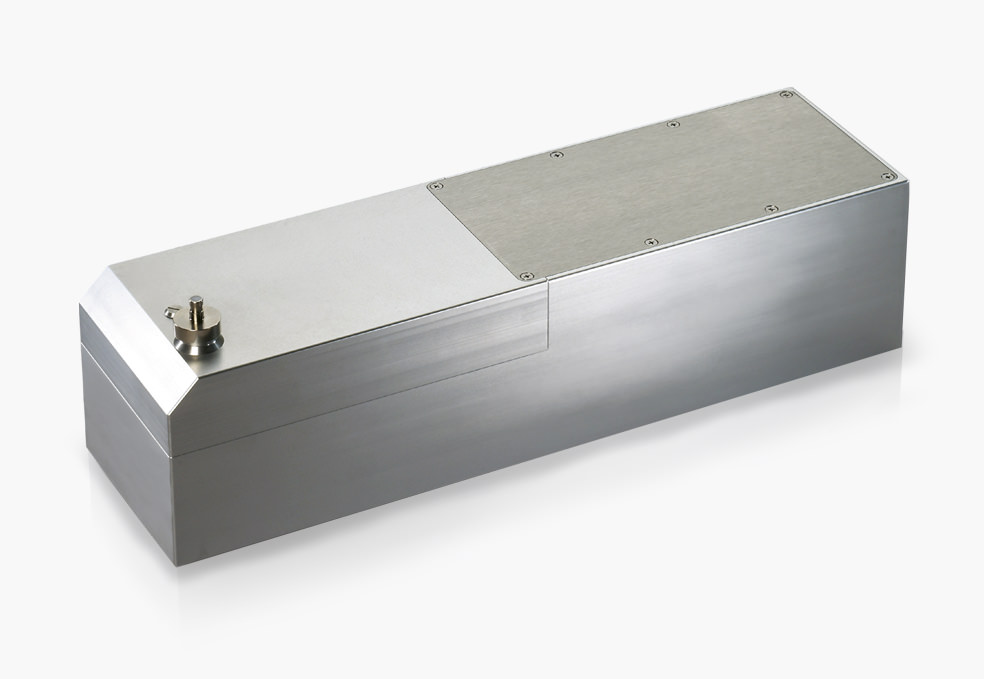

MTC-AW-FS, EMFR Weigh Cell

Features:

Weighing range up to 1 g
Additive dead load range up to 5 g
Active Vibration Compensation (AVC)
High or flat type structured shape
Binary I/O channels with customer-specific functions
Interface 1: CAN or RS 422
Interface 2: RS 232 for service and configuration
Anodized Aluminum Housing
Protection class up to IP 31
Settling Time: < 1500 ms
Settling Time: < 200 ms (model MTC-AW-1/5-FS only)
Sampling Rate: 1 ms
Compact

Manufacturer: Wipotec Gmbh

Quote

Datasheet

Description

Specifications

Models & Accessories

Downloads

MTC-AW-FS - Description

The series MTC-AW-FS Weigh Cells cover the weighing range up to 1 g. They have been specifically designed as compact sensor components and are especially suited for applications in the pharmaceutical industry.

The Weigh Cell comes standard equipped to supply final weighing values via a CAN interface as ready to connect modular components. The integrated software filters can be configured multifunctional, enabling optimal adaptation of the weighing system to the respective ambient conditions. The Weigh Cells extensive command set facilitates simplified control engineering integration.

MTC-AW-FS - Specifications

Type	Weigh Cell
Full Scale	0.25 g
	0.5 g
	1 g
Dead Load	1 g
	2.5 g
	5 g
Interface	RS232
	RS422
	CANbus
	Binary I/O
	Bus Operation
Linearity	0.000001 g
	0.000002 g
	0.00001 g
Resolution	0.000001 g
	0.000002 g
	0.00001 g
	0.00002 g
IP Rating	IP31

MTC-AW-FS - Models & Accessories

Models

MTC-AW-0.5/2.5-FS	Weigh Range 0.5 g, Dead Load 2.5 g
MTC-AW-0.25/1-FS	Weigh Range 0.25 g, Dead Load 1 g
MTC-AW-1/5-FS	Weigh Range 1 g, Dead Load 5 g
