SCMPB02, isoLynx Analog I/O Expansion
- 16 Module Slots
- 16 Analog I/O Channels
- Expandable with SCMPB02/06 to 60 Analog I/O Channels

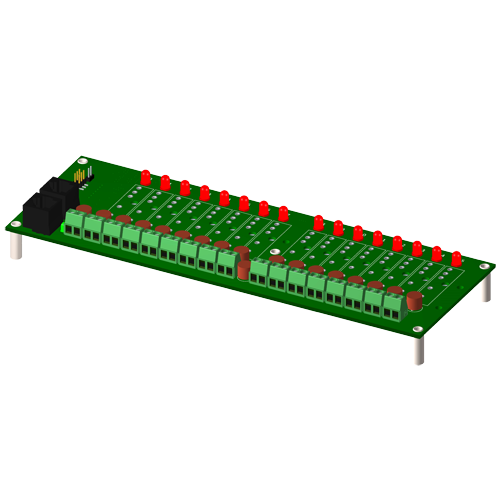

- Expandable with SLX101 to 128 Digital I/O Channels
- 1500 Vrms Isolation
- Panel or DIN Rail Mount
- CE Compliant

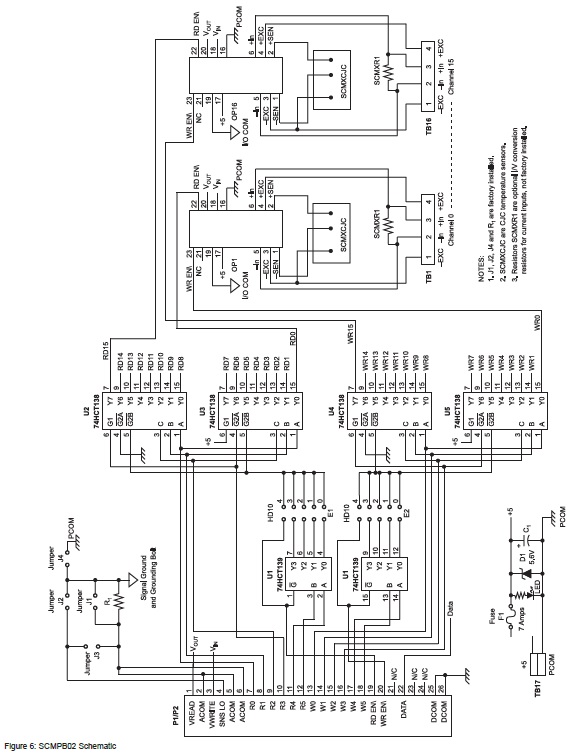

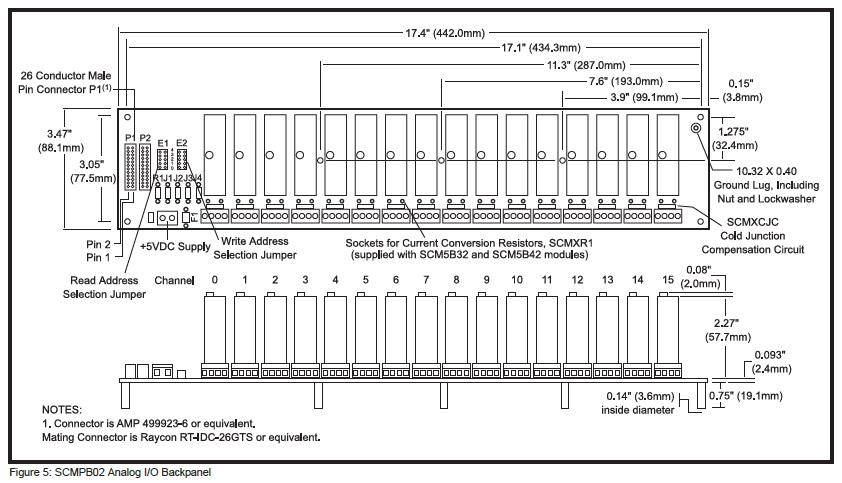

The SCMPB02 16-channel backpanel (Figure 5) can accept any of the SCM5B analog modules in any mixture. It can be mounted on the SCMXRK-002 19-inch metal rack. The SCMPB02 has two analog buses; one for analog input and one for analog output. This two-bus configuration takes advantage of the switch controlled outputs on the input modules and the track-and-hold inputs on the output modules. A temperature sensor is mounted on each channel to provide cold junction compensation for thermocouple input modules (see Figure 6 for schematic). Field connections are terminated with four screw terminals at each module site. Up to four SCMPB02 backpanels may be daisy-chained. Use SCMXCA004-XX cable for daisy chaining and connecting to host computer.
Family | Dataforth isoLynx |
Unit Type | Module |
Slots | 16 |
Max Throughput | 3.6 kS/s |
Resolution | 16-bit |
Min Temperature | -40 °C |
Max Temperature | 85 °C |
SCMPB02 | 16 Channel, Analog I/O Backpanel |
SCMPB02-1 | 16-channel backpanel without cold junction compensation circuits and standoffs for mounting. |
SCMPB02-2 | 16-channel backpanel with DIN rail mounting option. The backpanel is mounted on a plate which is captured by the SCMXBExx DIN rail mounting elements. |
SCMPB02-3 | 16-channel backpanel without cold junction compensation circuits and with DIN rail mounting option. |
