TV1000, Shibaura_Toshiba 6-Axis, Vertical Articulated Robot
This technology is based upon the clean, quick and high performance level of the SCARA but with the full movement of 6 axes.
Features:
- High Rigidity
- High Durability
- Fast Cycle Time
- Light Weight Design
- User Friendly Software
- Standard Cycle Time 0.6 Sec
Manufacturer: Shibaura Machine Co. Ltd. - TM Robotics
Quote
Datasheet
Description
Specifications
Applications
Downloads
Similar Products
TV1000 - Description
The Shibaura TV1000 Robot has a total arm length of 1000mm, a reach of 1090mm and a composite maximum speed of 9.61 metres per second. The robot has a maximum cycle time of 0.6 seconds, repeatability of ±0.03mm and a maximum payload of five kilograms. The new six axis robot uses an absolute position detection system, with a robust AC motor at its heart.
TV1000 - Specifications
| Type | 6 Axis |
| Number of Axis | 6 |
| Arm Length | Full Length 1000 mm |
| Maximum Speed | 9610 mm/sec (Axis 1 and 2 composite) |
| Maximum Payload Mass | 5 kg (rated 2 kg) |
| Controllers | TS3100 |
TV1000 - Applications
The Shibaura TV1000 Robot can be used in a host of pick and place applications such as machine loading, unloading and assembly.
TV1000 - Downloads
TV1000_TS3100 Datasheet |
TV1000.dxf Drawings |

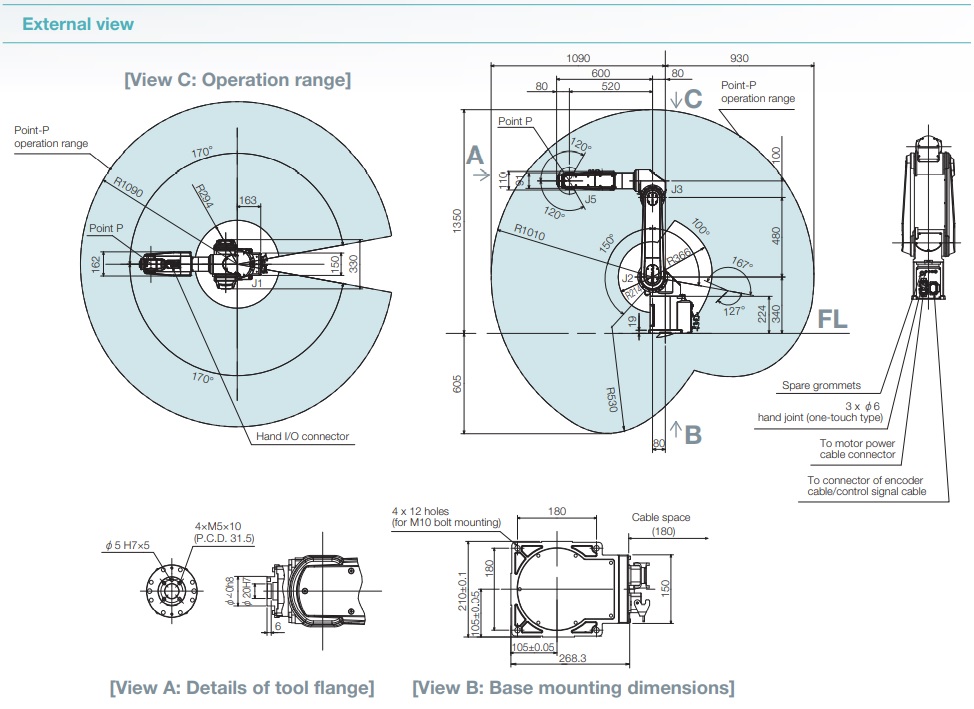

TV1000 System Robot Outline Drawings |
TV1000_Outline.stp Drawings |
SCARA Lineup Brochure |
