TVL500, Shibaura_Toshiba 6-Axis, Vertical Articulated Robot
This brand new light weight compact Robot offers high performance and productivity in assembly, as well as pick and place applications in compact spaces.
Features:
- Tap holes provided on four locations
- Alternative Installations (Side Mounted)
- 1st arm equipped with T-groove as standard
Manufacturer: Shibaura Machine Co. Ltd. - TM Robotics
Quote
Datasheet
Description
Specifications
Applications
Downloads
Similar Products
TVL500 - Description
The TVL500 Six-Axis Robot with a reach of 602mm and a payload of 3kg really packs a punch as it delivers a high speed, highly accurate, energy saving performance at a low cost. It also saves on space delivering all of the functionality that you would insist on from a Six-Axis Robot, but with a fraction of the expected foot-print within your production line.

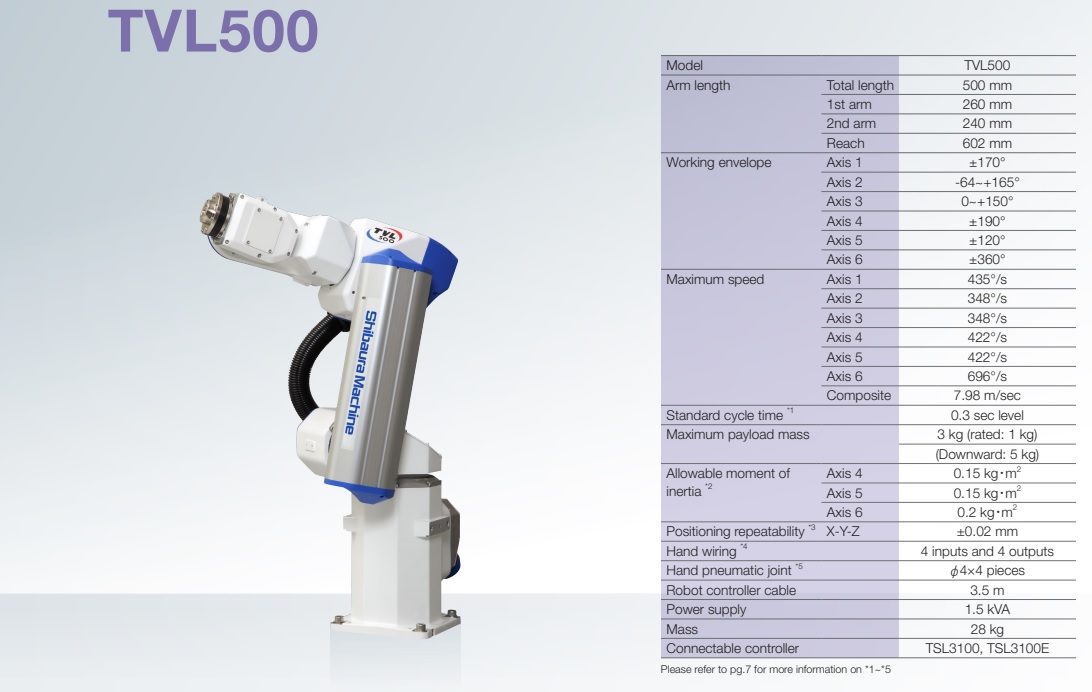

TVL500 - Specifications
| Type | 6 Axis |
| Number of Axis | 6 |
| Arm Length | Full Length 500 mm |
| Maximum Speed | 8000 mm/sec (Axis 1 and 2 composite) |
| Maximum Payload Mass | 3 kg |
| Positioning Repeatability | ±0.02 mm |
| Power Supply | 1.5 kVA |
| Controllers | TS3100 |
TVL500 - Applications
The brand new Shibaura TVL500 is a light weight, compact vertically articulated Six-Axis Robot. It offers high performance and productivity on all assembly and pick-and-place applications, because of its compact size.
TVL500 - Downloads
TVL500 Datasheet |
TVL500 Catalog Brochure |

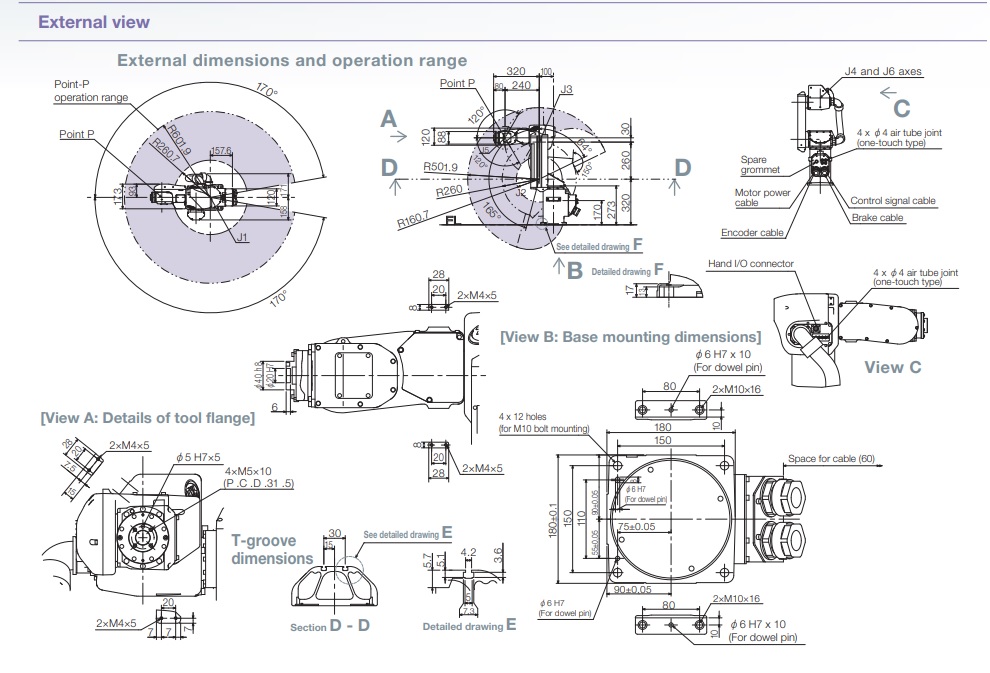

TVL500 Drawing, stp File Drawings |
TVL500 Drawing, dxp file Drawings |
