3KPLUS-30, AC LVDT Panel Mount Meter

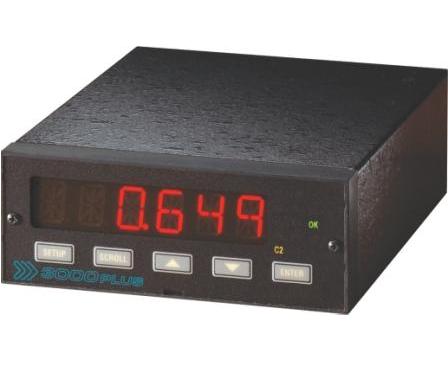

The 3KPLUS-30 panel meter incorporates the 5D30 signal conditioner modules. It is a field-scalable indicator featuring operator-programmable signal processing and PC/PLC communications.
Features:
- Panel Mount Display, Control & Interface
- 5D30 AC LVDT Module Input
- 3 Analog Outputs
- Range of Mathematic Functions
- RS-232 Interface
- 16-bit Sampling Resolution
- Remote Excitation Sensing & Regulation
- Configurable Low-Pass Filtering
- Analog Peak Capture (Option)
- 4 - 20 mA Current Output (Option)
- Nominal 230 V AC Operation (Option)
Manufacturer: Daytronic Corp.
Quote
Datasheet
Specifications
Downloads
Similar Products
3KPLUS-30 - Specifications
| Input Type | LVDT |
| No. of Inputs | 1 |
| Output Type | DC Voltage |
| DC Current | |
| Relay | |
| Interface | RS-232/485 |
| Supply Power | 24 V DC |
3KPLUS-30 - Downloads
3KPLUS-30 AC LVDT Panel Mount Meter Datasheet |
3KPLUS-30 - Similar Products
- Panel Mounted Amplifier & Indicator
- 4 LVDT or Strain Gauge Inputs
- 1 Analog Output
- RS-232 Interface
- RS-485 Interface (Option)
- Relay Outputs (Option)
- Range of Mathematical Functions
- Simple Trimpot Controls
| Input Type | Strain Gauge, LVDT |
| No. of Inputs | 4 |
| Output Type | DC Voltage, DC Current, Relay |
| Interface | RS-232/485 |
| Supply Power | 5 V DC, 12 - 24 V DC, 115 - 230 V AC |
- Panel Mount Indicator
- Thermocouple or RTD Inputs
- Protection Class: IP65
- RS-232/485 Interface (Option)
- Isolated Relay Output (Option)
- Isolated Analog Output (Option)
- Low AC/DC Power Supply (Option)
- Overvoltage Protection
| Input Type | Thermocouple/RTD |
| No. of Inputs | 1 |
| Output Type | DC Voltage, DC Current, Relay |
| Interface | RS-232/485 |
| Supply Power | 9 - 32 V DC, 8 - 28 V AC, 85 - 250 V AC |
| IP Rating | IP65 |
- Digital Display Indicator
- Analog or Frequency Input
- Range of Mathematic Functions
- Protection Class: IP65
- RS-232/485 Interface (Option)
- Analog Outputs (Option)
- Relay Outputs (Option)
- Linearization of up to 16 Steps
| Input Type | DC Voltage, DC Current |
| No. of Inputs | 1 |
| Excitation | 10 V DC, 12 V DC, 24 V DC |
| Output Type | DC Voltage, DC Current, Relay |
| Interface | RS-232/485 |
| Supply Power | 11 - 36 V DC, 85 - 250 V AC |
- Panel Mounted Indicator
- 1 Strain Gauge Input
- 2 Logic Inputs
- 2 Relay Outputs, 4 Additional Optional
- 1 Analog Output, 16-bit (Option)
- RS-232/485 Interface
- Profibus Interface (Option)
- Range of Mathematical Functions
| Input Type | Strain Gauge |
| No. of Inputs | 1, 2, 3, 4, 5, 6, 7, 8 |
| Excitation | 5 V DC |
| Output Type | DC Voltage, DC Current, Relay |
| Interface | RS-232/485, Profibus |
| Supply Power | 12 - 24 V DC |
- Panel Mount Indicator
- Quadrature Encoder Inputs
- Protection Class: IP65
- RS-232/485 Interface (Option)
- Isolated Relay Output (Option)
- Isolated Analog Output (Option)
- Low AC/DC Power Supply (Option)
- Overvoltage Protection
| Input Type | Encoder |
| No. of Inputs | 1 |
| Excitation | 5 V DC, 10 V DC, 24 V DC |
| Output Type | DC Voltage, DC Current, Relay |
| Interface | RS-232/485 |
| Supply Power | 9 - 32 V DC, 8 - 28 V AC, 85 - 250 V AC |
