PHT860, Sub Miniature Pressure Transducer for High Temperature
Operating from –40 up to +175°C, the PHT860 series is dedicated to high temp. pressure measurements. With stainless steel wetted parts, it is compatible with most media, including corrosive fluids used in automotive, aerospace & energy industries.
Features:
- Operating from -40 to +175°C
- Large Bandwidth
- Ultra light sensor : 3 grams
- Available with 0.5-4.5Vdc output
Manufacturer: EFE Sensors
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
PHT860 - Description
Operating from –40 up to +175°C, the PHT860 series is dedicated to high temperature pressure measurements. With stainless steel wetted parts, it is compatible with most media, including corrosive fluids used in automotive, aerospace and energy industries. Equipped with the premium thin film technology developed by EFE, its performances and stability over wide temperature range are excellent. The PHT860 is available with unamplified output (mV/V), compensated in temperature to deliver the best accuracy. Amplified output (Vdc) is also standard, thanks to a high performance and ruggedized built-in electronic module.
PHT860 - Specifications
| Type | Ultra Miniature |
| Operational Mode | Absolute |
| Sealed Gauge | |
| Vented Gauge | |
| Full Scale | 15 psi |
| 30 psi | |
| 75 psi | |
| 150 psi | |
| 300 psi | |
| 500 psi | |
| 1000 psi | |
| 2000 psi | |
| 3000 psi | |
| Output | 1.5 mV/V |
| 4.5 V DC | |
| 5 V DC | |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC |
| 8 - 16 V DC | |
| 15 V DC | |
| Material | Stainless Steel |
| Thread | M5 x 0.8 |
| Min Temperature | -30 °C |
| Max Temperature | 175 °C |
PHT860 - Applications
Areas of application include:
- Automotive - on vehicle
- Aerospace
- Test benches
- Instrumentation
PHT860 - Models & Accessories
Models
| PHT861 | Power supply: 5 to 15Vdc; Output Signal: mV/V |
| PHT863 | Power supply: 5Vdc ± 10mV; Output Signal: 0.5-4.5Vdc regulated power supply |
| PHT867 | Power supply: 8 to 16Vdc; Output Signal: 0.5-4.5Vdc unregulated power supply |
PHT860 - Downloads
PHT861 Sub-Miniature High Temperature Pressure Sensor Datasheet |
PHT863 Sub-Miniature High Temperature Pressure Sensor Datasheet |
PHT867 Sub-Miniature High Temperature Pressure Sensor Datasheet |

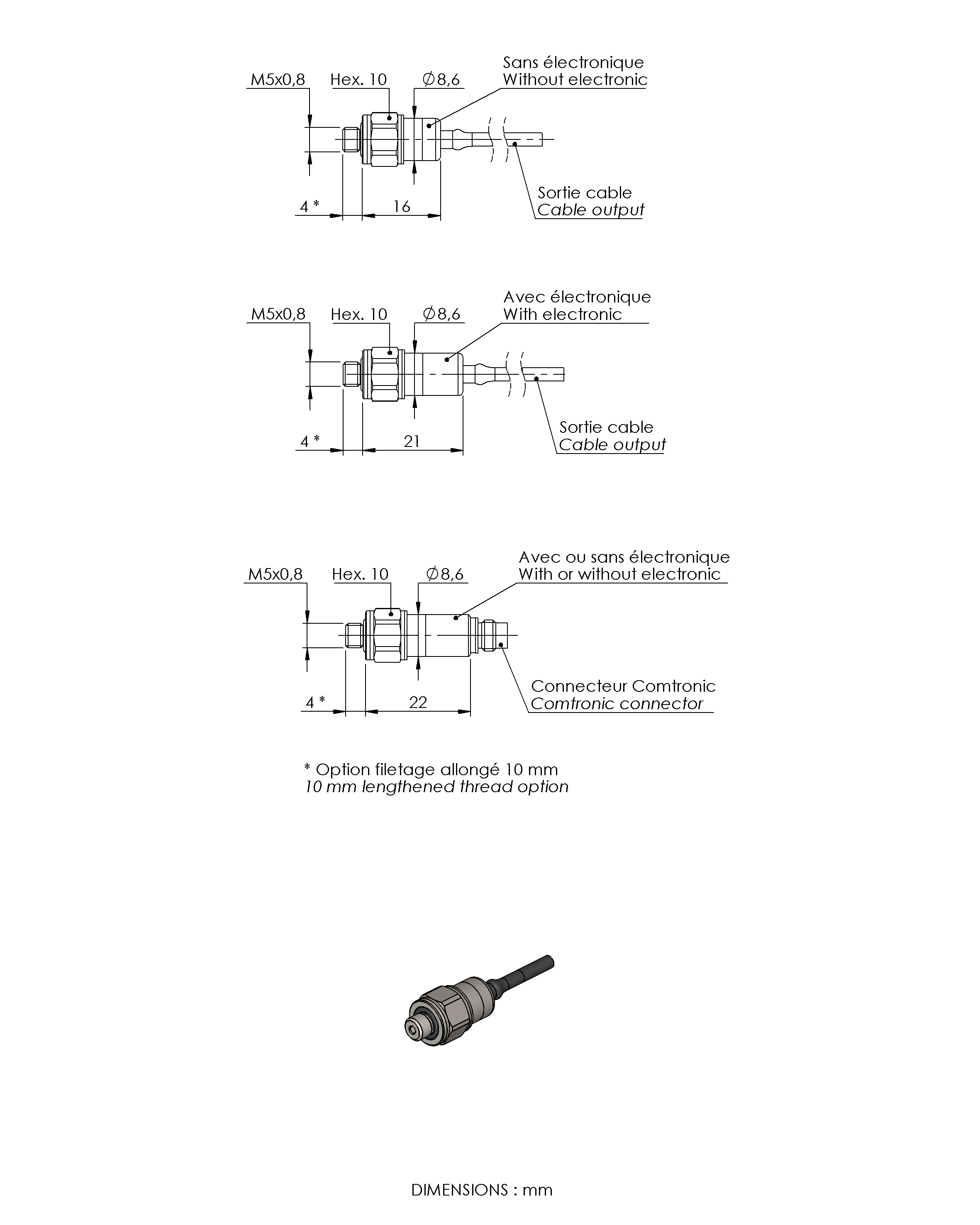

PHT860 3D Drawing Drawings |
PHT860 - Similar Products
- Outputs available: mV/V, 0.5-4.5Vdc or 0-5Vdc
- Operating Temperature: from -40 to +140°C
- Ultra light weight: < 10 grams
- Wide Bandwidth
- M5x0.8-6g male Thread
| Type | Miniature, Ultra Miniature |
| Operational Mode | Absolute, Sealed Gauge, Vented Gauge |
| Full Scale | 11 - 16 psi, 15 psi, 30 psi, 75 psi, 150 psi, 300 psi, 500 psi, 750 psi, 1000 psi, 3000 psi |
| Output | 1.5 mV/V, 4.5 V DC, 5 V DC |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC, 8 - 16 V DC, 10 - 30 V DC, 15 V DC |
- Available with 0,5-4,5Vdc output
- Designed for harsh environment
- Operating from -40 to +175°C
- Ultra light : < 5 grams
| Type | Miniature, Ultra Miniature |
| Operational Mode | Absolute, Sealed Gauge, Vented Gauge |
| Full Scale | 15 psi, 25 psi, 50 psi, 100 psi, 300 psi, 500 psi, 1000 psi, 3000 psi |
| Output | 1.5 mV/V, 4.5 V DC, 5 V DC |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC, 8 - 16 V DC, 15 V DC |
- Pressure ranges from 15 psi up to 3000 psi, (-1 to 250bar)
- Available with 0.5-4.5Vdc output
- Operating from -40 to +125°C
- Ultra light sensor : 3 grams
| Type | Ultra Miniature |
| Operational Mode | Absolute, Sealed Gauge, Vented Gauge |
| Full Scale | 15 psi, 50 psi, 75 psi, 100 psi, 150 psi, 300 psi, 500 psi, 1000 psi, 3000 psi |
| Output | 1.5 mV/V, 4.5 V DC, 5 V DC |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC, 8 - 16 V DC, 15 V DC |
- Available with 0.5-4.5Vdc output
- Operating from -40 to +140°C
- Designed for harsh environment
- Large Bandwidth
- M5x0.8, M8x1,M10x1 male Threads available
| Type | Miniature |
| Operational Mode | Absolute, Sealed Gauge, Vented Gauge |
| Full Scale | 11 - 16 psi, 15 psi, 30 psi, 75 psi, 150 psi, 300 psi, 500 psi, 1000 psi, 2000 psi, 3000 psi, 5000 psi |
| Output | 1.5 mV/V, 4.5 V DC |
| Precision | ±0.10 % FS, ±0.25 % FS |
| Excitation | 5 V DC, 8 - 16 V DC |
- Available with 0.5-4.5Vdc output
- Operating from -40 to +140°C
- Ultra light sensor: 3 grams
- Large Bandwidth
| Type | Ultra Miniature |
| Operational Mode | Absolute, Sealed Gauge |
| Full Scale | 50 psi, 73 psi, 145 psi, 290 psi, 1015 psi, 580 psi, 3626 psi |
| Output | 1.5 mV/V, 4.5 V DC |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC |
