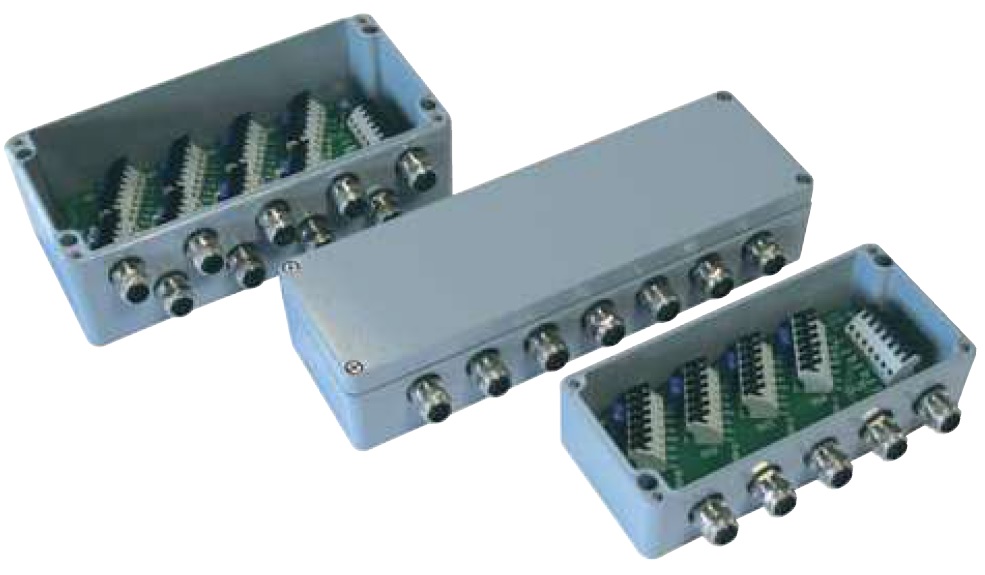

ALCJB-A 4/6, Load Cell Summing Box
ALCJB series Summing Boxes, offer a convenient connection of 2, 3, 4, 5 or 6 Load Cells providing 1 output signal, representing the total Load of all Load Cells.
Features:
- Spring Loaded Input & Output Terminals
- Painted aluminum box, IP65 protection
- Versions for 4, 6, 8 load cells wiring
- Corner balancing by potentiometers
- Tool Free connection by spring clamps
- Over-voltage protection in option
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Related Products
ALCJB-A 4/6 - Description
Scaime offers a number of junction boxes and accessories to accompany their Sensors and Instrumentation. The ALCJB series offers a convenient connection of 2, 3, 4, 5 or 6 Load Cells whereby the outputs of each Sensor needs to be summed into 1 Total Load Signal.
Each of the Load Cells can be trimmed to provide a normalized signal that allows the weigh or Force on each Sensor to represent the same measurement.
The resulting output Load Signal can be measured, transmitted and/or displayed by a number of Scaime complimenting products.
In addition to these Summing Boxes, we have a range of accessories for mechanical mounting of the Load Cells, digitizing the signals, controlling the weighing / Batch / Dispensing Processes and recording the data.
ALCJB-A 4/6 - Specifications
| # of Inputs | 4 |
| Excitation | 0 - 12 V DC |
ALCJB-A 4/6 - Applications
Various weighing applications such as truck and tank weighing.
ALCJB-A 4/6 - Models & Accessories
Models
| ALCJB-A 4/6 | Load Cell Summing Box |

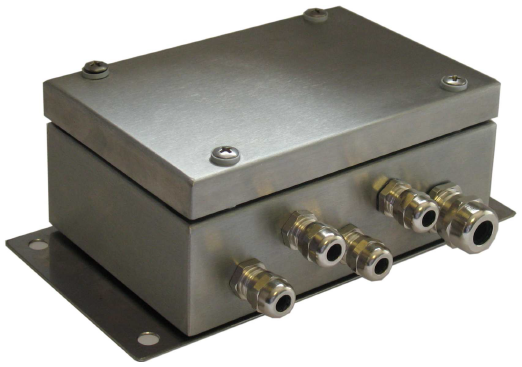

| ALCJB-X4 Junction Box | 4 Input Junction Box / Enclosure |

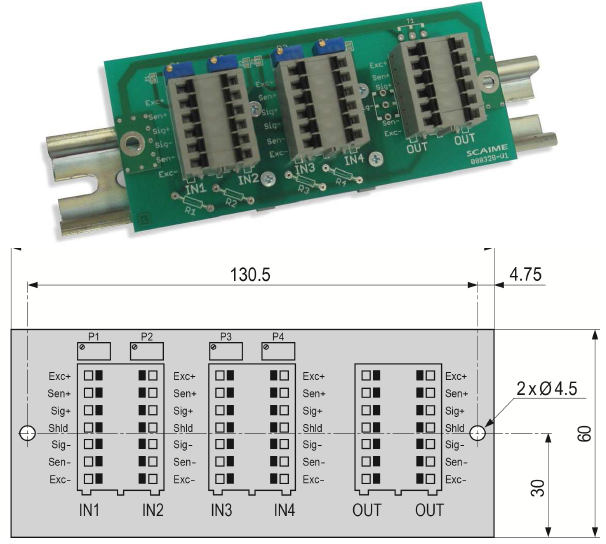

| ALCJB-D4 Junction Board | 4 input Junction Board , DIN Rail Mount |
ALCJB-A 4/6 - Downloads
ALCJB 4,6 Datasheet |
ALCJB-A 4/6 - Related Products
- The CPJ is able to run up to 4 Strain Gauge load cells (350 ohm)
- 4 or 6 wire load cells ( power for up to 4 sensors)
- Excitation - Selectable
- Voltage output (±10 Vdc or 0-10 Vdc) and current output (4-20 mA)
- Shunt Calibration signal
- 2 set points on Relays optional version CPJ2S
- IP65 Housing option (CPJ model ONLY)
- Din rail mount
| Input Type | Potentiometer, Strain Gauge |
| # of Inputs | 1 |
| Output Type | 0 - 10 V DC, ±10 V DC, 4 - 20 mA |
| Isolation | Yes |
| Supply Power | 20 - 28 V DC |
| IP Rating | IP 65 |
- Powerful built in programmable filters for digital smoothing
- Static, Dynamic measurement
- Fully configurable with eNodView software (freeware)
- Operation with or without PLC, Standalone or modular
- Simultaneous local HMI & PLC communication
- Ethernet/IP and Field Bus options
- 24 bit A/D, for 1:100,000 resolution
- Supplies up to 8 strain gage load cells (350 Ohm)
The eNod4-T provides physical or theoretical weighing calibration, 4 set point management. It offers high resolution, fast response and flexible communication for Hopper, Silo & Tank Level Weighing.
- Fully configurable with eNodView software
- Operation with or without PLC
- Standalone or modular
- Supplies up to 8 strain gage load cells (350 Ohm)
- Ethernet/IP and Field Bus
- Simultaneous HMI & PLC communication
- Optional HMI-eNodTouch
- USB link for PC; RS485 for HMI

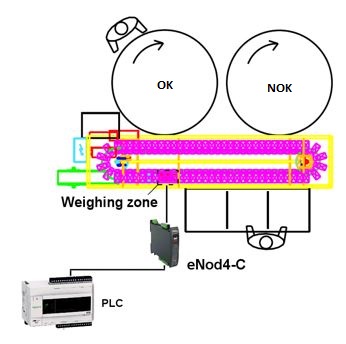

The eNod4-C automatically checks and calculates moving weight, applies tolerance to sorting.
It offers high resolution, fast response and flexible communication.
- Powerful built in programmable filters for digital smoothing
- Static, Dynamic measurement
- Fully configurable with eNodView software (freeware)
- Operation with or without PLC
- Standalone or modular
- Supplies up to 8 strain gauge load cells (350 Ohm)
- Ethernet/IP and Field Bus
- Simultaneous HMI & PLC communication
The eNod4-D offers Defects control: Flow rate and dosing limits.
It offers high resolution, fast response and flexible communication.
- Color touch screen for 1 to 6 eNod4-T, C, D, B or F
- Display one selected eNod or all connected eNod4s
- Control and setup of eNod4 applications
- Configuration and weighing system calibration
- Operates simultaneously with the PLC communication link
- Operates with 12 to 28 Vdc Power
| Mounting | Panel Mount |
- eNod4 device configuration and calibration
- Graphical signal visualization & response analysis
- Multilingual EN, FR, DE, IT, CN
- Configuration with or without the device connected
- Export/import configurations
Software for configuration & analysis of eNod4 measurements, providing real-time display, while communicating with the PLC. This is an excellent tool assisting the implementing of Checkweighers, Fillers, Belt Scales, Belt & Loss-in-Weight Feeders.
