DVX-C, Digital Load Cell
The DVX-C Digital Load cell series covers weighing range of 15Kg to 75Kg. They are Hermetically sealed stainless-steel housing with IP68 ratings. The built-in electronics makes them suited for Check-weighing and high-speed dynamic weighing.
Features:
- Hermetically sealed with IP68, IP69K for wash-down
- Controller programmed suited for Check-weigher and high-speed dynamic weighing
- Max. resolution 500 000 pts
- Transmission rate up to 1200 meas./s.
- Digital smoothing by means of digital filtering
- 2 digital inputs and 4 outputs

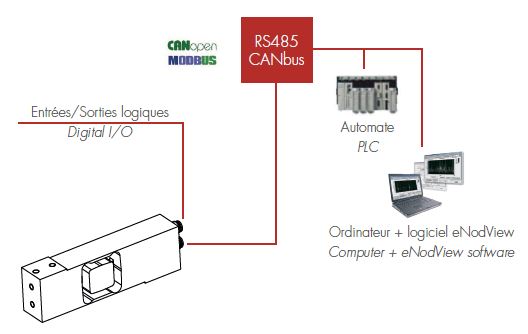

- 1 RS485 output and 1 CAN output
- Supporting Modbus-RTU, SCMbus
- Included software for digital filter and configuration
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Related Products
Similar Products
DVX-C - Description
The DVX-C Digital Load cell series covers weighing range of 15Kg to 75Kg. They are Hermetically sealed stainless-steel housing with IP68 ratings. The built-in electronics makes them suited for Check-weighing and high-speed dynamic weighing.
DVX-C - Specifications
| Type | Weigh Cell |
| Full Scale | 15000 g |
| 30000 g | |
| 75000 g | |
| Interface | RS485 |
| Binary I/O | |
| Modbus-RTU | |
| SCMbus | |
| CANopen | |
| IP Rating | IP68 |
| IP69K |
DVX-C - Applications

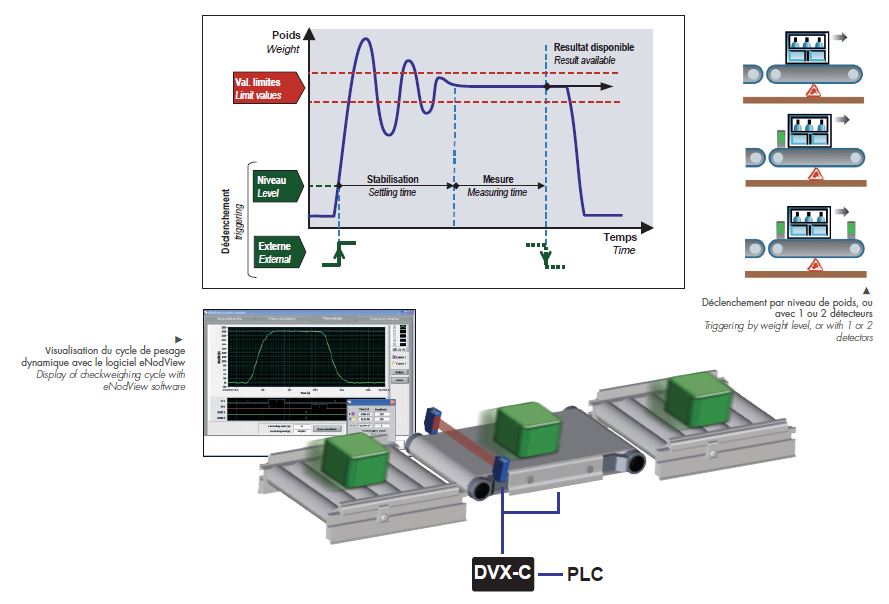

Best suited for Check-weighing and high-speed dynamic weighing.
DVX-C - Models & Accessories
Models
| DVX-C | Digital Single Point Load Cell |
| DVX-D | Digital Single Point Load Cell |
Accessories
| RS-485 to USB Convertor | Allows connection of the Digital Load Cell to eNod-View software |
DVX-C - Downloads
DVX-C Digital Single Point Load Cell Datasheet |
