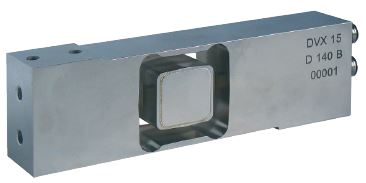

DVX-D, Digital Load Cell
The DVX-D Digital Load cell series covers weighing range of 7.5Kg to 75Kg. They are Hermetically sealed stainless-steel housing with IP68 ratings. The built-in electronics makes them suited for Dosing by Filling or by Unloading
Features:
- Hermetically sealed with IP68, IP69K for washdown
- Controller programmed suited for Dosing by Filling or by Unloading
- Max. resolution 500 000 pts
- Transmission rate up to 1200 meas./s.
- Digital smoothing by means of digital filtering
- 2 digital inputs and 4 outputs
- 1 RS485 output and 1 CAN output
- supporting Modbus-RTU, SCMbus
- Included software for digital filter and configuration
Manufacturer: Scaime
Quote
Description
Specifications
Applications
Models & Accessories
Downloads
Related Products
Similar Products
DVX-D - Description
The DVX-D Digital Load cell series covers weighing range of 15Kg to 75Kg. They are Hermetically sealed with stainless-steel housing and IP68 ratings. The built-in electronics makes them suited for Dosing by Filling or by Unloading.

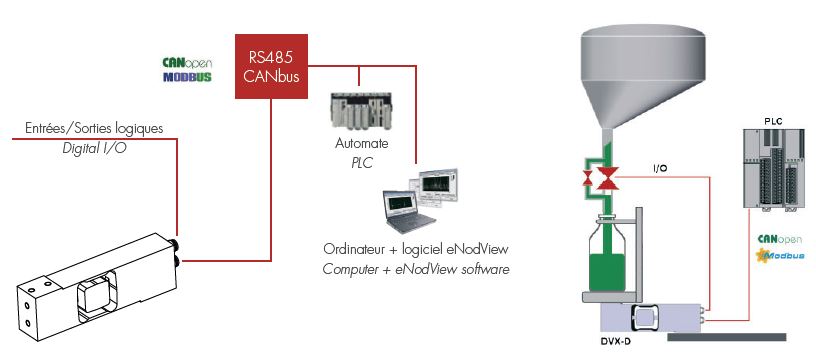

Interface diagram
DVX-D - Specifications
| Type | Weigh Cell |
| Full Scale | 15000 g |
| 30000 g | |
| 75000 g | |
| Interface | RS485 |
| Binary I/O | |
| Modbus-RTU | |
| SCMbus | |
| CANopen | |
| IP Rating | IP68 |
| IP69K |
DVX-D - Applications
Best suited for Dosing By Filling or by Unloading
DVX-D - Models & Accessories
Models
| DVX-D | Digital Load Cell |
| DVX-C | Digital Load Cell |
Accessories
| RS-485 to USB Convertor | Allows connection of the Digital Load Cell to eNod-View software |
DVX-D - Downloads
DVX-D-Digital Single Point Load Cell Datasheet |
DVX-D - Related Products
- eNod4 device configuration and calibration
- Graphical signal visualization & response analysis
- Multilingual EN, FR, DE, IT, CN
- Configuration with or without the device connected
- Export/import configurations
Software for configuration & analysis of eNod4 measurements, providing real-time display, while communicating with the PLC. This is an excellent tool assisting the implementing of Checkweighers, Fillers, Belt Scales, Belt & Loss-in-Weight Feeders.
