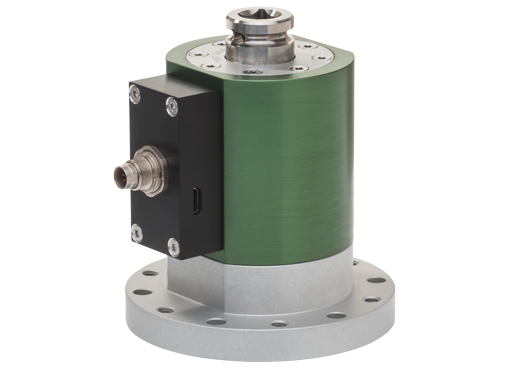

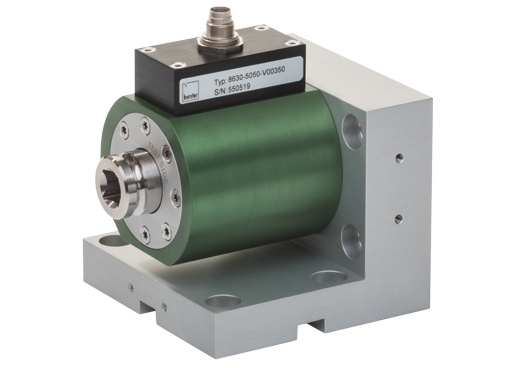

8630, High Precision Torque Sensor
This high-precision torque sensor can be used to perform both static
and dynamic measurements on non-rotating parts. The internal and
external square drive designs for the mechanical adapter make this sensor
especially easy to fit in existing or n
Features:
- Measurement ranges from 0 - 2 Nm to 0 - 200 Nm
- Linearity error from ≤ 0.1 % F.S.
- Output signal ± 10 V / USB / mV/V
- Tare function, filter and average values configurable
Manufacturer: Burster Praezisionsmesstechnik Gmbh
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
8630 - Description
This high-precision torque sensor can be used to perform both static and dynamic measurements on non-rotating parts. The internal and external square drive designs for the mechanical adapter make this sensor especially easy to fit in existing or new screw-fitting applications.
Quality assurance and monitoring of screw-fastening tools are just two applications that can take full advantage of sensor features such as USB port, built-in amplifier and side-load absorbing bearings.
With no rotating parts, this sensor needs no maintenance when used correctly.
8630 - Specifications
| Type | Reaction |
| Full Scale | 2 Nm |
| 5 Nm | |
| 10 Nm | |
| 20 Nm | |
| 50 Nm | |
| 100 Nm | |
| 200 Nm | |
| Output | ±10 V DC |
| Precision | ±0.10 % FS |
| Excitation | 5 V- 10 V DC |
| 10 V DC | |
| IP Rating | IP40 |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
8630 - Applications
Testing screw-fastening tools, Logging data for specified release torques, Measuring the tightening torque of screw connections.
8630 - Models & Accessories
Models
| 8630-5002 | High Precision Torque Sensor, for non-rotating applications |
| 8630-5005 | High Precision Torque Sensor, for non-rotating applications |
| 8630-5010 | High Precision Torque Sensor, for non-rotating applications |
| 8630-5020 | High Precision Torque Sensor, for non-rotating applications |
| 8630-5050 | High Precision Torque Sensor, for non-rotating applications |
| 8630-5100 | High Precision Torque Sensor, for non-rotating applications |
| 8630-5200 | High Precision Torque Sensor, for non-rotating applications |
Accessories
| 8600-Z003 | Flange Adapter, Measurement Ranges 100 Nm & 200 Nm |
8630 - Downloads
8630 Datasheet |
8600-Z003 Flange Adapter Datasheet |
Torque Sensors Brochure |
