8631, High Precision Torque Sensor
This high-precision torque sensor is designed for both static and dynamic measurements on non-rotating parts. The 10mm diameter through-hole can be used to feed parts such as cables or Bowden cables through the sensor.
Features:
- Measuring ranges from 0 - 5 Nm up to 0 - 200 Nm
- Linearity error from ≤ 0,1 % F.S.
- Standardized output signal
- Tare function, filter and average values configurable
- Extremely high, reliable axial load
Manufacturer: Burster Praezisionsmesstechnik Gmbh
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
8631 - Description
The 8631, high-precision torque sensor is designed for both static and dynamic measurements on non-rotating parts. The 10mm diameter through-hole can be used to feed parts such as cables or Bowden cables through the sensor.

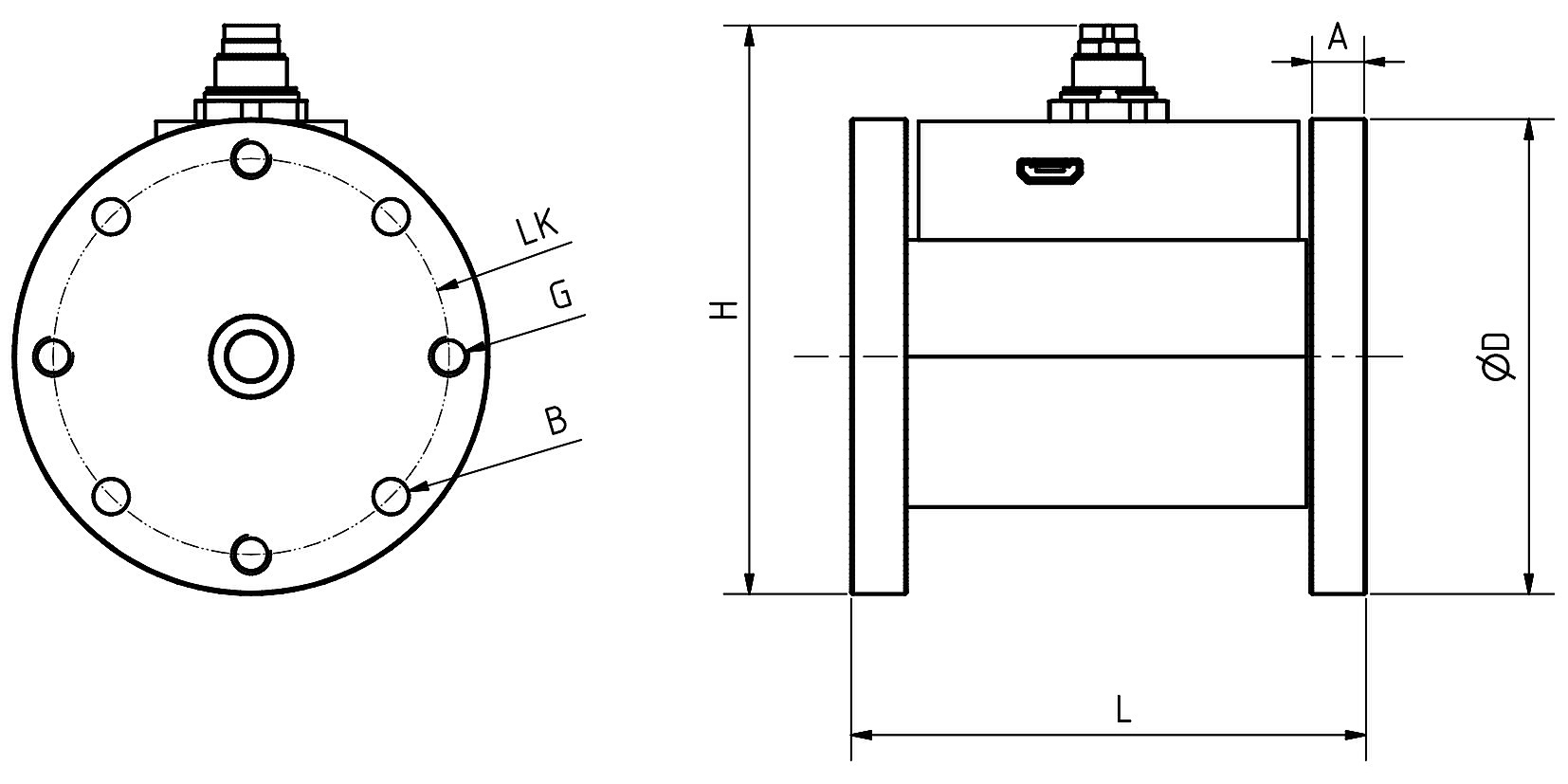

The mounting flanges contain threaded holes and through-holes so that the sensor can be fitted at either end. With no rotating parts, this sensor needs no maintenance when used correctly. The modular design of this strain-gage sensor allows precise configuration for desired applications.
8631 - Specifications
| Type | Reaction |
| Full Scale | 5 Nm |
| 10 Nm | |
| 20 Nm | |
| 50 Nm | |
| 100 Nm | |
| 200 Nm | |
| Output | ±10 V DC |
| Precision | ±0.10 % FS |
| Excitation | 10 V DC |
| IP Rating | IP40 |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
8631 - Applications
- Test setups for precision mechanics
- Measuring reaction torques for motors
- Measuring car-seat adjustment torques
- Measuring operating torques for door release mechanisms
8631 - Models & Accessories
Models
| 8631 | High Precision Torque Sensor for non-rotating applications |
| 8631-5005 | High Precision Torque Sensor for non-rotating applications |
| 8631-5010 | High Precision Torque Sensor for non-rotating applications |
| 8631-5020 | High Precision Torque Sensor for non-rotating applications |
| 8631-5050 | High Precision Torque Sensor for non-rotating applications |
| 8631-5100 | High Precision Torque Sensor for non-rotating applications |
| 8631-5200 | High Precision Torque Sensor for non-rotating applications |
8631 - Downloads
8631 High Precision Torque Sensor Datasheet |
Torque Sensors Brochure |

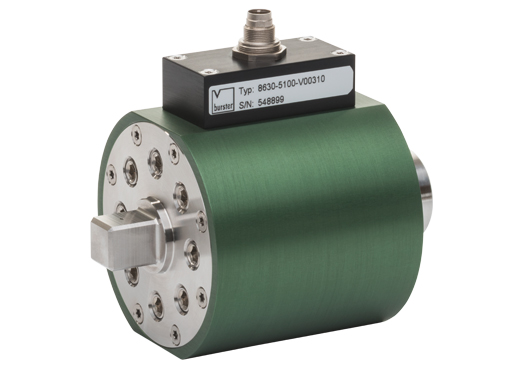

8631 - Similar Products
- Measurement ranges from 0 - 2 Nm to 0 - 200 Nm
- Linearity error from ≤ 0.1 % F.S.
- Output signal ± 10 V / USB / mV/V
- Tare function, filter and average values configurable
| Type | Reaction |
| Full Scale | 2 Nm, 5 Nm, 10 Nm, 20 Nm, 50 Nm, 100 Nm, 200 Nm |
| Output | ±10 V DC |
| Precision | ±0.10 % FS |
| Excitation | 5 V- 10 V DC, 10 V DC |
| IP Rating | IP40 |
