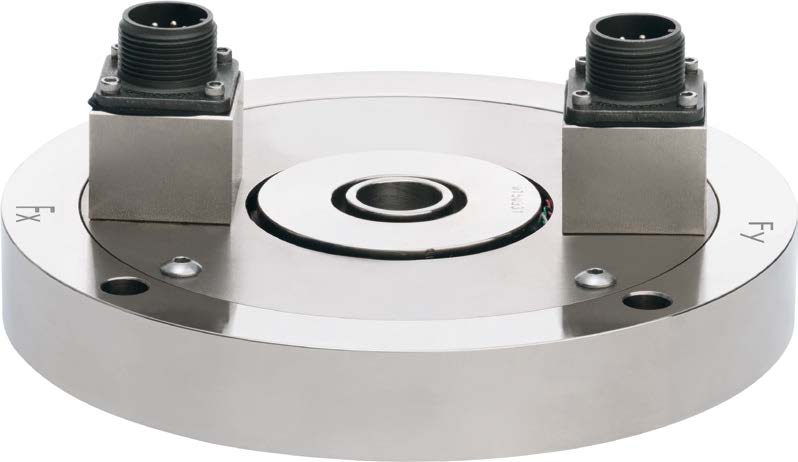

8561, 2-Axis Load Cell, XY Force Sensor
- Measuring ranges:
- 0 ... 4448 N / 0 ... 2224 N (0 ... 1000 lbs / 0 ... 500 lbs)
- 0 ... 8896 N / 0 ... 4448 N (0 ... 2000 lbs / 0 ... 1000 lbs)
- Other measuring ranges are available on request
- Non-linearity < 0.1 % F.S.
- Low cross talk < 0.75 % F.S.
- High dimensional accuracy, because sensor is made from one part
- Excellent price/performance ratio
Due to the 8561`s sensor body made from a block with its special structure, the sensor has a very high degree of dimensional accuracy and low crosstalk between the two forces.
With it`s special design, the sensor has excellent linearity properties and is designed for a long service life in dynamic applications.
The two independent signal connections allow flexible adaptation and further processing.
| Type | Multi-Axis |
| # of Axis | 2 (Fx, Mx) |
| Application | Tension & Compression |
| Full Scale | 1000 lbs |
| 2000 lbs | |
| Output | 2 mV/V |
| Precision | ±0.1 % FS |
| Excitation | 1 V - 10 V DC |

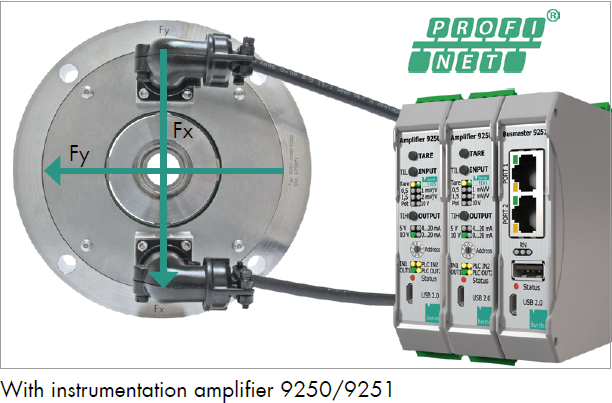

These load cells are based on a strain-gage Wheatstone bridge. This measurement principle means that the output voltage mV/V is highly dependent on the sensor supply voltage. Our website contains details of suitable instrumentation amplifiers, indicator and display devices and process instruments.
Typical application: Uniformity measurement of wheels
A common application is, for example, the detection of the radial and lateral forces on rolling wheels. The sensor, which is suitable for dynamic applications, can be easily integrated into automated test systems and the uniformity of car tires, for example, can be checked and evaluated.
As an option, an additional calibration certificate is available for a second measuring range that is lower. For example, for the measuring range 4448 N ... 2224 N also a calibration certificate for 2224 N ... 1112 N. Depending on the measuring range, this results in a dual range ratio of 1:2.
