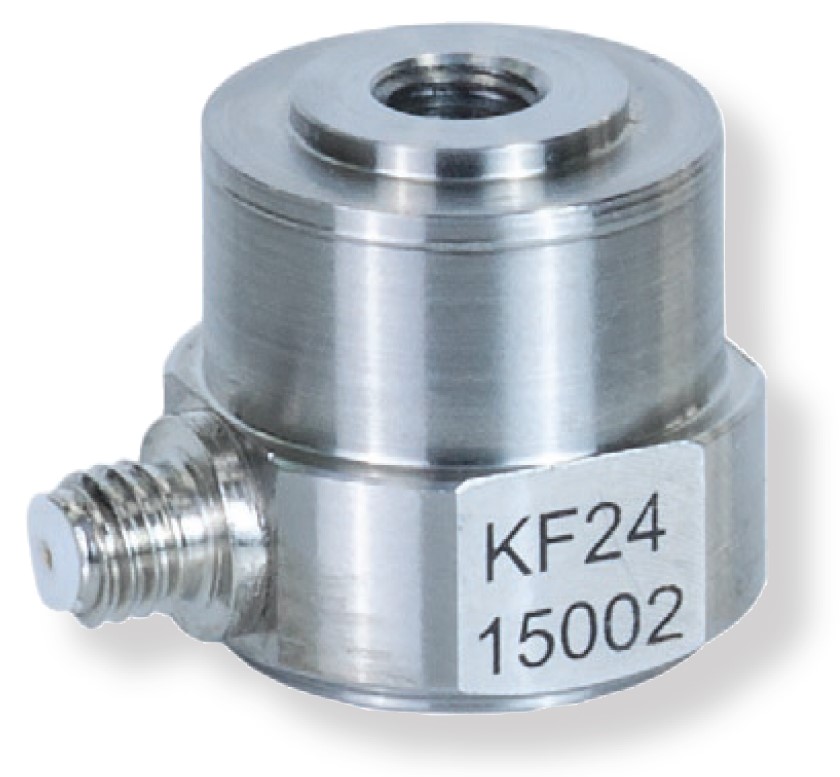

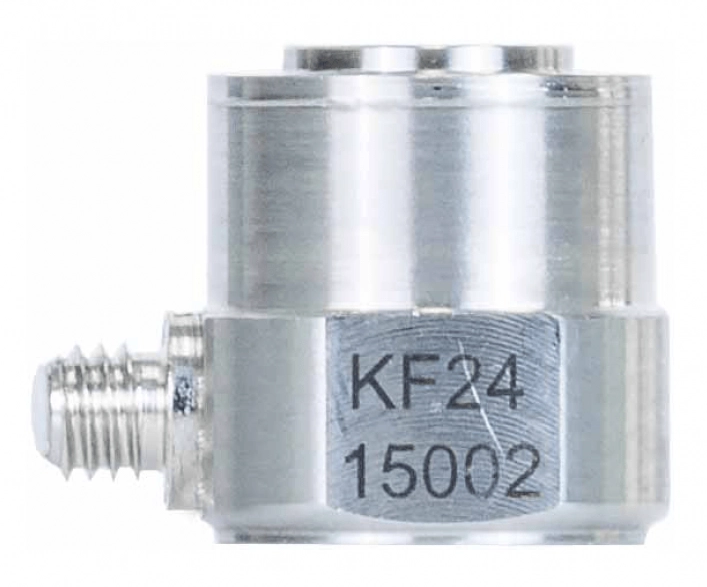

KF24, Piezoelectric Force Transducer
- For dynamic measurement of tensile and compression forces
- Charge output, no external power required
- High sensitivity & Excellent resolution
- 2000 N Range
- Cost effective
The Piezoelectric Force Transducer KF24 is designed for dynamic measurement of both tensile and compression forces, ideal for various testing environments. This transducer features a charge output, requiring no external power for operation. It boasts high sensitivity and excellent resolution, ensuring precise force measurements.
Key specifications include a voltage sensitivity of 200 mV/N and a charge sensitivity of 300 pC/N, with a sensitivity tolerance of 20%. It can handle a compression force of up to 2000 N and a tensile force up to 300 N. Its capacitance without cable is 1000 pF, and it exhibits a rigidity of 4 nm/N. The natural frequency of the transducer is 40 kHz, suitable for high-speed applications.

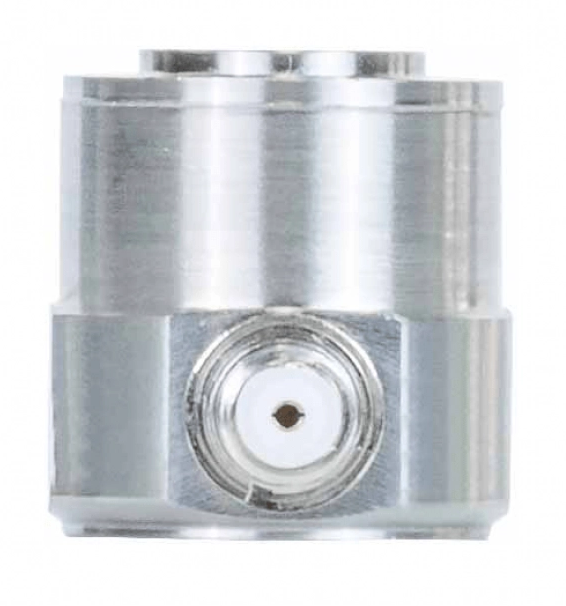

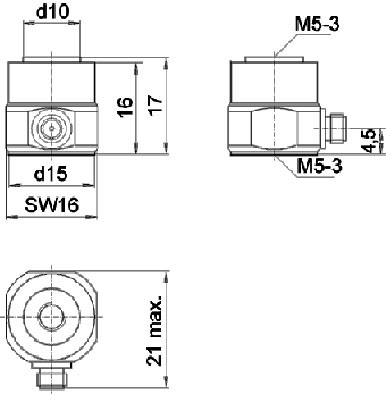

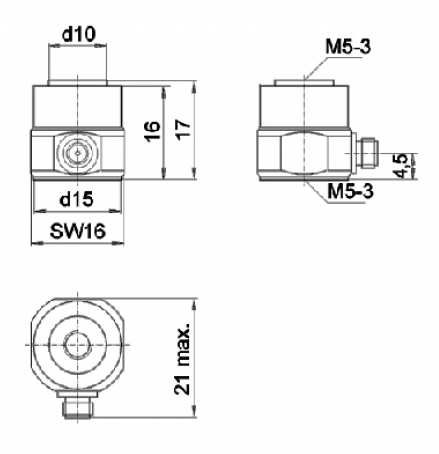

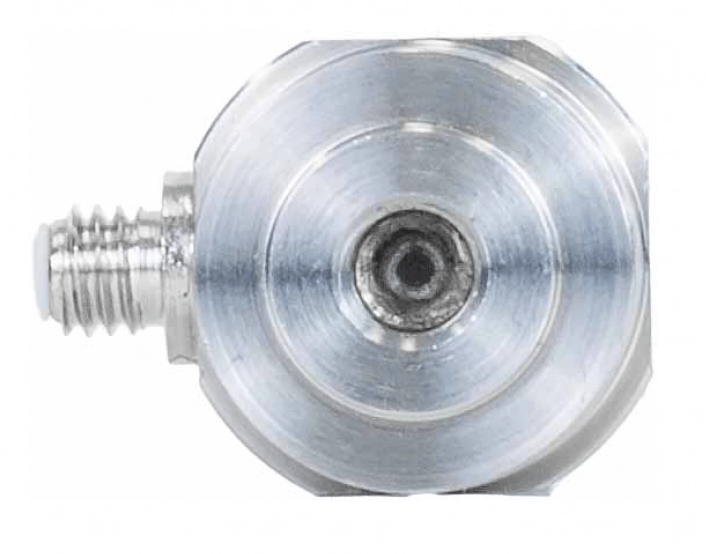

The KF24 operates effectively within a temperature range of -10°C to 80°C and is lightweight at 20 grams without the cable. The coupling mass is 5 grams, and it is encased in stainless steel for durability and resistance to environmental factors. The transducer offers radial connector direction with a standard UNF10-32 connector and includes options for mounting with 2 x M5.
| Type | Piezoelectric |
| Application | Tension & Compression |
| Full Scale | 450 lbs |
| Technology | Voltage Mode (IEPE) |
| Min Temperature | -10 °C |
| Max Temperature | 80 °C |
| 003 | Stud bolt M5 x 8 |
| 009-UNF-BNC-1,5 | Low-noise cable UNF 10-32 / BNC; 1,5 m |
| 009-UNF-UNF-1,5 | Low noise cable UNF 10-32 / UNF 10-32; 1,5 m |
| 010-UNF-BNC-10 | Low-noise cable UNF 10-32 / BNC; 10 m |
| 010-UNF-BNC-5 | low noise, UNF 10-32 to BNC, 5 m, Ø 2,7 mm, 120 °C |
| 016 | Coupler 2 x UNF 10-32 |
| 017 | Adapter UNF 10-32 (fem.) to BNC (male) |
| 025 | Adapter UNF 10-32 to TNC |
| 045 | Stud adapter M5 (male) / UNF 10-32 (male) |
| 046 | Stud adapter M5 (male) / 1/4″-28 (male) |
| 117 | Adapter UNF 10-32 to BNC |
| IEPE100 | Remote Charge Converter |
| M72A1 | Charge Amplifier / IEPE Amplifier |
KF24 Piezoelectric Force Transducer Datasheet |
- Weight 452-460 grams
- Diameter 2.00 in
- Height 1.25 in
- 10-32 axial & radial connector
- 3/8-16 tapped hole top surface
- 11/16-12 integral stem bottom surface
- IEPE (2 to 20 mA, +18 to +30 VDC)
- Stainless steel
| Type | Piezoelectric |
| Application | Tension & Compression |
| Full Scale | 500 lbs, 1000 lbs, 5000 lbs, 10000 lbs, 25000 lbs, 50000 lbs |
| Output | 5 V DC |
| Precision | ±1.0 % FS |
| Excitation | 18 V - 30 V DC |
- Weight 28 grams
- Size (diameter 0.75 in, height 0.62 in)
- 10-32 radial connector
- 1/4-28 mounting hole
- IEPE (2 to 20 mA, +18 to +30 VDC)
- Stainless steel
- General purpose dynamic force measurements
| Type | Piezoelectric |
| Application | Tension & Compression |
| Full Scale | 10 lbs, 50 lbs, 100 lbs, 500 lbs, 1000 lbs, 5000 lbs |
| Output | 5 V DC |
| Precision | ±1.0 % FS |
| Excitation | 18 V - 30 V DC |
- Diameter 0.75 in
- Height 0.62 in
- 10-32 axial connector
- 1/4-28 mounting hole
- IEPE (2 to 20 mA, +18 to +30 VDC)
- Stainless steel
| Type | Piezoelectric |
| Application | Tension & Compression |
| Full Scale | 10 lbs, 50 lbs, 100 lbs, 500 lbs, 5000 lbs |
| Output | 5 V DC |
| Precision | ±1.0 % FS |
| Excitation | 18 V - 30 V DC |
