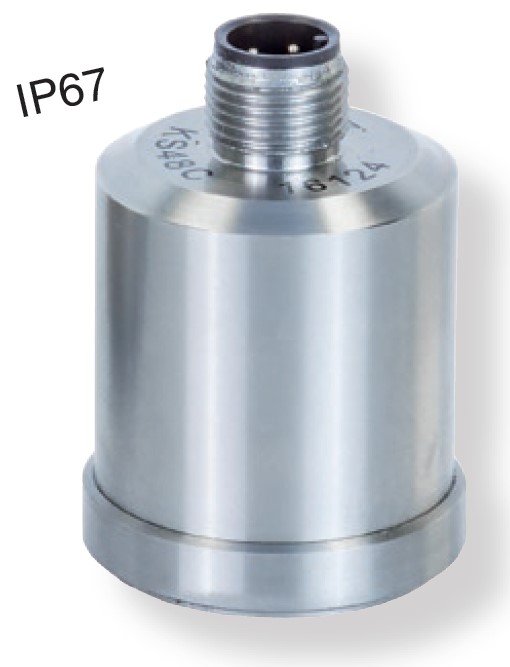

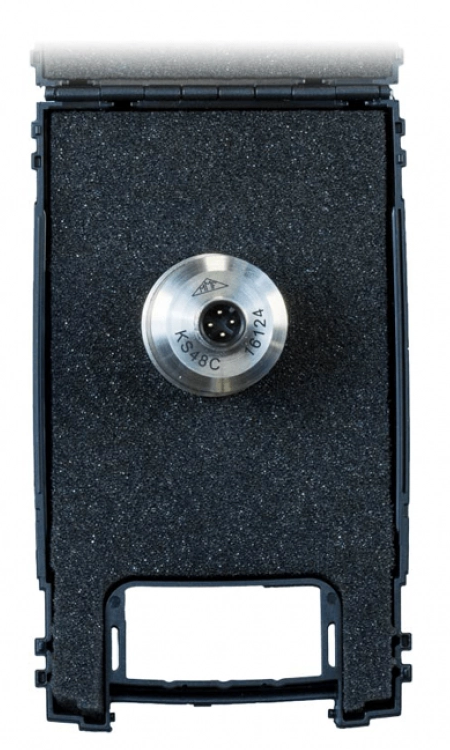

KS48C, High Sensitivity Accelerometers
These accelerometers have a +/-6g range and provide a 1000g maximum overrange protection by incorporating friction coupling. They are well suited for seismic measurements, structural movements and building vibration, particularly at low frequencies,
Features:
- Extremely sensitive piezo system provides excellent resolution and low noise floor
- KS48C with IEPE voltage output

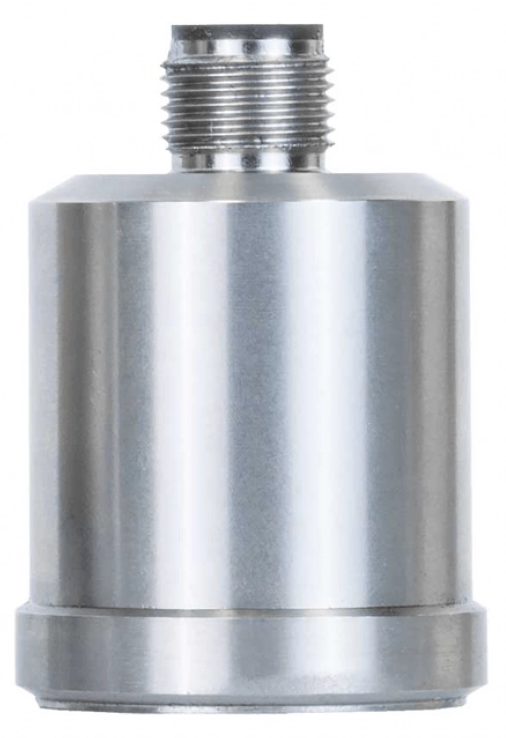

- Stainless Steel housing with IP67 protection

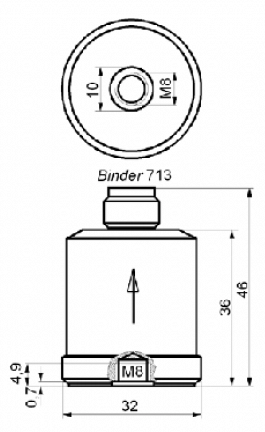

- M8 mounting thread
- 1000g max. protection by friction coupling
- KS48C with IEPE voltage output
- KS48C with protection grade IP67
Manufacturer: MMF
Quote
Datasheet
Specifications
Applications
Models & Accessories
Downloads
Related Products
KS48C - Specifications
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 0.5 g |
| Output | 10000 mV/g |
| Material | Aluminum |

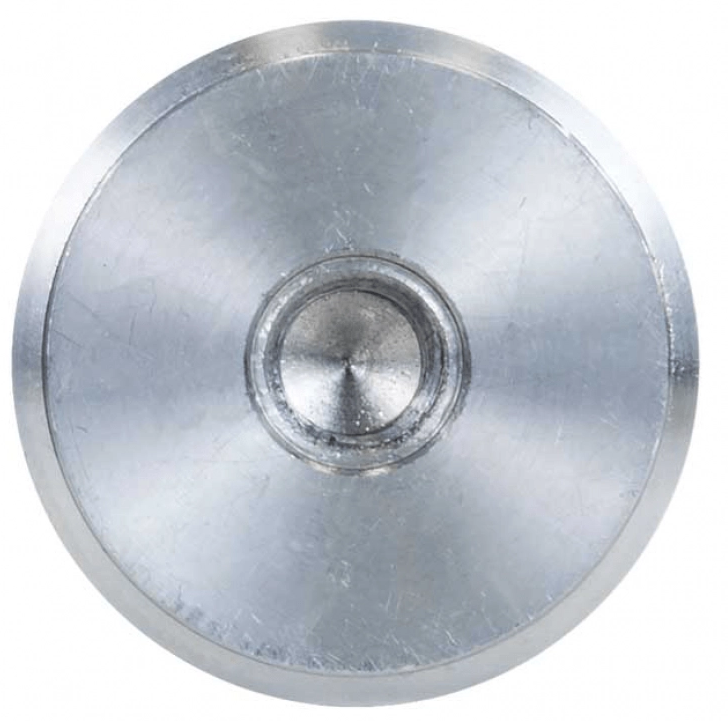

| Mounting | Tapped Hole |
| M8 Thread | |

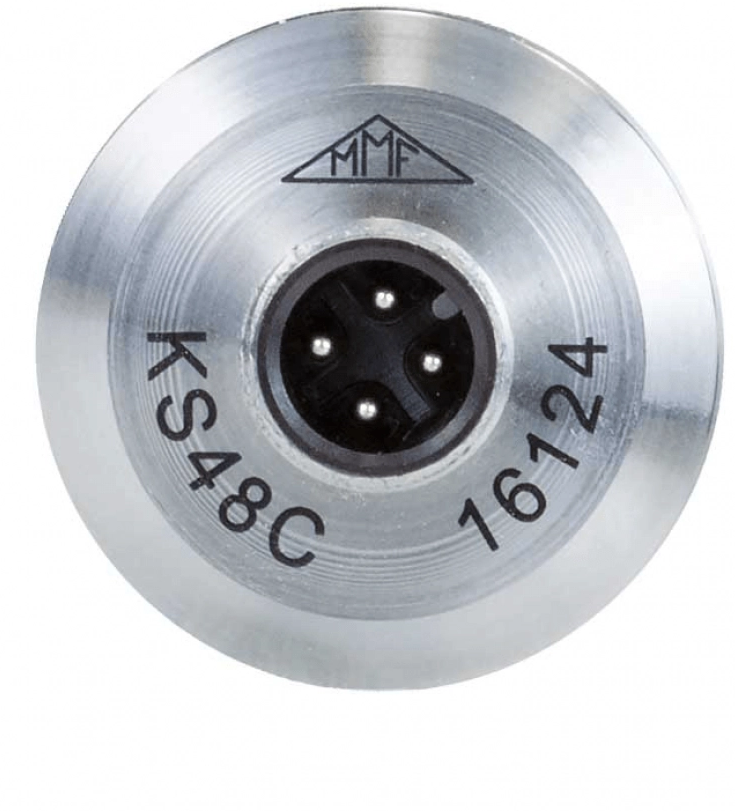

| Connection | Binder 713 |
| Min Temperature | -20 °C |
| Max Temperature | 120 °C |
KS48C - Applications
Suited for seismic measurement and building vibration, particularly at low frequencies
KS48C - Models & Accessories

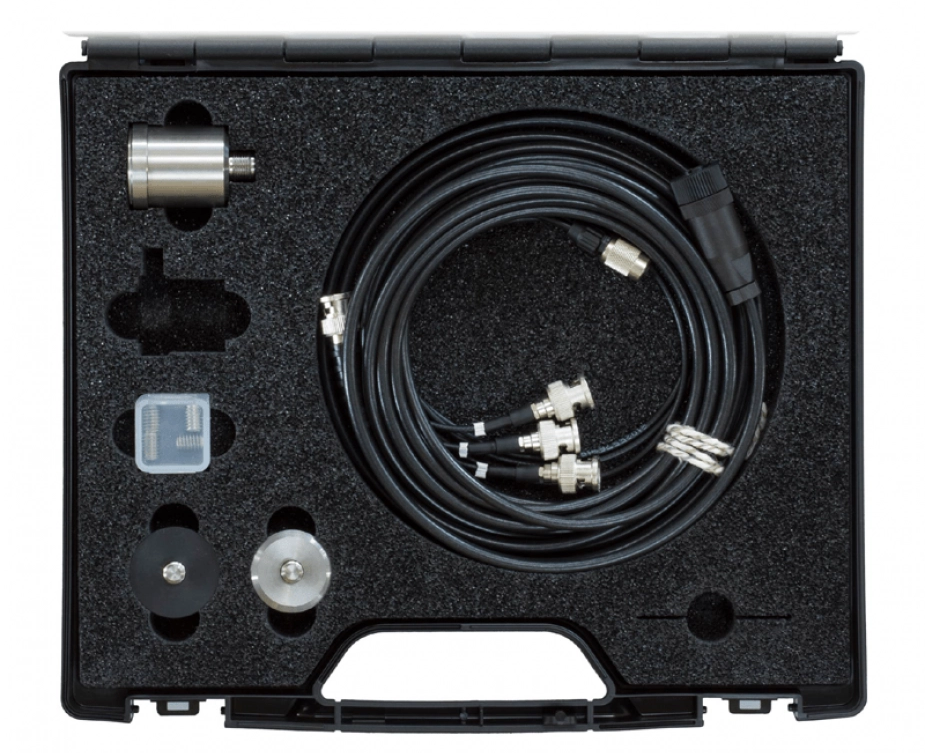

Accessories
| Cable - 085-B713G-BNC-5 | Binder 713, straight to BNC, 5 m, Ø 5 mm, 80 °C |
| 043 | Stud bolt M8 x 10 |
| 044 | Stud adapter M8 (male) / M5 (fem.) |
| 080G | Plug Binder 713, straight |
| 080W | Plug Binder 713, angled |
| 206 | Insulating flange 2 x M8 (male) |
| 208 | Rare-earth magnetic base, M8 (male) |
| 229 | Adhesive pad, stainless steel, M8 (male) |
| 230 | Triaxial mounting cube 3 x M8 |
| 700 | Sensor pressure hull for measurements under water |
| 729 | Tripod floor plate for accelerometers |
| M208A | 8-channel IEPE conditioner |
| M33 | IEPE amplifier module |
| M72A1 | Charge Amplifier / IEPE Amplifier |
KS48C - Downloads
KS48C - High Sensitivity Accelerometers Datasheet |
