M208A, 8-Channel IEPE Signal Conditioner
Signal conditioning in laboratory or field with IEPE compatible piezoelectric sensors for acceleration, force or pressure & IEPE microphones. An Excellent flexibility, performance & cost effective solution for Front Ends of PC based data acquisition.
Features:
- Measurement and display of RMS and peak values.
- Wide frequency range (Bandwidth) from 0.1 Hz to 100 kHz
- Incremental gain of 0.1 to 1000 for input / transducer sensitivity.
- Vibration monitoring with relay outputs.
- Relay output with adjustable trip levels
- Remote measurement via Ethernet interface and web browser.
- TEDS support IEEE 1451.4 with automatic transducer sensitivity normalization
- Bench top or 19" rack mounting enclosure
- 8 BNC inputs, 8 BNC outputs & 1 DSUB output connector
Manufacturer: MMF
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
M208A - Description

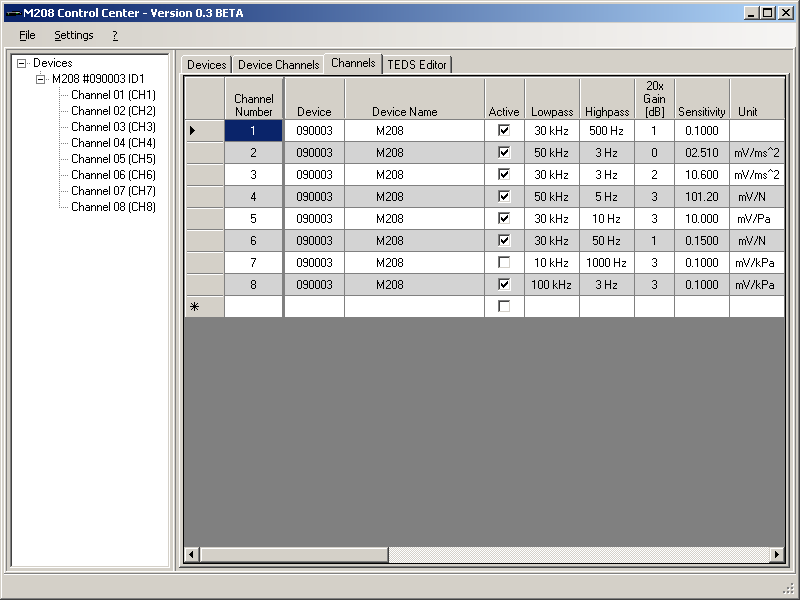

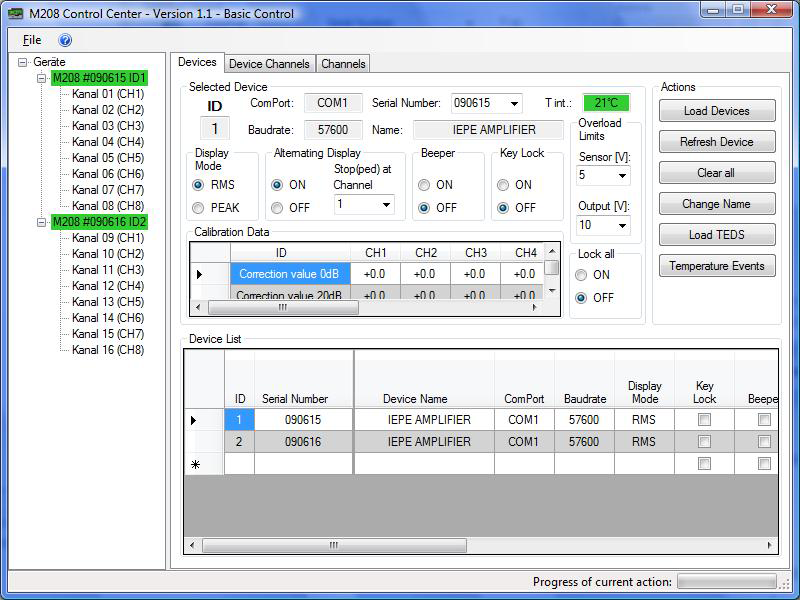

There is PC control of up to 8 Conditioners (64 chns) via serial interfaces (via daisy chain). ASCII command set for PC control software (included).

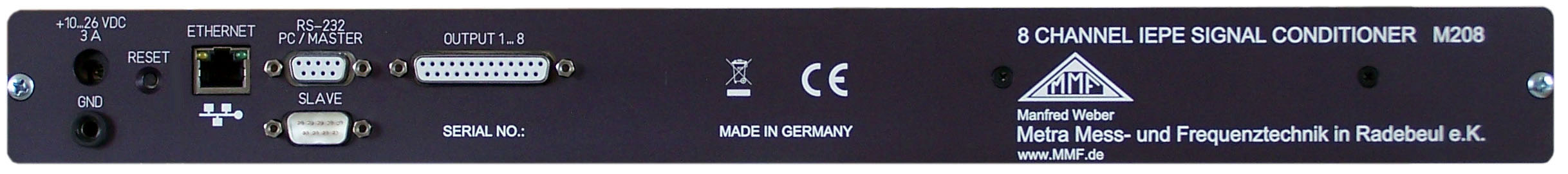

There is a Sub-D socket for outputs 1 to 8 on the rear panel. Plug-in Modules provide Low Pass and High Pass Filter ing.
Operates from a 115Vac adaptor or 10-28 Vdc power.
M208A - Specifications
| Input Type | Piezoelectric (IEPE) |
| # of Inputs | 8 |
| Output Type | ±10 V DC |
| Max Bandwidth | 100 kHz |
| Supply Power | 10 - 28 VDC |
| Min Temperature | -10°C |
| Max Temperature | +50°C |
M208A - Models & Accessories
Accessories
| FB2 | Plug-in low pass filters |
| FB3 | Plug-in high pass filters |
| FBD | Double integrator plug-in modules |
| FBV | Single integrator plug-in modules |
M208A - Downloads
M208A, 8 Chn Signal Conditioning Datasheet |
