8670, Precision Flange Mount Torque Sensor

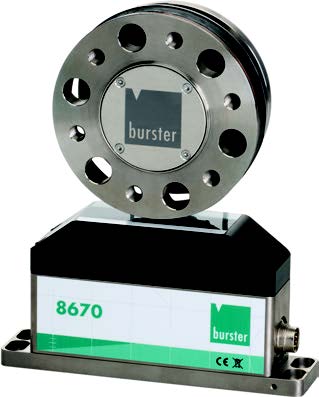

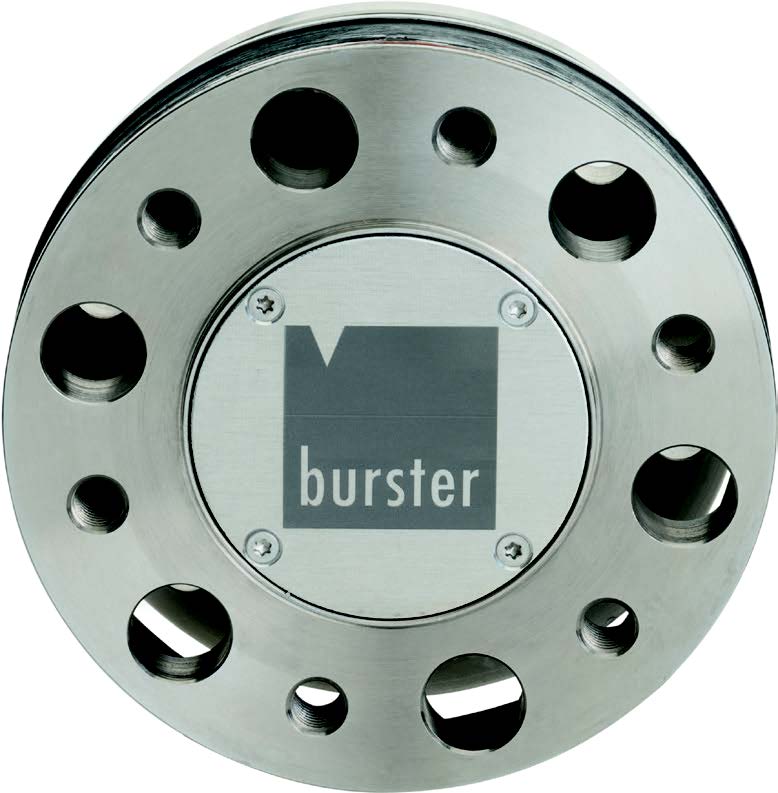

The rotating flange torque sensor model 8670 consists of the sensor (rotor), the receiver (stator) and the evaluation electronics. The torque of the rotor with the strain gage principle and transmitted completely contactless using RF.
Features:
- Measuring ranges from 0 ... 100 N.m up to 0 ... 5000 N.m
- High Rotational Speeds , up to 20,000RPM
- Linearity error ≤ 0.05 % F.S.
- Flange connection with DIN hole pattern
- Output signal 0 ... ±10 V, as a frequency or CANbus
Manufacturer: Burster Praezisionsmesstechnik Gmbh
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
8670 - Description

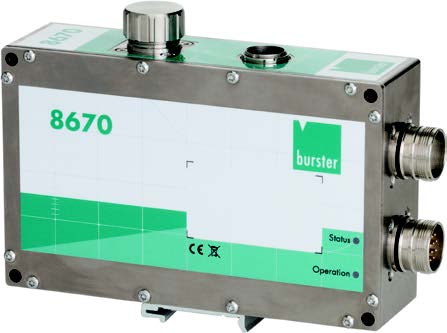

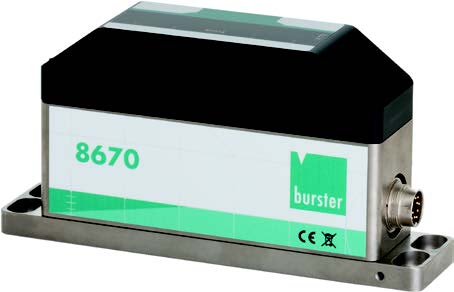

The 8670 rotary flanged torque sensor consists of the sensor (rotor), receiver (stator) and evaluation electronics. A 10-meter connecting cable from the stator to the evaluation electronics is included. Torque is measured via the torsion of the rotor using strain gages. Transmission is wireless and fully contactless. As there is no bearing, the sensor is maintenance free.
8670 - Specifications
| Type | Rotary |
| Full Scale | 100 Nm |
| 200 Nm | |
| 500 Nm | |
| 1000 Nm | |
| 2000 Nm | |
| 3000 Nm | |
| 5000 Nm | |
| Max Speed | 20000 RPM |
| Output | ±10 V DC |
| USB | |
| Precision | ±0.10 % FS |
| Min Temperature | -15 °C |
| Max Temperature | 70 °C |
8670 - Models & Accessories
Accessories
| 9900-V680 | Mating connector for X10 (included with device) |
| 9900-V681 | Mating connector for X11 (included with device) |
| 9900-K501 | Connecting cable for X10: Power supply / frequency output, one end open, length 5 meters |
| 9900-K502 | Connecting cable for X11: Analog / CAN / alarm / input, one end open, length 5 meters |
| 9900-K605 | Connecting cable stator to evaluation unit, length 5 meters |
| 9900-K610 | Connecting cable stator to evaluation unit, length 10 meters (included with device) |
| 9900-K615 | Connecting cable stator to evaluation unit, length 15 meters |
| 9900-K620 | Connecting cable stator to evaluation unit, length 20 meters |
| 9900-K625 | Connecting cable stator to evaluation unit, length 25 meters |
| 9900-K630 | Connecting cable stator to evaluation unit, length 30 meters |
8670 - Downloads
8670 Precision Flange Mount Torque Sensor Datasheet |
