> Products > Conditioner/Transmitter > Modular > SCM5B Signal Conditioner / Isolator Back Plane

SCM5B Signal Conditioner / Isolator Back Plane, 1, 2, 4, 8 & 16 position Back Plane

These Back Planes can be panel mounted or DIN Rail mounted.
SCM5B Signal Conditioner / Isolator Back Plane, 1, 2, 4, 8 & 16 position Back Plane
SCM5B Signal Conditioner / Isolator Back Plane, 1, 2, 4, 8 & 16 position Back Plane

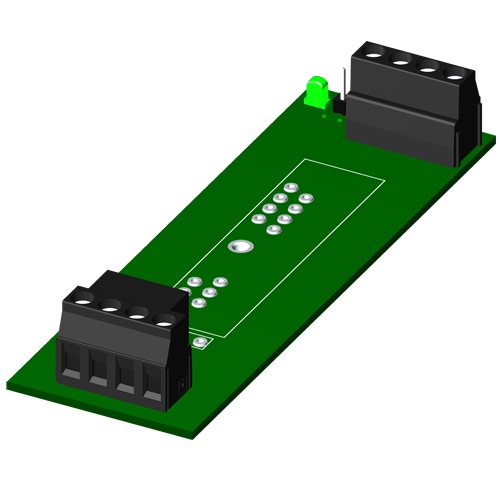

SCMPB03 1 Chn 5B Backplane

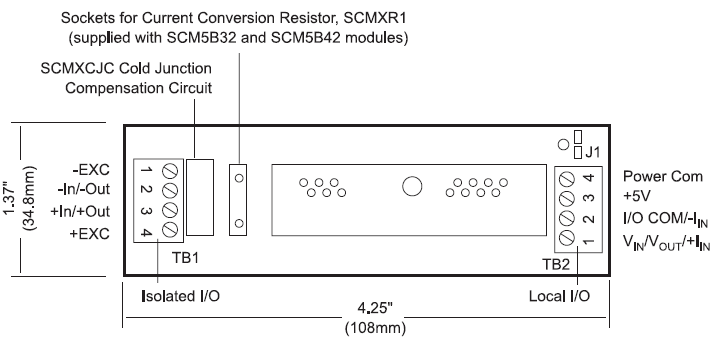

SCMPB03 Single Chn 5B Analog I-O Backpanel

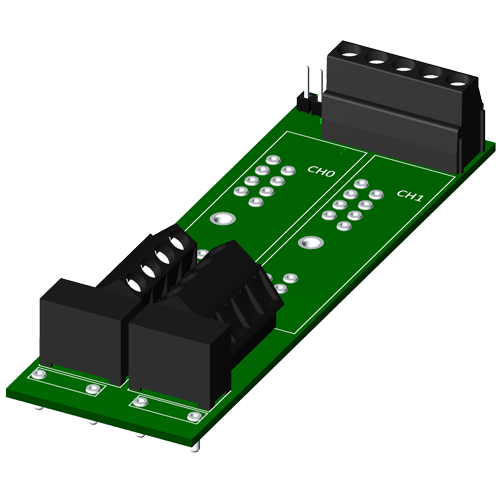

SCMPB04 2 Chn 5B Backplane

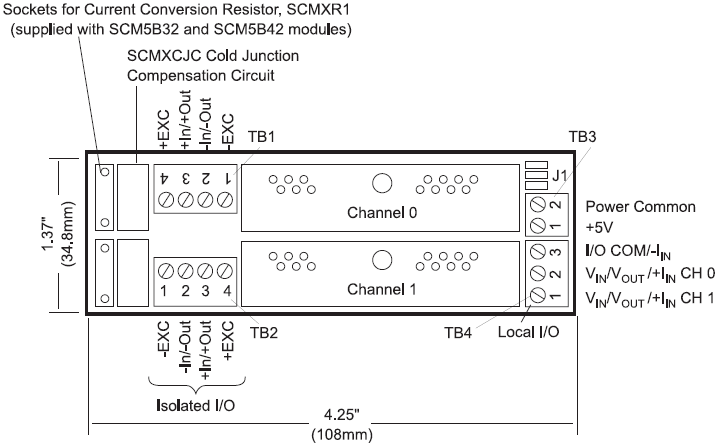

SCMPB04 Dual Chn 5B Analog I-O Backpanel

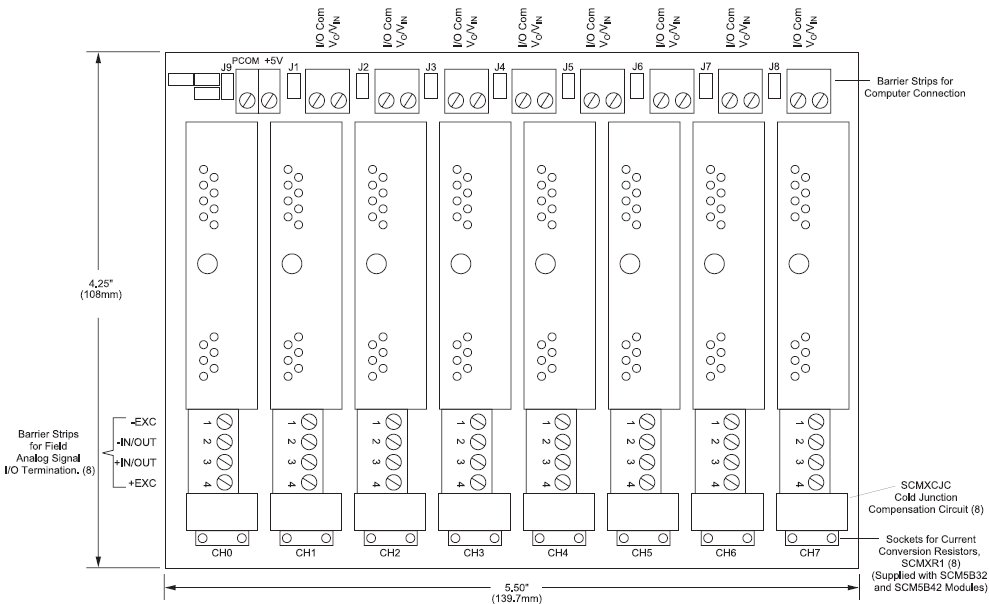

SCMPB07 - 8 Chn 5B Backplane
SCMPB07-8 Chn 5B Signal Conditioning module backplane.

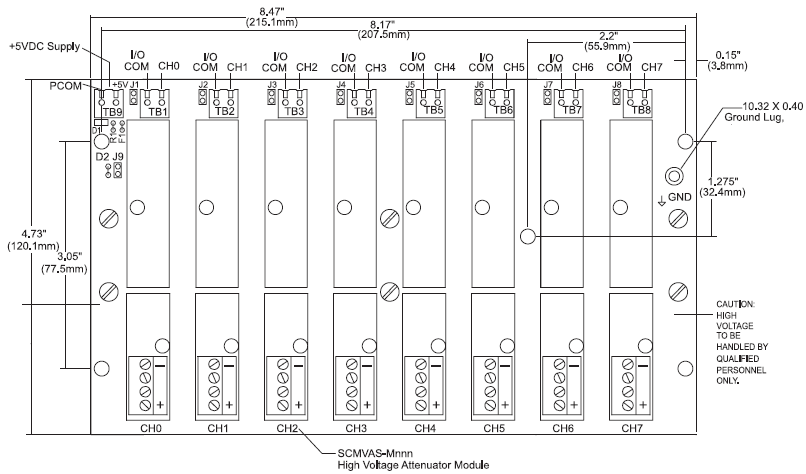

SCMVAS-PB8 - 8 Chn High Voltage 5B Analog I-O Backpanel

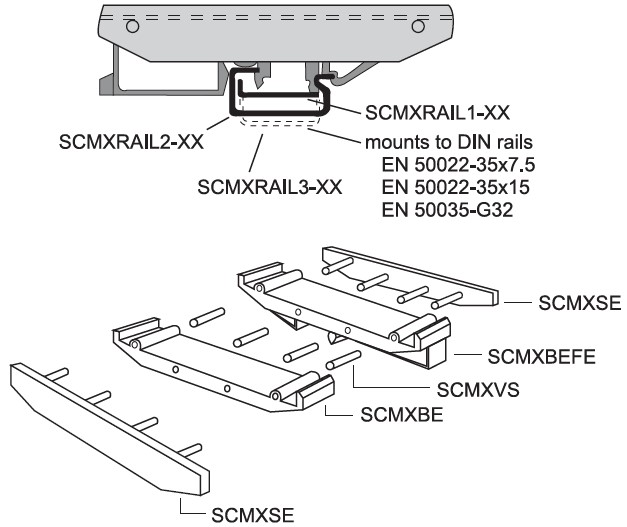

SCMPB 5B Backplane DIN Rail Mount Option
Features:
  • Multiplexed and non-Multiplexed PCB's
  • 1, 2, 4, 8 & 10 position PCB's
  • 5 Vdc Power Supply required
  • Cold Junction Compensation (CJC - optional)
Manufacturer:  Dataforth
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Related Products
Similar Products
SCM5B Signal Conditioner / Isolator Back Plane - Specifications
FamilyDataforth 5B
# of Inputs1
2
8
16
Output Type0 - 5 V DC
±5 V DC
±10 V DC
Supply Power5 V DC
SCM5B Signal Conditioner / Isolator Back Plane - Models & Accessories
Models
SCMPB01Backpanel Analog I/O: 16 Ch, Continuous Output, Non Multiplexed, Dual 26 Pin connector, with CJC
SCMPB01-1Backpanel Analog I/O: 16 Ch, Continuous Output, Non Multiplexed, Dual 26 Pin connector, No CJC
SCMPB01-2Backpanel Analog I/O: 16 Ch, Continuous Output, Non Multiplexed, Dual 26 Pin connector, DIN Rail Mount, with CJC
SCMPB01-3Backpanel Analog I/O: 16 Ch, Continuous Output, Non Multiplexed, Dual 26 Pin connector, No CJC, DIN Rail Mount
SCMPB035B Single channel backpanel
SCMPB045B Dual channel backpanel
SCMPB04-25B Dual channel backpanel, no CJC
SCMPB04-25B Dual channel backpanel, DIN rail mount
SCMPB04-35B Dual channel backpanel, DIN rail mount, no CJC
SCMPB075B Non-multiplexed, 8 channel backpanel
SCMPB07-25B Non-multiplexed, 8 channel backpanel with DIN rail mounting option
SCMPB07-35B Non-multiplexed, 8 channel backpanel, no CJC, with DIN rail mounting option
SCM5B Signal Conditioner / Isolator Back Plane - Downloads
SCM5B Signal Conditioner / Isolator Back Plane - Related Products
SCM5B range of Backplanes
Quote
SCMPB-xx - 5B Signal Conditioner / Isolator Back Plane
  • 1, 2,, 8 & 16 position PCB's
  • 5 Vdc Power Supply required
Family
Dataforth 5B
# of Inputs
1,
2,
8,
16
Supply Power
5 V DC

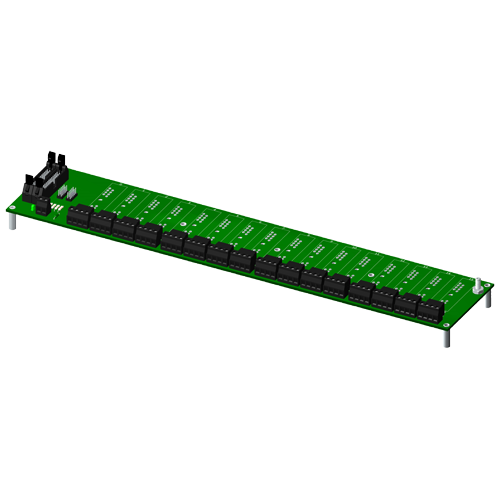

SCMPB02, isoLynx Analog I/O Expansion
Quote
Datasheet
SCMPB02 - isoLynx Analog I/O Expansion
  • 16 Module Slots
  • 16 Analog I/O Channels
  • Expandable with SCMPB02/06 to 60 Analog I/O Channels
  • Expandable with SLX101 to 128 Digital I/O Channels
  • 1500 Vrms Isolation
  • Panel or DIN Rail Mount
  • CE Compliant
Family
Dataforth isoLynx
Unit Type
Module
Slots
16
Max Throughput
3.6 kS/s
Resolution
16-bit
Min Temperature
-40 °C
SCMPB03, Single Module 5B Backplane
Quote
SCMPB03 - Single Module 5B Backplane
Family
Dataforth 5B,
Dataforth 7B
Input Type
0 - 10 mV DC,
0 - 40 V DC,
±10 V DC,
0 - 10 V AC,
4 - 20 mA,
Strain Gauge,
Frequency
# of Inputs
1
Output Type
0 - 10 V DC
Isolation
Yes
SCMPB04, Analog I/O Back Panel
Quote
Datasheet
SCMPB04 - Analog I/O Back Panel
Family
Dataforth 5B
Input Type
0 - 10 mV DC,
0 - 5 V DC,
0 - 10 V DC,
0 - 50 V DC,
±10 V DC,
±40 V DC,
0 - 10 V AC,
4 - 20 mA,
Strain Gauge,
Frequency,
Thermocouple,
RTD
SCMPB05
Quote
Datasheet
SCMPB05 - 8-Position Analog I/O Backpanel, Non-Multiplexed
  • can accept up to eight SCM5B analog input and/or output modules
  • 1-, 2-, 8-, 16-Position Backpanels
  • Panel or DIN Rail Mounting Options
  • 1500 Vrms Isolation
  • CE Compliant
  • 1-, 2-, 8-, 16-Position Backpanels
  • 19-Inch Mounting Rack For Backpanels
  • Multiplexed and Non-Multiplexed Backpanels
The SCMPB05 backpanel (Figure 12) can accept up to eight SCM5B analog input and/or output modules in any combination.
SCMPB06, isoLynx Analog I/O Expansion
Quote
App Note
SCMPB06 - isoLynx Analog I/O Expansion
  • 8 Module Slots
  • 8 Analog I/O Channels
  • Expandable with SCMPB02/06 to 60 Analog I/O Channels
  • Expandable with SLX101 to 128 Digital I/O Channels
  • 1500 Vrms Isolation
  • Panel or DIN Rail Mount
  • CE Compliant
Family
Dataforth isoLynx
Unit Type
Module
Slots
8
Max Throughput
3.6 kS/s
Resolution
16-bit
Min Temperature
-40 °C

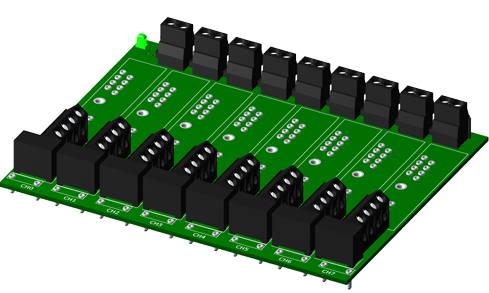

SCMPB07 image
Quote
Datasheet
SCMPB07 - 8-Position Backpanel, High Density
  • can accept any of the SCM5B analog modules
  • 16 non-addressable analog IO signal channels
  • Panel or DIN Rail Mounting Options
  • 1500 Vrms Isolation
  • CE Compliant
  • 1-, 2-, 8-, 16-Position Backpanels
  • 19-Inch Mounting Rack For Backpanels
  • Multiplexed and Non-Multiplexed Backpanels
Slots
8
Input Type
Voltage,
Current,
Strain Gauge,
Thermocouple/RTD,
Frequency
Analog Outputs
8
Max Bandwidth
11 kHz
SCM5B Signal Conditioner / Isolator Back Plane - Similar Products
SCM5B31, Voltage Input Analog Modular Signal Conditioner
Quote
Datasheet
SCM5B31 - Voltage Input Analog Modular Signal Conditioner
  • Narrow Bandwidth Voltage Input Module
  • 1500 V Transformer Isolation
  • Accuracy: ± 0.03%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous
Family
Dataforth 5B
Input Type
±1 V DC,
±5 V DC,
±10 V DC,
±20 V DC,
±40 V DC
# of Inputs
1
Output Type
0 - 5 V DC,
0 - 10 V DC,
±5 V DC,
±10 V DC
Bandwidth
4 Hz
Isolation
Yes
SCM5B49, Voltage Input Analog Modular Signal Conditioner
Quote
Datasheet
SCM5B49 - Voltage Input Analog Modular Signal Conditioner
  • Voltage Output Module
  • 1500 V Transformer Isolation
  • Accuracy: ±0.03%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Track & Hold Circuit
Family
Dataforth 5B
Input Type
0 - 5 V DC,
0 - 10 V DC,
±5 V DC,
±10 V DC
# of Inputs
1
Output Type
0 - 5 V DC,
0 - 10 V DC,
±5 V DC,
±10 V DC
Bandwidth
400 Hz
Isolation
Yes
SCM5B48, Accelerometer Input Analog Modular Signal Conditioner
Quote
Datasheet
SCM5B48 - Accelerometer Input Analog Modular Signal Conditioner
  • Accelerometer Input Module
  • 1500 V Transformer Isolation
  • Accuracy: ±0.20%
  • Modular & Configurable
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous
Family
Dataforth 5B
Input Type
±10 V DC
# of Inputs
1
Output Type
±5 V DC,
±10 V DC
Bandwidth
20 kHz
Isolation
Yes
SCM5B392, Analog Signal Conditioner Controller Modules
Quote
Datasheet
SCM5B392 - Analog Signal Conditioner Controller Modules
  • Matched-Pair Servo/Motor Controller Module
  • Extends the Distance and Isolates Servo/Motor Controller Signals
  • Provides Isolated Current Loop Interface Between Controller and Motor or Actuator
  • 1500 Vrms Transformer Isolation
  • Accuracy: ±0.06%
  • Paired Modules
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous
Family
Dataforth 5B
Input Type
0 - 5 V DC,
0 - 10 V DC,
±5 V DC,
±10 V DC,
4 - 20 mA
# of Inputs
1
Output Type
0 - 5 V DC,
0 - 10 V DC,
±5 V DC,
±10 V DC,
4 - 20 mA
Bandwidth
1 kHz
Isolation
Yes
SCM5B47, Thermocouple Input Analog Modular Signal Conditioner
Quote
Datasheet
SCM5B47 - Thermocouple Input Analog Modular Signal Conditioner
  • Linearized Thermocouple Input Module
  • 1500 V Transformer Isolation
  • Accuracy: ± 0.07% to ± 0.16%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous
Family
Dataforth 5B
Input Type
Thermocouple
# of Inputs
1
Output Type
0 - 5 V DC,
0 - 10 V DC
Bandwidth
4 Hz
Isolation
Yes
