SCMPB-xx, 5B Signal Conditioner / Isolator Back Plane
These Back Planes can be panel mounted or DIN Rail mounted. These are available with Multiplexed output capability and Direct Analog non-Multiplexed outputs.
Features:
- 1, 2,, 8 & 16 position PCB's
- 5 Vdc Power Supply required
Manufacturer: Dataforth
Quote
Specifications
Models & Accessories
Similar Products
SCMPB-xx - Specifications
| Family | Dataforth 5B |
| # of Inputs | 1 |
| 2 | |
| 8 | |
| 16 | |
| Supply Power | 5 V DC |
SCMPB-xx - Models & Accessories
Models
| SCMPB02 | 16-Position Multiplexed Analog I/O Backpanel |

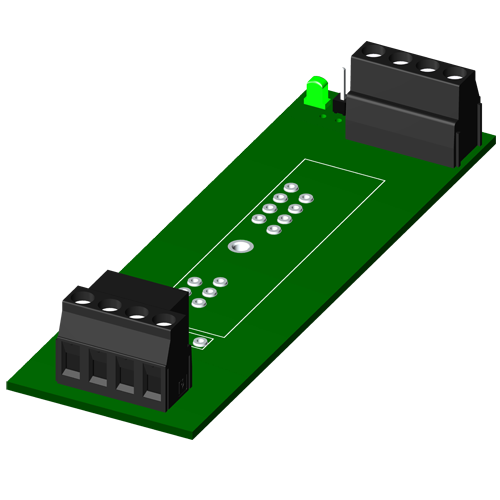

| SCMPB03 | One Position Direct Analog I/O Backpanel |

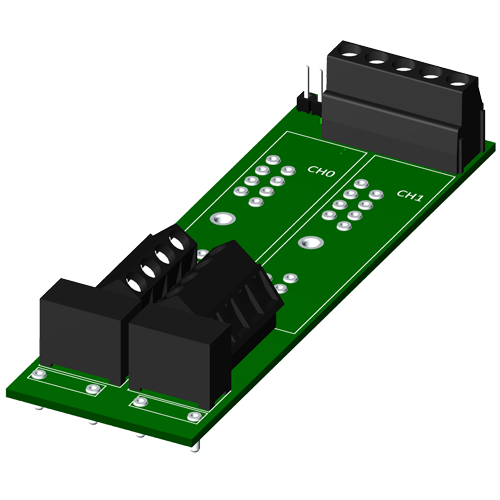

| SCMPB04 | Two Position Direct Analog I/O Backpanel |
SCMPB-xx - Similar Products
Quote
Datasheet

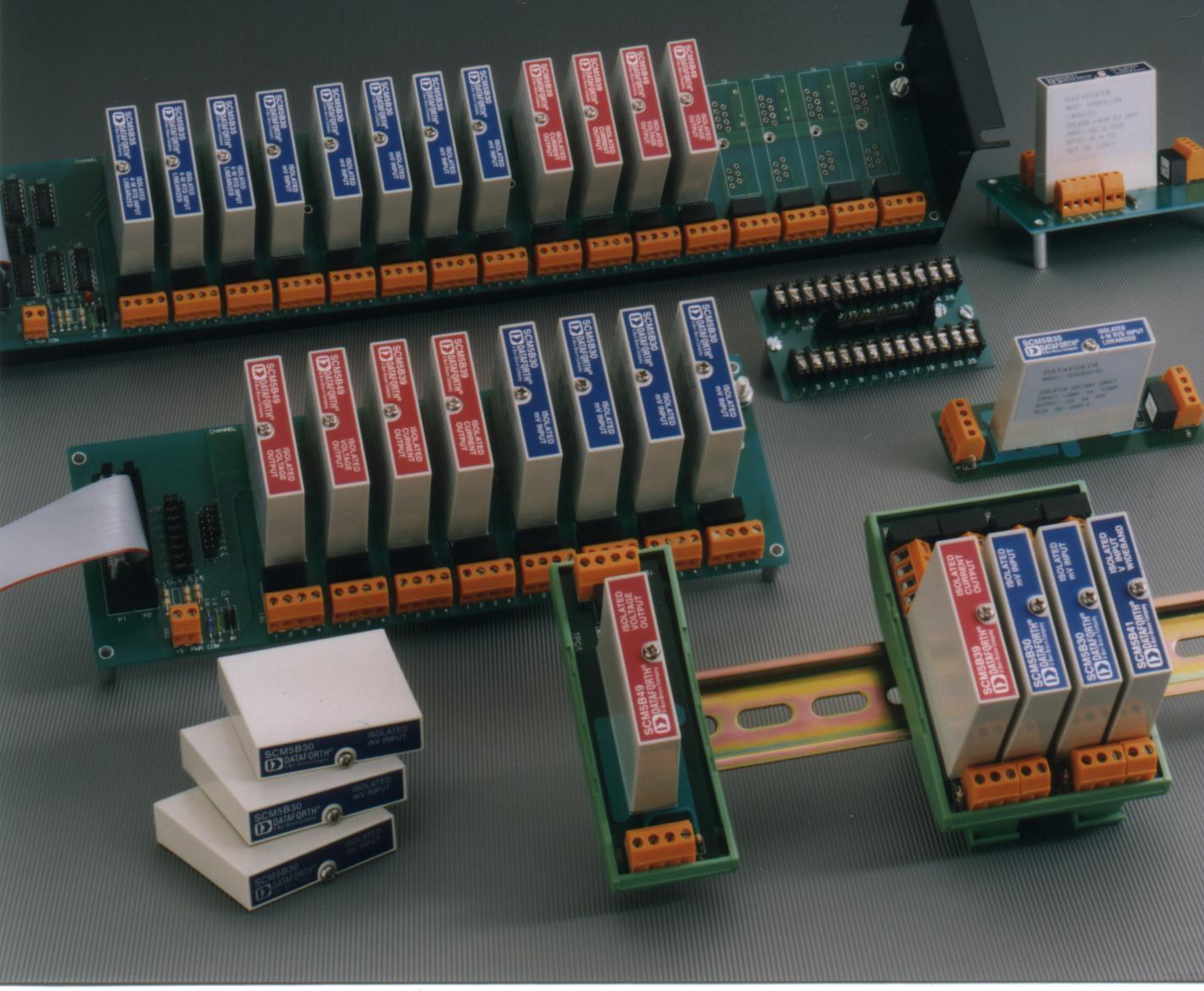

SCM5B Signal Conditioner / Isolator Back Plane - 1, 2, 4, 8 & 16 position Back Plane - Multiplexed and non-Multiplexed PCB's
- 1, 2, 4, 8 & 10 position PCB's
- 5 Vdc Power Supply required
- Cold Junction Compensation (CJC - optional)
| Family | Dataforth 5B |
| # of Inputs | 1, 2, 8, 16 |
| Output Type | 0 - 5 V DC, ±5 V DC, ±10 V DC |
| Supply Power | 5 V DC |
- Analog Output Module
- 1500 V Transformer Isolation
- Accuracy: ± 0.03%
- Module
- ANSI/IEEE C37.90.1 Transient Protection
- Input Protected to 240 V AC Continuous
| Family | Dataforth 5B |
| Input Type | 0 - 5 V DC, ±5 V DC, ±10 V DC, 0 - 20 mA |
| # of Inputs | 1 |
| Output Type | 0 - 20 mA, 4 - 20 mA, ±20 mA |
| Bandwidth | 275 Hz, 400 Hz |
| Isolation | Yes |
- Narrow Bandwidth Voltage Input Module
- 1500 V Transformer Isolation
- Accuracy: ± 0.03%
- Module
- ANSI/IEEE C37.90.1 Transient Protection
- Input Protected to 240 V AC Continuous
| Family | Dataforth 5B |
| Input Type | ±10 mV DC, ±50 mV DC, ±100 mV DC, ±1 V DC |
| # of Inputs | 1 |
| Output Type | 0 - 5 V DC, 0 - 10 V DC, ±5 V DC, ±10 V DC |
| Bandwidth | 4 Hz |
| Isolation | Yes |
- Narrow Bandwidth Voltage Input Module
- 1500 V Transformer Isolation
- Accuracy: ± 0.03%
- Module
- ANSI/IEEE C37.90.1 Transient Protection
- Input Protected to 240 V AC Continuous
| Family | Dataforth 5B |
| Input Type | ±1 V DC, ±5 V DC, ±10 V DC, ±20 V DC, ±40 V DC |
| # of Inputs | 1 |
| Output Type | 0 - 5 V DC, 0 - 10 V DC, ±5 V DC, ±10 V DC |
| Bandwidth | 4 Hz |
| Isolation | Yes |
- Narrow Bandwidth Current Input Module
- 1500 V Transformer Isolation
- Accuracy: ± 0.03%
- Module
- ANSI/IEEE C37.90.1 Transient Protection
- Input Protected to 240 V AC Continuous
| Family | Dataforth 5B |
| Input Type | 0 - 20 mA, 4 - 20 mA |
| # of Inputs | 1 |
| Output Type | 0 - 5 V DC, 0 - 10 V DC |
| Bandwidth | 4 Hz |
| Isolation | Yes |
