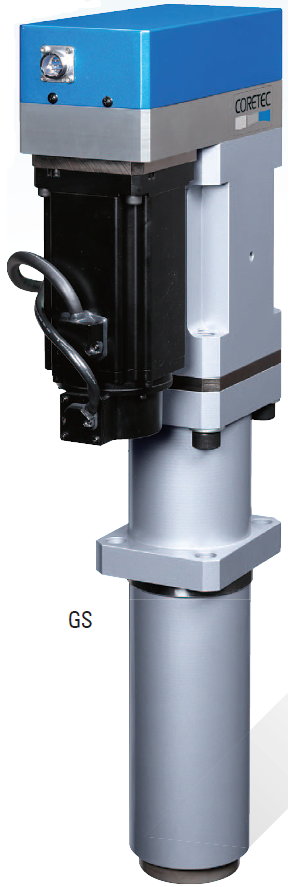

GS35, 35 kN (3.5 Ton) Assembly Servo Press

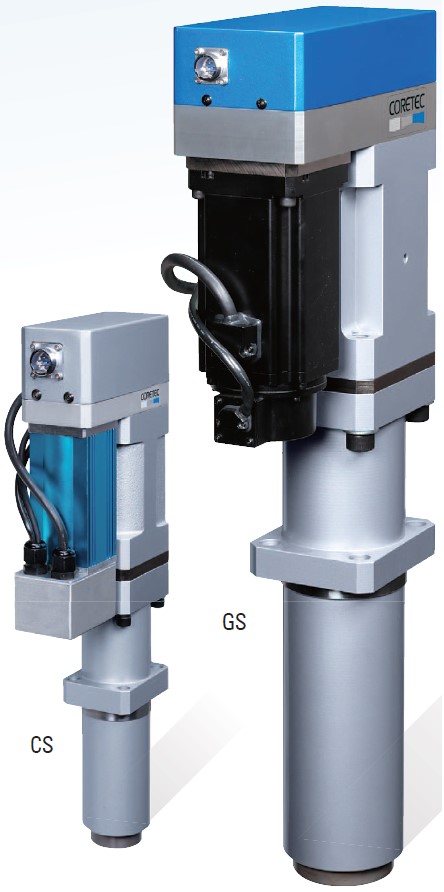

The GS35 has been designed for more Speed & a longer duration of Force applied than the CS30. It can move up to 320 mm per second, with stroke ranges of 200 or 400 mm. This is our fastest moving Servo Press.
Features:
- Maximum actuator speed of 320 mm/sec.
- Maximum Force Range, 35 kN (3.5 Ton)
- Cyclic loading up to 35kN without damage
- Stroke ranges available – 200mm and 400mm
Manufacturer: Coretec
Quote
Brochure
Specifications
Models & Accessories
Support
Downloads
Related Products
Similar Products
GS35 - Specifications
| Max Force | 35 kN |
| Max Speed | 320 mm/s |
| Stroke | 200 mm |
| 400 mm | |
| Interface | Digital I/O |
| ProfiNet | |
| DeviceNet | |
| EthernetIP | |
| CC-Link |
GS35 - Models & Accessories
Models
| GS35-200BK | 35 kN Force Capacity (3.5 Ton), 200mm Stroke Servo Press, with Brake |
| GS35-400BK | 35 kN Force Capacity (3.5 Ton), 400mm Stroke Servo Press, with Brake |
GS35 - Support
Instruction Video for CPS Controller Ethernet TCP/IP Communication Setup with a Windows PC
Instruction Video for CPS Controller Ethernet IP Communication Setup with a PLC

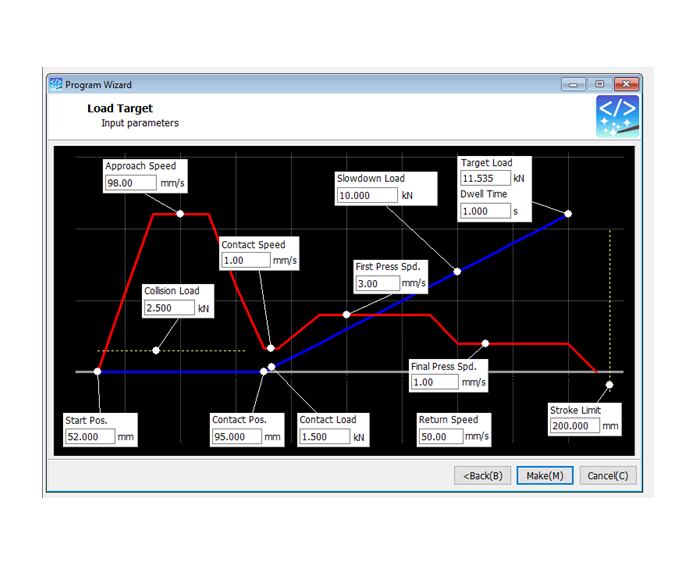

Instruction Video for Coretec CS Series Servo Press Initialization and Auto Generation Programming using CORETEC CPS-SP Configurator.
This video also discusses the Ethernet TCP/IP Communication Setup with the PLC and Manual Operation of the Servo Press Tool. This is similar to setup and communication with ProfiNet communication to & from a PLC.

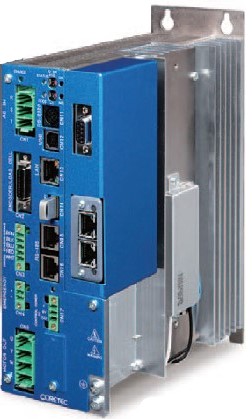

Coretec WPS Controller Ethernet TCP/IP communication setup using the Coretec WPS Configuration Software
Coretec WPS Controller Ethernet IP Feildbus to PLC communication setup using the Coretec WPS Configuration Software
GS35 - Downloads
WPS SP(CS_GS_MS)_Brochure Brochure |
GS35 - Related Products
- Force range of 30 kN, (3 Ton)
- Stroke ranges available up to 350 mm
- Maximum speeds of up to 240 mm/s
- PC independent Force vs. Displacement Signature
- Analysis using:
- o Limits
- o Envelopes
- o Windows
| Max Force | 30 kN |
| Max Speed | 240 mm/s |
| Stroke | 100 mm, 200 mm, 350 mm |
| Interface | Digital I/O, Profibus, DeviceNet, EthernetIP, CC-Link |
GS35 - Similar Products
- maximum Force Range, 30kN (3 Ton)
- Stroke ranges available – 100mm, 200mm and 350mm
- Special Stroke Range of 400 & 500mm
- Maximum actuator speed of 130 mm/sec.
- Cyclic loading up to 21kN without damage
| Max Force | 30 kN |
| Max Speed | 130 mm/s |
| Stroke | 100 mm, 200 mm, 350 mm, 400 mm, 500 mm |
| Interface | Digital I/O, ProfiNet, DeviceNet, EthernetIP, CC-Link |
