Multi Controller P, Controller for Servo Press
Full servo press functionality in a compact size that allows for all in one, completely unrestricted Servo Press Operation.
Features:
- All in one structure
- Compact size accessories
- Fully loaded functions
- Immediate use of simple press operations
- Built-in PLC & Safety PLC
- Low Cost
- Includes light curtain input
- Easy connection with peripheral devices or equipment
Manufacturer: Coretec
Quote
Brochure
Description
Specifications
Models & Accessories
Downloads
Related Products
Similar Products
Multi Controller P - Description
Coretec's Multi Controller offers full servo press functionality in a compact size, that allows for all in one, completely unrestricted Servo Press Operation.

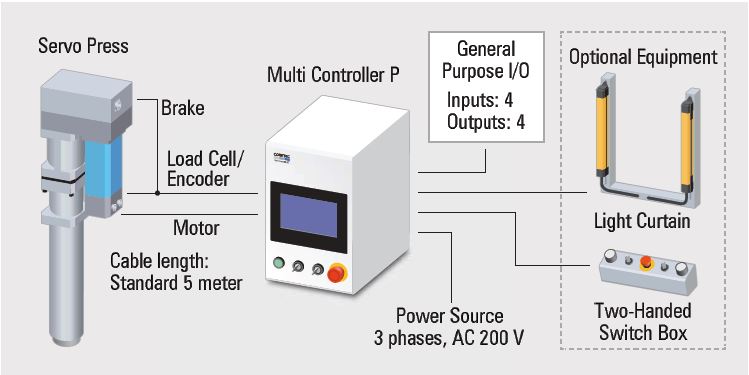

All necessary electrical devices are included in a compact size. Simply connect a power source and connect to the servo press by cable to complete operation setup.
The Controller includes useful functions for easy linkage operation with simple interlocks, peripheral devices (solenoid valves), and other equipment by using general purpose inputs/outputs. The design incorporates through safety measures throughout, such as the optional two-handed switch box and light curtain.
Multi Controller P - Specifications
| Stroke | 100 mm |
| 150 mm | |
| 200 mm | |
| 250 mm | |
| 350 mm | |
| 400 mm | |
| 500 mm | |
| Interface | EthernetIP |
Multi Controller P - Models & Accessories
Accessories
| Light Curtain | |
| Two-Handed Switch Box | |
| 5 Meter Cable | Standard |
Multi Controller P - Downloads
Multi Controller P Brochure |
