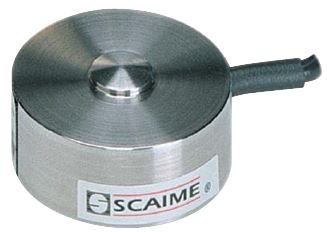

K13-K13B, Compression, Force Sensor

Stainless steel force sensor with small dimensions. 0 - 0.01 kN to 0 - 100 kN
K13-K13B, Compression, Force Sensor
K13-K13B, Compression, Force Sensor
Features:
  • Protection level IP65
  • Integrated overload protection (option)
  • Force press control
  • Stainless steel
Manufacturer:  Scaime
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
K13-K13B - Description

Stainless steel force sensor with small dimensions. 0 - 0.01 kN to 0 - 100 kN. With or without overload protection.

K13-K13B - Specifications
TypePancake
ApplicationCompression
Full Scale2.2 lbs
4.5 lbs
11.2 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
11250 lbs
22480 lbs
Output1 mV/V
IP RatingIP65
Min Temperature0 °C
Max Temperature70 °C
K13-K13B - Downloads
K13-K13B - Similar Products
K-13/K-13B, Miniature
Quote
Datasheet
K-13/K-13B - Miniature
  • For Press-In Force Control
  • Compression
  • Accuracy: ±0.5%
  • Integrated Overload Protection (option)
  • Outer Diameter: 32.0mm - 79.0mm
  • Height: 20.0mm - 50.0mm
  • Connection: 3m Integral cable
  • Stainless Steel
Type
Load Button
Application
Compression
Full Scale
2.2 lbs,
4.5 lbs,
11.2 lbs,
22 lbs,
45 lbs,
112 lbs,
220 lbs,
450 lbs,
1120 lbs,
2200 lbs,
4500 lbs,
11200 lbs,
22000 lbs
Output
1 mV/V
Precision
±0.5 % FS
Excitation
2 V - 6 V DC,
2 V - 12 V DC
K-1613, Miniature
Quote
Datasheet
K-1613 - Miniature
  • Compression
  • Accuracy: ±0.5%
  • Outer Diameter: 26.0mm - 46.0mm
  • Height: 13.0mm - 28.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel
Type
Load Button
Application
Compression
Full Scale
22 lbs,
45 lbs,
112 lbs,
220 lbs,
450 lbs,
1120 lbs,
2200 lbs,
4500 lbs,
11000 lbs
Output
1 mV/V
Precision
±0.5 % FS
Excitation
2 V - 12 V DC
K-22, Miniature
Quote
Datasheet
K-22 - Miniature
  • Economical
  • Compression
  • Accuracy: ±0.5%
  • Outer Diameter: 16.0mm
  • Height: 9.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel
Type
Load Button
Application
Compression
Full Scale
11.2 lbs,
22 lbs,
45 lbs,
112 lbs,
220 lbs,
450 lbs
Output
1 mV/V
Precision
±0.5 % FS
Excitation
2 V - 6 V DC
8552, Press Load Cell
Quote
Datasheet
8552 - Burster Load Cell, Miniature Press
  • Suitable for Standard Manual Presses (Stamp Holes 8 H7 resp.20 H7)
  • Compression
  • Accuracy: ±2.0% F.S.
  • Mechanical Overload Protection
  • Outer Diameter: 50.0mm
  • Height: 71.0mm
  • Connection: 1m Integral Cable
  • Stainless Steel
Type
Rod Type
Application
Compression
Full Scale
112 lbs,
220 lbs,
560 lbs,
1120 lbs,
2200 lbs,
5500 lbs
Output
0.35 mV/V,
0.7 mV/V,
0.9 mV/V,
1 mV/V,
1.5 mV/V
Precision
±2.0 % FS
Excitation
10 V DC
8451, Press Load Cell
Quote
Datasheet
8451 - Burster Load Cell, Miniature Press
  • Suitable for Standard Manual Presses (Stamp Holes 8 H7 resp.20 H7)
  • Compression
  • Accuracy: ±2.0% F.S.
  • Mechanical Overload Protection (≤ 2 kN)
  • Outer Diameter: 27.5mm - 55.0mm
  • Height: 94.0mm - 115.0mm
  • Connection: 2m Integral Cable
  • Stainless Steel
Type
Rod Type
Application
Compression
Full Scale
112 lbs,
220 lbs,
450 lbs,
560 lbs,
1120 lbs,
4500 lbs,
11250 lbs,
22480 lbs
Output
0.35 mV/V,
0.7 mV/V,
0.9 mV/V,
1 mV/V,
1.5 mV/V
Precision
±2.0 % FS
Excitation
10 V DC
