k11, Tension/Compression Force Sensor
Stainless steel force sensor with small dimensions. 0 - 0.5 kN to 0 - 2000 kN
Features:
- IP60
- High Accuracy
- Stainless Steel
- Tension and Compression Force
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
k11 - Description
Stainless steel force sensor with small dimensions. 0 - 0.5 kN to 0 - 2000 kN

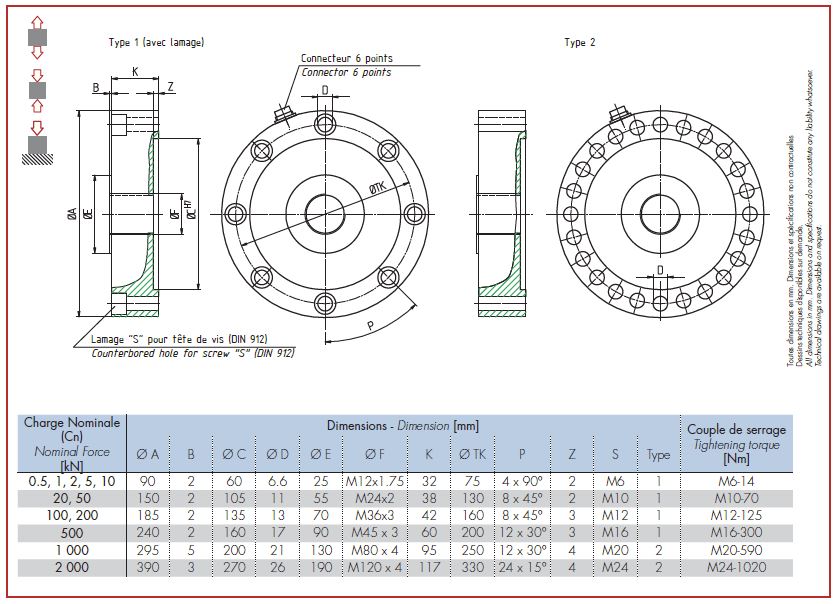

k11 - Specifications
| Type | Pancake |
| Application | Tension & Compression |
| Full Scale | 112 lbs |
| 220 lbs | |
| 450 lbs | |
| 1120 lbs | |
| 2250 lbs | |
| 4500 lbs | |
| 11250 lbs | |
| 22480 lbs | |
| 45000 lbs | |
| 112000 lbs | |
| 450000 lbs | |
| Output | 2 mV/V |
| IP Rating | IP60 |
| Min Temperature | -10 °C |
| Max Temperature | 80 °C |
k11 - Downloads
K11 Force Sensor Datasheet |
