MV-ID6089C-00C-NNG, 8.9 MP, Smart Code Reader
With built-in code reading algorithm, MV-ID6089C-00C-NNG smart code
reader can read different types of 1-dimensional code and 2-dimensional
code with reading speed up to 90 codes/sec.
Features:
- Adopts built-in code reading algorithm and deep learning algorithm with good robustness to read different codes.
- Adopts CMOS sensor to acquire image data and provide high quality image.
- Supports various trigger modes and image acquisition modes.
- Adopts multiple IO interfaces for inputting and outputting signals.
- Supports RS-232 serial port and indicators displaying device status.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
MV-ID6089C-00C-NNG, 8.9 MP - Description
With built-in code reading algorithm, MV-ID6089C-00C-NNG smart code reader can read different types of 1-dimensional code and 2-dimensional code with reading speed up to 90 codes/sec. It adopts deep learning algorithm to process image with good robustness, and can recognize various poor printing quality barcodes.
MV-ID6089C-00C-NNG, 8.9 MP - Specifications
| Resolution | 8.9 MP |
| Power Supply | 12 VDC |
| 24 VDC | |
| Max Reading Speed | 90 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | FTP |
| HTTP | |
| Serial | |
| SmartSDK | |
| TCP Client/Server | |
| 1-Dimensional Code | Code 39 |
| Code 93 | |
| Code 128 | |
| CodaBar | |
| ITF 25 | |
| UPC/EAN | |
| 2-Dimensional Code | Data Matrix |
| QR Code | |
| Type | Industrial |
MV-ID6089C-00C-NNG, 8.9 MP - Applications
Logistics code reading, factory automation, etc.
MV-ID6089C-00C-NNG, 8.9 MP - Models & Accessories
Accessories
| Lens | KF series FA lens |
| Light source | MV-LB-200-200-32WF |
MV-ID6089C-00C-NNG, 8.9 MP - Downloads
MV-ID6089C-00C-NNG Datasheet Datasheet |

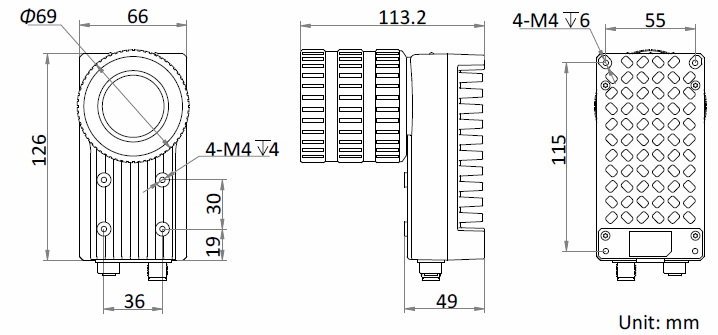

MV-ID6089C-00C-NNG Drawing Drawings |
MV-ID6089C-00C-NNG, 8.9 MP - Similar Products
- Adopts built-in code reading algorithm and deep learning algorithm with good robustness to read different codes.
- Adopts CMOS sensor to acquire image data and provide high-quality image.
- Supports various trigger modes and image acquisition modes.
- Adopts multiple IO interfaces for inputting and outputting signals.
- Supports RS-232 serial port and indicators displaying device status.
| Resolution | 8.9 MP |
| Power Supply | 12 VDC, 24 VDC |
| Max Reading Speed | 90 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | FTP, Serial, SmartSDK, TCP Client/Server |
| 1-Dimensional Code | Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, UPCE |
- Adopts built built-in dee p learning algorithm to read codes with good robustness.
- Adopts mechanical autofocus lens to achieve automatic focusing.
- Adopts multiple IO interfaces for input and output signals.
- Supports multiple communication protocols, including TCP, Serial, FTP FTP, ProfinetProfinet, etc.
- Adopts CMOS sensor to acquire image data and provide high high-quality image image.
- Supports RS -232 serial port and indicators displaying device status.
| Resolution | 1.6 MP |
| Power Supply | 12 VDC, 24 VDC |
| Max Reading Speed | 90 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | Ethernet/IP, FTP, Fins, MELSEC, ModBus, Profinet, Serial, SmartSDK, SLMP, TCP Client/Server |
| 1-Dimensional Code | Code 11, Code 39, Code 93, Code 128, CodaBar, China Post, EAN 8, EAN 13, Industrial, ITF 14, ITF 25, Matrix 25, MSI, UPCA, UPCE |
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS global shutter sensor to provide high quality images.
- Adopts mechanical autofocus lens to achieve automatic focusing.
- Supports code score and quality evaluation for code printing quality.
- Adopts controllable light source design providing diversified light.
- Ingress protection rating 67.
| Resolution | 3.1 MP |
| Power Supply | 24 VDC |
| Max Reading Speed | 90 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | Ethernet/IP, FTP, Fins, MELSEC, ModBus, Profinet, Serial, SmartSDK, SLMP, TCP Client/Server, UDP |
| 1-Dimensional Code | Code 11, Code 39, Code 93, Code 128, CodaBar, China Post, EAN 8, EAN 13, Industrial 25, ITF 14, ITF 25, Matrix 25, MSI, UPCA, UPCE |
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS global shutter sensor to provide high quality images.
- Adopts mechanical autofocus lens to achieve automatic focusing.
- Supports code score and quality evaluation for code printing quality.
- Adopts controllable light source design providing diversified light.
- Ingress protection rating 67.
| Resolution | 4.2 MP |
| Power Supply | 24 VDC |
| Max Reading Speed | 90 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | Ethernet/IP, FTP, Fins, MELSEC, ModBus, Profinet, Serial, SmartSDK, SLMP, TCP Client/Server |
| 1-Dimensional Code | Code 11, Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, Matrix 25, MSI, UPCA, UPCE |
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts mechanical autofocus lens to achieve automatic focusing.
- Adopts multiple IO interfaces for input and output signals.
- Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
- Adopts CMOS sensor to acquire image data and provide high-quality image.
- Supports RS-232 serial port and indicators displaying device status.
| Resolution | 6 MP |
| Power Supply | 24 VDC |
| Max Reading Speed | 90 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | Ethernet/IP, Fins, MELSEC, ModBus, Profinet, SmartSDK, SLMP, TCP Client/Server, UDP |
| 1-Dimensional Code | Code 11, Code 39, Code 93, Code 128, CodaBar, China Post, EAN 8, EAN 13, ITF 14, ITF 25, Matrix 25, MSI, UPCA, UPCE |
