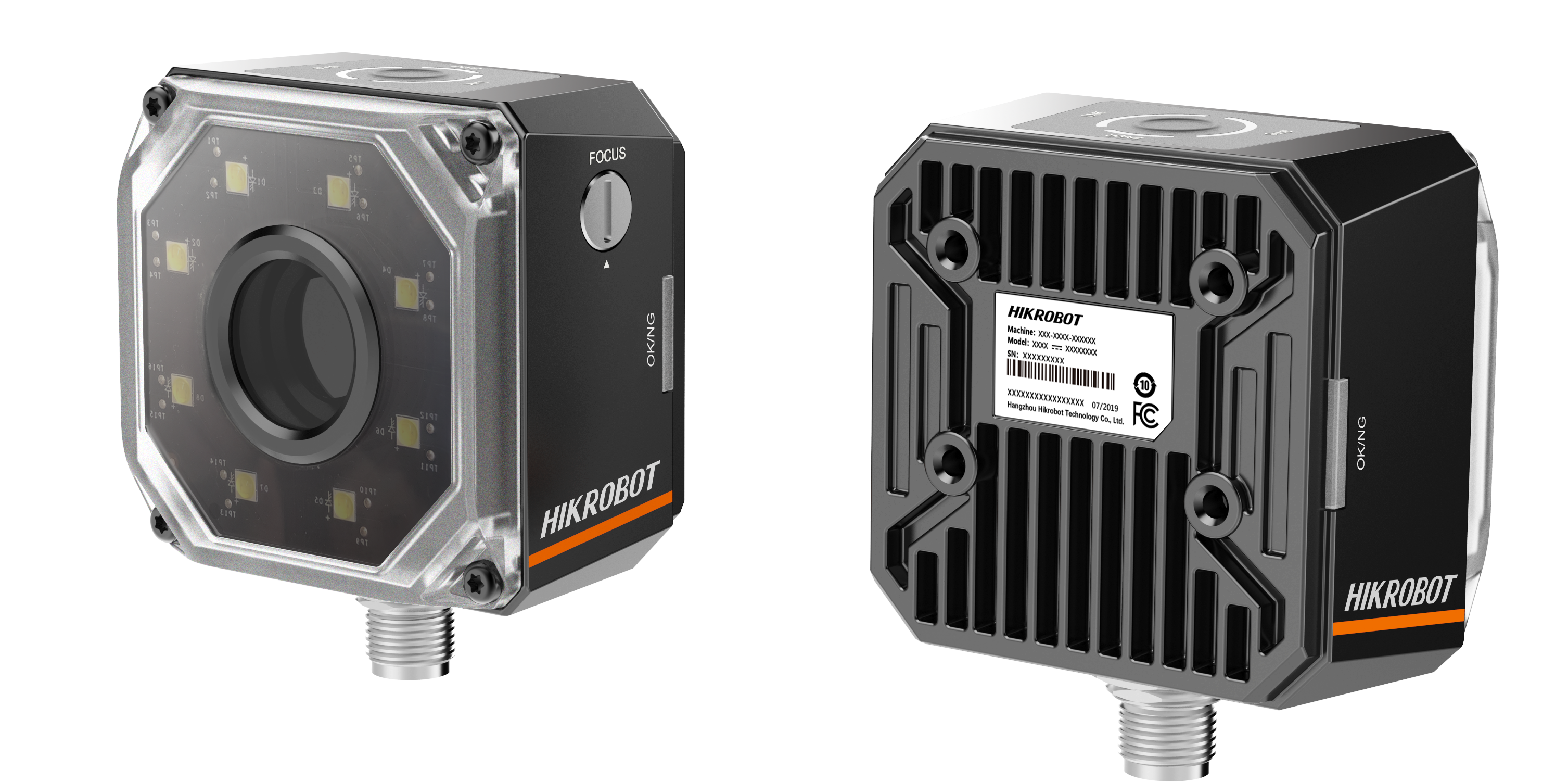

MV-ID3016M, 1.6 MP, Smart Code Reader
MV-ID3016M smart code reader adopts Hikrobot’s deep learning algorithm and can recognize and read different types of barcodes.
Features:
- Adopts CMOS sensor to acquire image data and provide high-quality image.
- Adopts built-in deep learning algorithm to read barcodes.
- Adopts multiple IO interfaces for input and output signals.
- Adopts OK/NG, PWR, STS and LNK indicators for displaying different statuses.
- Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
MV-ID3016M, 1.6 MP - Description
The MV-ID3016M smart code reader adopts Hikrobot’s deep learning algorithm and can recognize and read different types of barcodes. It has good robustness and its max. frame rate reaches 20 fps.
MV-ID3016M, 1.6 MP - Specifications
| Resolution | 1.6 MP |
| Power Supply | 12 VDC |
| 24 VDC | |
| Max Reading Speed | 60 codes/sec |
| Data Interface | Fast Ethernet |
| Communication | FTP |
| Profinet | |
| Serial | |
| SmartSDK | |
| TCP Client/Server | |
| 1-Dimensional Code | Code 39 |
| Code 128 | |
| 2-Dimensional Code | Data Matrix |
| QR Code | |
| Type | Industrial |
MV-ID3016M, 1.6 MP - Applications
Consumer electronics, food and beverage, pharmaceutical, semiconductor, automobile, etc.
MV-ID3016M, 1.6 MP - Models & Accessories
Models
| MV-ID3016M-06S-WBN | 6 mm focal length |
| MV-ID3016M-12S-WBN | 12.4 mm focal length |
| MV-ID3016M-15S-WBN | 14.8 mm focal length |
Accessories
| Transparent lens cap | |
| Polarization lens cap |
MV-ID3016M, 1.6 MP - Downloads
MV-ID3016M datasheet Datasheet |
MV-ID3000-xx supporting light board Datasheet |

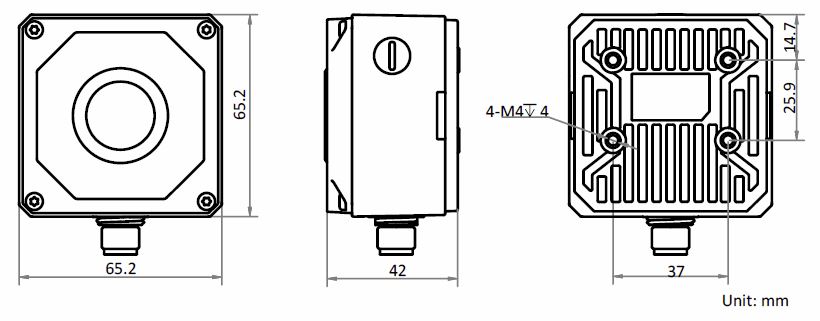

MV-ID3016M stp drawing Drawings |
