MV-ID6120M-00C-NNG, 12 MP, Smart Code Reader
With built-in code reading algorithm, MV-ID6120M-00C-NNG smart code reader can read different types of 1-dimensional code and 2-dimensional code with reading speed up to 60 codes/sec.
Features:
- Adopts built-in code reading algorithm and deep learning algorithm with good robustness to read different codes.
- Adopts CMOS sensor to acquire image data and provide high quality image.
- Supports various trigger modes and image acquisition modes.
- Adopts multiple IO interfaces for inputting and outputting signals.
- Supports RS-232 serial port and indicators displaying device status.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
MV-ID6120M-00C-NNG, 12 MP - Description
With built-in code reading algorithm, MV-ID6120M-00C-NNG smart code reader can read different types of 1-dimensional code and 2-dimensional code with reading speed up to 60 codes/sec. It adopts deep learning algorithm to process image with good robustness, and can recognize various poor printing quality barcodes.
MV-ID6120M-00C-NNG, 12 MP - Specifications
| Resolution | 12 MP |
| Power Supply | 12 VDC |
| 24 VDC | |
| Max Reading Speed | 60 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | FTP |
| HTTP | |
| Serial | |
| SmartSDK | |
| TCP Client/Server | |
| 1-Dimensional Code | Code 39 |
| Code 93 | |
| Code 128 | |
| CodaBar | |
| ITF 25 | |
| UPC/EAN | |
| 2-Dimensional Code | Data Matrix |
| QR Code |
MV-ID6120M-00C-NNG, 12 MP - Applications
Logistics code reading, factory automation, etc.
MV-ID6120M-00C-NNG, 12 MP - Models & Accessories
Accessories
| Lens | KF series FA lens |
| Light Source | MV-LB-200-200-20WL |
MV-ID6120M-00C-NNG, 12 MP - Downloads
MV-ID6120M-00C-NNG Datasheet Datasheet |

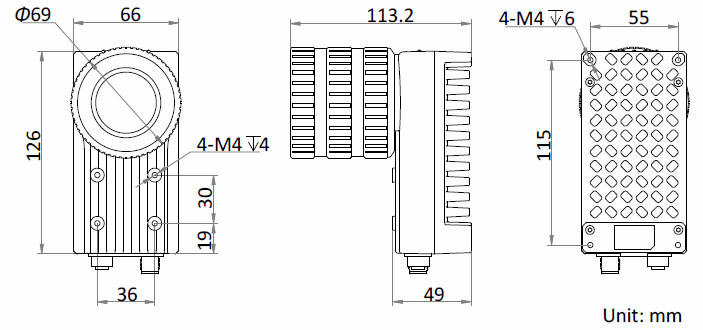

MV-ID6120M-00C-NNG, Drawing Drawings |
