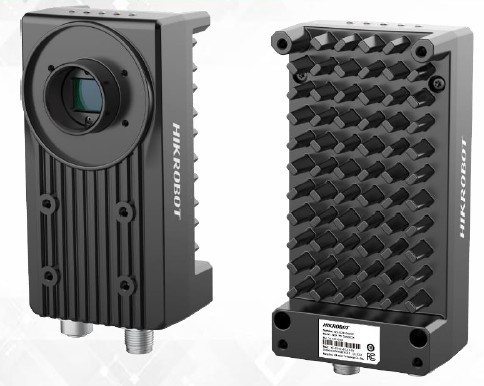

MV-ID6200EM-00C-NNG, 20 MP Industrial, Smart Code Reader
With built-in code reading algorithm, MV-ID6200EM-00CNNG industrial code reader can read different types of 1- dimensional and 2-dimensional codes with reading speed up to 30 codes/sec.
Features:
- Built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS sensor to provide high-quality images with horizontal resolution of 5K and bottom horizontal FOV covering 1-meter conveyor line.
- Supports rapid recognition of multiple code within large FOV.
- Supports networking of multiple devices.
- Flexible installation and convenient debugging.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
MV-ID6200EM-00C-NNG, 20 MP Industrial - Description
With built-in code reading algorithm, MV-ID6200EM-00CNNG industrial code reader can read different types of 1-dimensional and 2-dimensional codes with reading speed up to 30 codes/sec. It adopts deep learning algorithm to process images with good robustness, and can recognize various complex codes. It can be cooperated with the light source to have a larger depth of field.
MV-ID6200EM-00C-NNG, 20 MP Industrial - Specifications
| Resolution | 20 MP |
| Power Supply | 12 VDC |
| 24 VDC | |
| Max Reading Speed | 30 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | FTP |
| Serial | |
| SmartSDK | |
| TCP Client/Server | |
| UDP | |
| 1-Dimensional Code | Code 39 |
| Code 93 | |
| Code 128 | |
| CodaBar | |
| EAN 8 | |
| EAN 13 | |
| ITF 14 | |
| ITF 25 | |
| UPCA | |
| UPCE | |
| 2-Dimensional Code | Data Matrix |
| QR Code | |
| Type | Industrial |
| Mono/color | Mono |
MV-ID6200EM-00C-NNG, 20 MP Industrial - Applications
Express delivery and logistics, e-commerce, warehouse, etc.
MV-ID6200EM-00C-NNG, 20 MP Industrial - Models & Accessories
Accessories
| Lens | KF series FA lens |
| Light Source | MV-LB-270-140-4030WL-A |
| Light Source | MV-LB-270-140-4030WL-IR |
MV-ID6200EM-00C-NNG, 20 MP Industrial - Downloads
MV-ID6200EM-00C-NNG Datasheet |

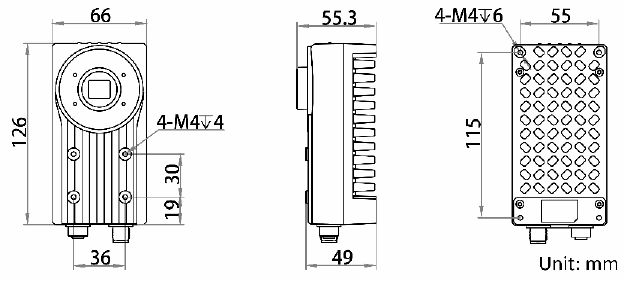

MV-ID6200EM-00C-NNG, Drawings Drawings |
