THL1200, Shibaura_Toshiba SCARA, Multi-Joint Robot
One of Toshiba's largest SCARA Robots, with arm length of 1200mm.
Features:
- Low cost
- Light to medium duty
- Up to 10kg payload
- Arm lengths from 300 to 1000mm
- Ideal for loading and unloading applications
- Ideal for end of line packaging and assembly work
Manufacturer: Shibaura Machine Co. Ltd. - TM Robotics
Quote
Description
Specifications
Applications
Downloads
Related Products
Similar Products
THL1200 - Description
Shibaura's THL1200 Robot features an arm length of 1200mm and payload mass of 10kg. It also features an envelope of 4 axis, a Z-axis rotation of 1700 degrees, and max speed of 5.7m/s.
THL1200 - Specifications
| Type | SCARA |
| Number of Axis | 4 |
| Arm Length | Full Length 1200 mm |
| First Arm 750 mm | |
| Second Arm 450 mm | |
| Maximum Speed | 5700 mm/sec (Axis 1 and 2 composite) |
| Standard Cycle Time | 0.58 sec |
| Maximum Payload Mass | 10 kg (rated 2 kg) |
| Positioning Repeatability | Axis Z (Axis 3) ±0.03 mm |
| Axis C (Axis 4) ±0.014 deg | |
| X-Y ±0.05 mm | |
| Hand Wiring | 8 inputs and 8 outputs |
| Hand Pneumatic Joint | φ6 x 3 pcs |
| Power Supply | 1.4 kVA |
| Mass | 40 kg |
| Controllers | TSL3000 |
| TSL3000E | |

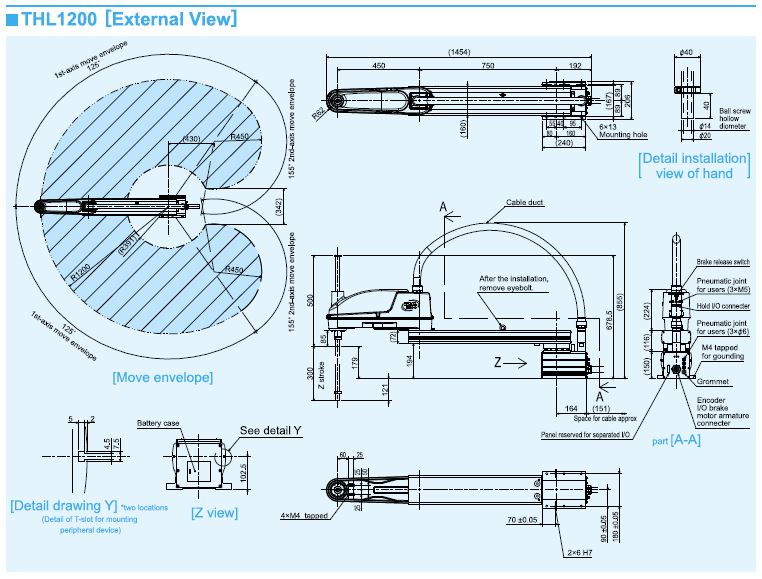

| Working Envelope | Axis 1, ±125 deg |
| Axis 2, ±155 deg | |
| Axis 3 (Axis Z), 0~300 mm | |
| Axis 4 (Axis C), ±360 deg |
THL1200 - Applications
Ideal for use in many High Precision Pick and Place applications, such as machine loading, unloading, and assembly.
THL1200 - Downloads
THL1200 Datasheet |
