FN3148, TE Load Cell with mechanical stops
- High Accuracy
- Integrated Amplifier optional
- Cable or connector output
- Ranges from 10 N to 2 000 N [2.25 lbf to 450 lbf]
- S-Beam sensor in tension and compression
- Combined linearity & hysteresis < 0.05% F.S.
The FN3148 load cell, with its S-Beam design, excels in precise force measurements in tension and compression across a range of 10 N to 2,000 N. It features combined linearity and hysteresis of less than 0.05% F.S., ensuring high accuracy. The cell is safeguarded against accidental overloads, enhancing its durability. For applications requiring high-level outputs, it can be integrated with amplifier options A1 or A2. Additionally, for lower force requirements, the FN3280 model offers measurements from 0-1 N to 0-5 N. The FN3148 is part of a comprehensive turnkey system that includes matched components such as the sensor, power supply, amplifier, and digital display, all pre-formatted and calibrated for immediate deployment. Instruction documents are also available to facilitate the optimal use of this sensor, providing essential guidance and tips.

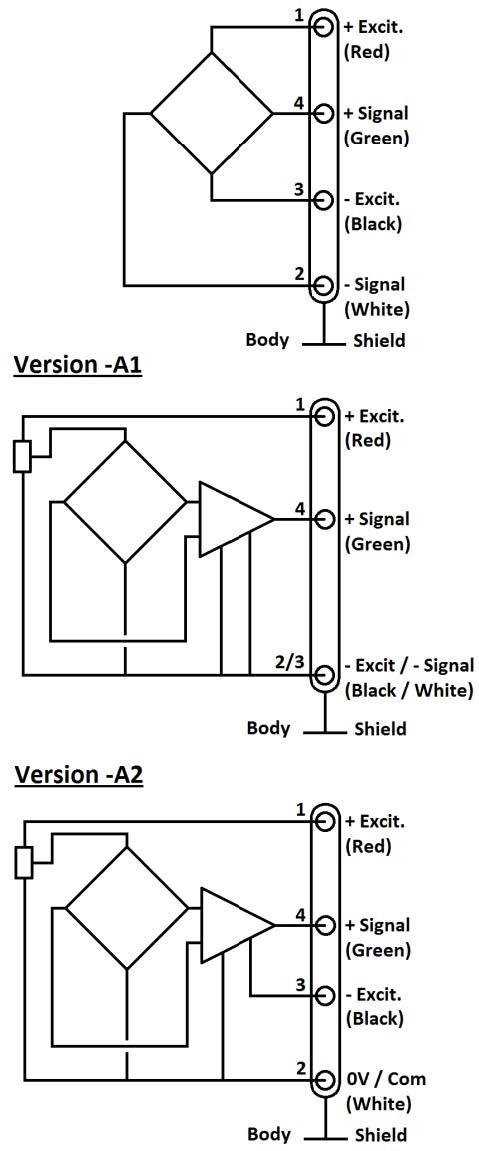

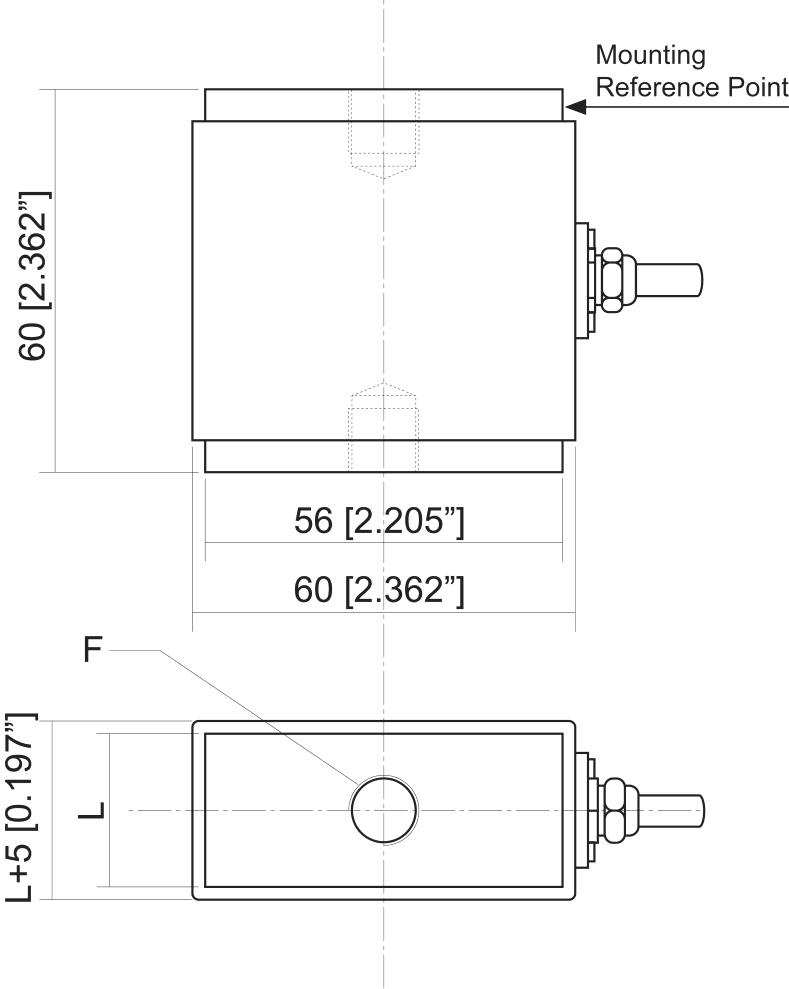

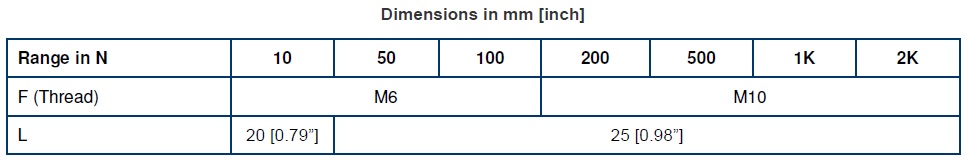

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
| Type | S-Type |
| Application | Tension & Compression |
| Full Scale | 2.2 lbs |
| 11.2 lbs | |
| 22 lbs | |
| 45 lbs | |
| 112 lbs | |
| 225 lbs | |
| 450 lbs | |
| Output | 20 mV/V |
| Precision | ±0.05 % FS |
| Excitation | 10 V AC |
| IP Rating | IP50 |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
- Process control equipment
- Medical Instruments
- Weighing
- Laboratory and Research
- Calibration test benches
| FN3148-A1-10N | |
| FN3148-A1-50N | |
| FN3148-A1-100N | |
| FN3148-A1-200N | |
| FN3148-A1-500N | |
| FN3148-A1-1KN | |
| FN3148-A1-2KN | |
| FN3148-A2-10N | |
| FN3148-A2-50N | |
| FN3148-A2-100N | |
| FN3148-A2-200N | |
| FN3148-A2-500N | |
| FN3148-A2-1KN | |
| FN3148-A2-2KN | |
| FN31481-10N | |
| FN31481-50N | |
| FN31481-100N | |
| FN31481-200N | |
| FN31481-500N | |
| FN31481-1KN | |
| FN31481-2KN |
| EFMX-4M | mating plug Jaeger 530-801-006 with clamp 530-841-006 for option /SC; /Z04/SC |
| EFMX-4H | mating plug Jaeger 530-804-006 with clamp 530-844-006 for option /SC; /Z35/SC |
FN3148 - Datasheet Datasheet |
- Standard ranges 10kN to 2000kN or [2 klbf to 400 klbf]
- Harsh industrial environment
- Very high stability
- Stainless steel or aluminum
- IP protection available
- High-level output with integrated amplifier
- Static and dynamic applications
- Rod end available in option
| Type | Rod Type |
| Application | Tension & Compression |
| Full Scale | 2.2 lbs, 4.5 lbs, 11.2 lbs, 22.5 lbs, 45 lbs, 112 lbs, 225 lbs, 450 lbs |
| Output | 20 mV/V |
| Precision | ±0.25 % FS |
| Excitation | 10 V AC |
- Optional Rod Ends
- Accuracy: 0.1% F.S.
- Integrated Amplifier optional
- Low Cost
| Type | S-Type |
| Application | Tension & Compression |
| Full Scale | 11.2 lbs, 22.5 lbs, 45 lbs, 112 lbs, 225 lbs, 450 lbs, 1124 lbs, 2250 lbs, 4500 lbs, 11200 lbs, 22480 lbs |
| Output | 20 mV/V |
| Precision | ±0.1 % FS |
| Excitation | 10 V DC |

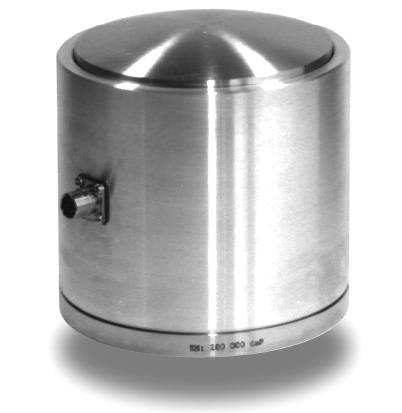

- Compression Design
- Ranges from 20 kN to 5000 kN
- Very High Stiffness
- Optional Build in AmplifierLinearity: <0.1% F.S.
- Integrated Amplifier optional
- Optional: Load Button
| Type | Load Button |
| Full Scale | 4.5 lbs, 11.2 lbs, 22.5 lbs, 45 lbs, 112 lbs, 225 lbs, 450 lbs, 674 lbs, 1120 lbs |
| Output | 20 mV/V |
| Precision | ±0.1 % FS |
| Excitation | 10 V AC |
| IP Rating | IP50 |
