FN2420, TE Load Cell - High Accuracy Compression
- Compression Design
- Ranges from 20 kN to 5000 kN
- Very High Stiffness
- Optional Build in AmplifierLinearity: <0.1% F.S.
- Integrated Amplifier optional
- Optional: Load Button
The FN2420 is a high-accuracy compression load cell frequently employed in calibration press applications. It is available with numerous options such as a concave loading fixture and an integrated amplifier for enhanced output levels. The design of the FN2420, along with the optional concave loading fixture, effectively reduces transverse effects. Made from stainless steel, this sensor is adept for use in various adverse conditions and offers customization options for additional protection. With a history in sensor design and production, the company often collaborates with clients to tailor sensors for particular applications and test environments. To accommodate your requirements, comprehensive turnkey systems are also provided. These systems include matched components (sensor, power supply, amplifier, and digital display), all of which are pre-configured, calibrated, and ready for immediate deployment. Upon request, instructional materials are available to simplify the selection and utilization of the sensors, along with useful advice.

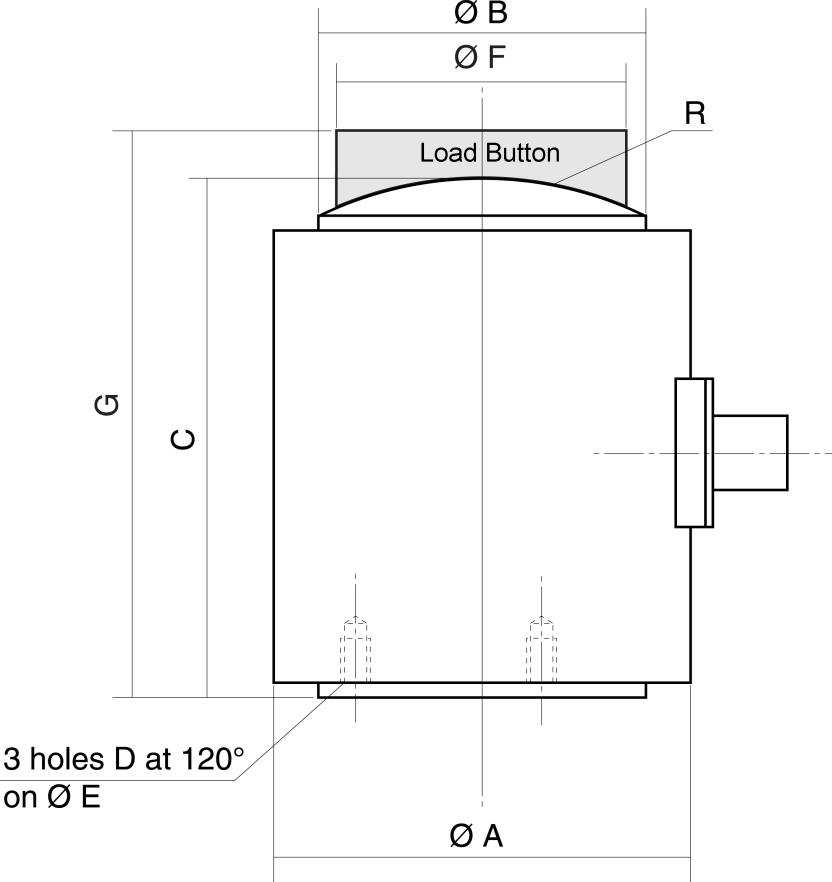

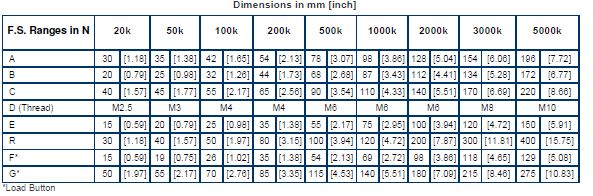

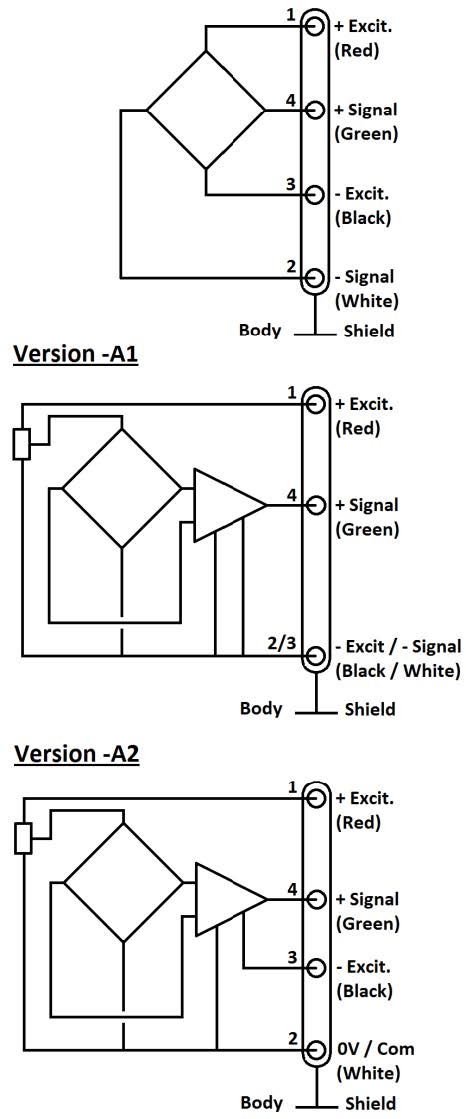

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
| Type | Load Button |
| Full Scale | 4.5 lbs |
| 11.2 lbs | |
| 22.5 lbs | |
| 45 lbs | |
| 112 lbs | |
| 225 lbs | |
| 450 lbs | |
| 674 lbs | |
| 1120 lbs | |
| Output | 20 mV/V |
| Precision | ±0.1 % FS |
| Excitation | 10 V AC |
| IP Rating | IP50 |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
- Process Control Equipment
- Weighing Calibration Tool
- Robotics and Effectors
- Laboratory and Research
- Calibration Presses
| FN2420-A1-20KN | |
| FN2420-A1-50KN | |
| FN2420-A1-100KN | |
| FN2420-A1-200KN | |
| FN2420-A1-500KN | |
| FN2420-A1-1000KN | |
| FN2420-A1-2000KN | |
| FN2420-A1-3000KN | |
| FN2420-A1-5000KN | |
| FN2420-A2-20KN | |
| FN2420-A2-50KN | |
| FN2420-A2-100KN | |
| FN2420-A2-200KN | |
| FN2420-A2-500KN | |
| FN2420-A2-1000KN | |
| FN2420-A2-2000KN | |
| FN2420-A2-3000KN | |
| FN2420-A2-5000KN | |
| FN2420-20KN | |
| FN2420-50KN | |
| FN2420-100KN | |
| FN2420-200KN | |
| FN2420-500KN | |
| FN2420-1000KN | |
| FN2420-2000KN | |
| FN2420-3000KN | |
| FN2420-5000KN |
| EFMX-4M | mating plug Jaeger 530-801-006 with clamp 530-841-006 standard and Z04 option for ranges 20kN to 100kN |
| EFMX-4H | mating plug Jaeger 530-804-006 with clamp 530-844-006 for Z35 or Z36 option & ranges 20kN to 100kN |
| EFMX-7M | mating plug Jaeger 530-272-006 with clamp 530-371-006 standard and Z04 option for ranges 200kN to 5MN |
| EFMX-7H | mating plug Jaeger 530-604-006 with clamp 530-693-006 for Z35 or Z36 option & ranges 200kN to 5MN |
