FN2570, TE Load Cell - Extra-flat Pedal Load Cell

The FN2570 Load Cell is an advanced, precision-engineered device specifically crafted for the rigorous demands of pedal force testing applications. This compact, high-performance instrument is the ideal solution for both endurance and fatigue testing scenarios, where accuracy and reliability are paramount. Its design facilitates effortless integration onto various pedals and test rigs, making it a versatile tool for a wide range of testing environments.

Constructed from premium stainless steel, the FN2570 ensures durability and long-term reliability, essential for continuous testing cycles and harsh operating conditions. The device is engineered to deliver high-precision force measurements across a broad spectrum, with a capacity ranging from 200 to 2500 Newtons (N), equivalent to 40 to 500 pounds-force (lbf), catering to a diverse array of testing requirements.

One of the standout features of the FN2570 is its ability to provide accurate force readings irrespective of the point of force application. This is crucial for obtaining reliable data in applications where the force distribution may not be uniform or predictable. Additionally, the inclusion of a strain relief spring at the cable output significantly enhances the durability and longevity of the device, safeguarding against potential damage from repeated use and mechanical stress.

Balancing technical sophistication with user-friendly operation, the FN2570 Load Cell is an essential tool for professionals seeking accurate, reliable pedal force measurements in compact testing setups.

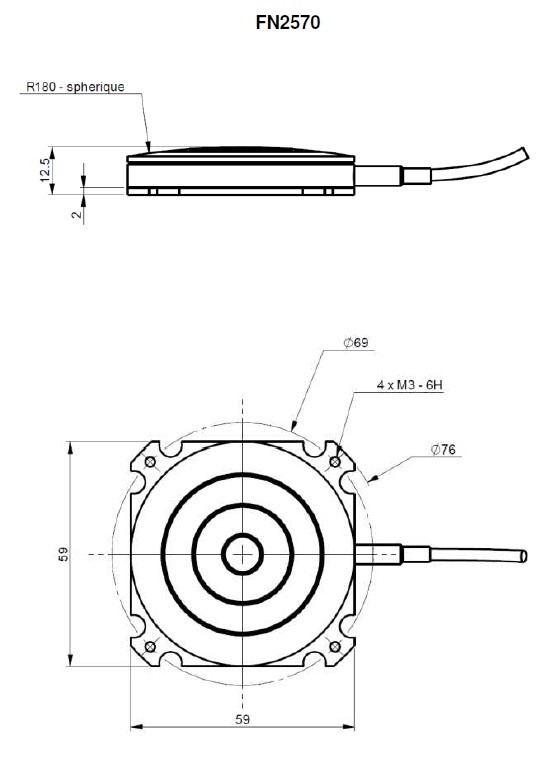

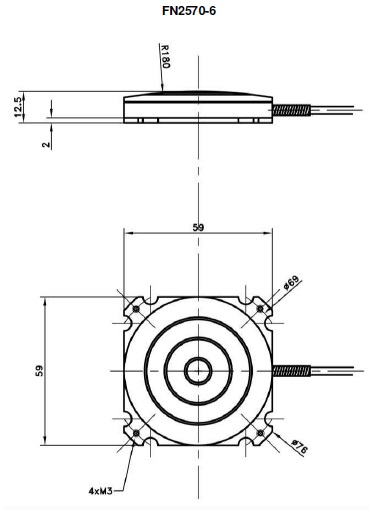

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)

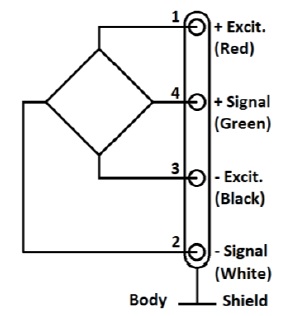

Wiring Schematic
