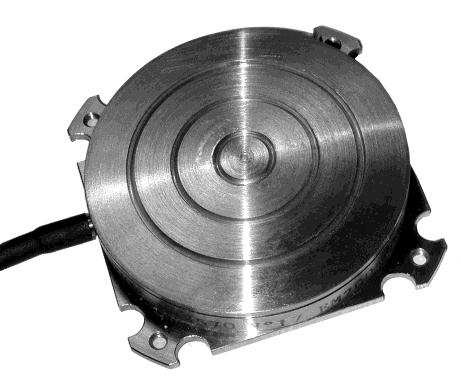

FN2114, TE Load Cell - Pedal Load Cell

The FN2114 Load Cell stands as a highly versatile and precise instrument designed to meet the diverse needs of pedal load testing. Whether applied to the brake, clutch, or accelerator pedals, this sensor accommodates the varying forces encountered from small cars to heavy goods vehicles by offering a selection of standard measurement ranges from 200 to 2500 N (40 to 500 Lbf).

One of the FN2114's key features is its internal mechanical decoupling system, which guarantees a consistent accuracy of 1% Full Scale (F.S.), irrespective of where the force is applied. This ensures reliable and accurate measurements critical for both safety and performance evaluations in automotive testing.

For applications requiring enhanced signal output, the FN2114 can be equipped with an optional integrated amplifier, available for all measurement ranges. This feature facilitates the easy integration of the load cell into existing testing setups, providing high-level output suitable for various data acquisition systems.

The load cell is constructed with a robust aluminum body, designed for longevity and resilience in demanding testing environments. Its cable gland output further contributes to its durability, ensuring secure and reliable connections.

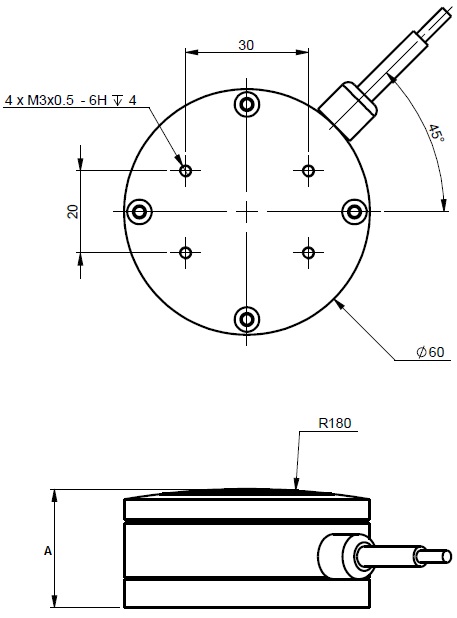

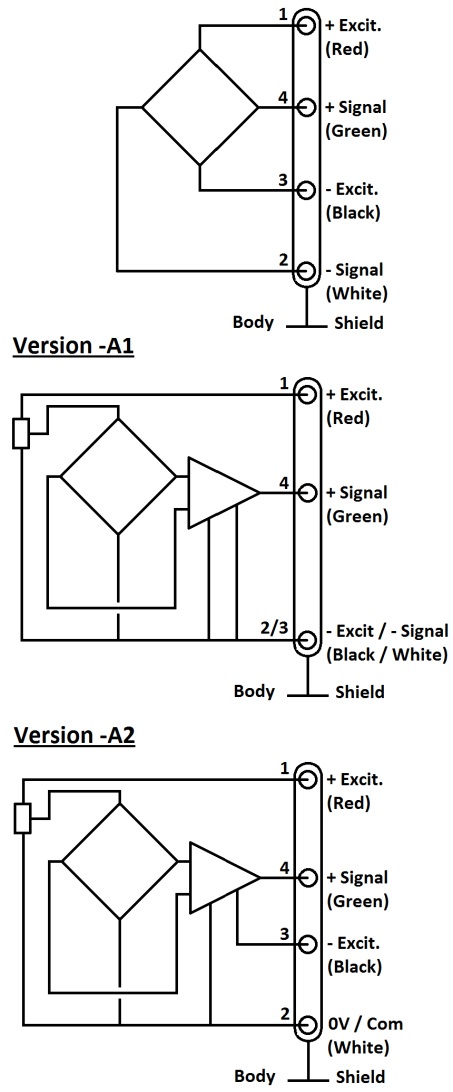

DIMENSIONS & WIRING SCHEMATIC (IN METRIC)

Dimension A :
28 mm for ranges 200N, 500N
29 mm for ranges 1kN, 1.5kN, 2kN, 2.5kN
