8739, Spring Loaded LVDT Displacement Sensor with IN-LINE Amplifier
![8739, Spring Loaded LVDT Displacement Sensor with IN-LINE Amplifier](img/series/405_8739.jpg)
![8739, Spring Loaded LVDT Displacement Sensor with IN-LINE Amplifier](img/series/405_8739.jpg)
- LVDT
- With or Without IN-LINE Amplifier
- Rod Profile
- Nickel-Plated Stainless Steel 25 (Sensor)
- Aluminum (IN-LINE Amplifier)
- Connection: 2.0m Integral Cable
- Vibration-Free & Wear Resistant

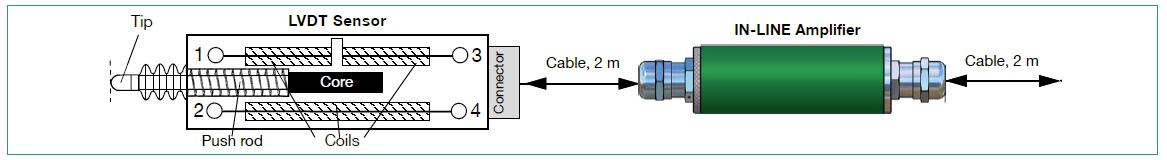

The cylindrical case made of stainless steel, houses a differential transformer (LVDT). It consists of a primary and two secondary coils with axially moveable core. A displacement of this core changes the magnetic induction of the coils. The IN-LINE carrier frequency amplifier converts the displacement into a direct proportional electrical DC voltage.
The transducer is constructed as a probe at which within the measuring range a spring pushes the probe tip towards the measuring object. Bellows protect the mechanical guidance of the probe tip against pollution and splash water.
The IN-LINE amplifier is integrated in the connector cable and adjusted specifically to the sensor. Both components form a unit while they can be separated for mounting purposes (miniature plug connection at the transducer). The use of not harmonized components may lead to increased measurement errors. For the IN-LINE amplifier version the sensor body is galvanically isolated from the excitation and from the measuring signal. Lateral forces decrease the durability.
Type | LVDT |
Full Scale | 0.5 mm [0.02"] |
1 mm | |
2 mm | |
2.5 mm | |
5 mm | |
10 mm | |
Output | 0 - 10 V DC |
Non-Linearity | ±0.25 % FS |
Resolution | Infinitesimal |
Excitation | 13.5 - 28 V DC |
IP Rating | IP60 |
IP65 | |
Min Temperature | -20 °C |
Max Temperature | 80 °C |
Inductive displacement sensors of this series measure linear displacements and indirectly all mechanical values convertible into displacements by additional equipment (i.e. tension and compression forces, extension, torque, vibration). The sensor body equipped with a connector has an outer diameter of only 8 mm and therefore is especially well suitable for the integration in dimensionally restricted structures.
Typical application fields are displacement and extension measurements on
- Machines
- Servo systems
- Motor vehicles
- Test benches
- Production plants

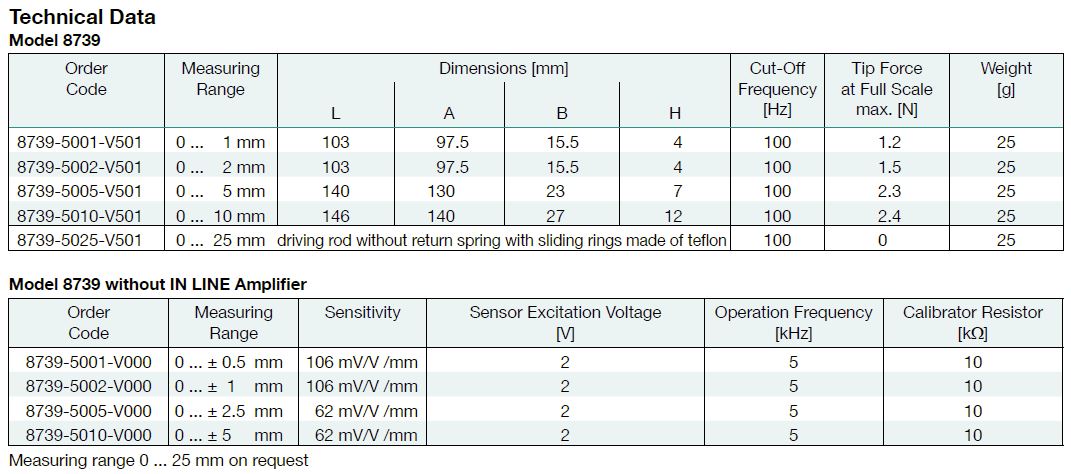

8739-5001-V501 | 0 - 1 mm |
8739-5002-V501 | 0 - 2 mm |
8739-5005-V501 | 0 - 5 mm |
8739-5010-V501 | 0 - 10 mm |
8739-5025-V501 | 0 - 25 mm driving rod without return spring with sliding rings made of Teflon |
8739-5001-V000 | ± 0.5 mm |
8739-5002-V000 | ± 1 mm |
8739-5005-V000 | ± 2.5 mm |
8739-5010-V000 | ± 5 mm |
8739 LVDT Displacement Sensor with IN-LINE Amplifier Datasheet |

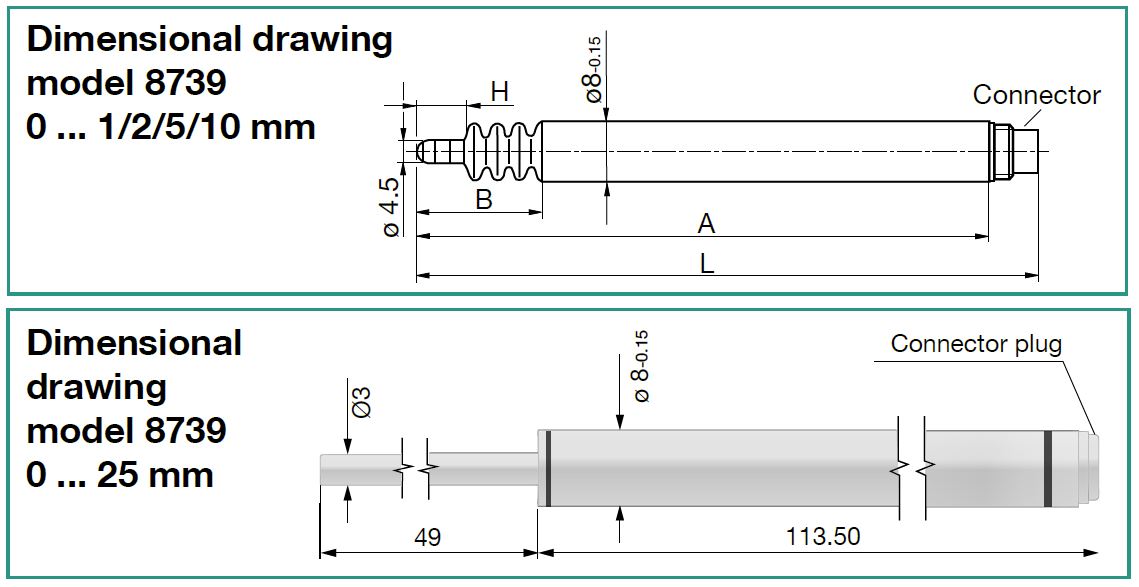

8739-5001-V000 CAD Drawing Drawings |
8739-5002-V000 CAD Drawing Drawings |
8739-5005-V000 CAD Drawing Drawings |
8739-5010-V000 CAD Drawing Drawings |
8739-5001-V501 CAD Drawing Drawings |
8739-5002-V501 CAD Drawing Drawings |
8739--5005-V501 CAD Drawing Drawings |
8739-5010-V501 CAD Drawing Drawings |
