F5-1600, Forklift Mobile Robot
The MR-F5-1600-HI(CE) is a high-performance forklift mobile robot designed for industrial automation. With advanced SLAM navigation and customizable forks, it seamlessly handles goods up to 1600 kg with precision and safety.
Features:
- High load capacity, lifting, carrying, and lowering goods up to 1600 kg using standard pallets.
- SLAM navigation enables precise positioning and smooth motion in networked environments.
- Fork dimensions and gantry structure can be customized to meet specific operational requirements.
- Supports maximum running speed of 1.5 m/s with positioning accuracy within ±10 mm and angular accuracy within ±1°.
- Automatic charging and self-return functionality enhance operational efficiency.
- Advanced safety systems include laser and infrared obstacle avoidance, load detection, emergency stop buttons, and audible alarms.
- LCD screens and status indicators provide clear device monitoring and control.
- Wi-Fi communication ensures smooth operation with seamless roaming capabilities.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Applications
Downloads
F5-1600 - Description
The MR-F5-1600-HI(CE) forklift mobile robot combines cutting-edge technology with robust engineering to deliver exceptional automation in material handling. It supports a variety of applications, ranging from e-commerce and electronics manufacturing to automotive and pharmaceutical industries. This intelligent mobile robot features SLAM-based navigation for precise positioning, customizable fork dimensions, and advanced safety protocols, ensuring smooth operations even in dynamic environments. Its efficient power management enables automatic charging, making it an eco-friendly and cost-effective solution for modern logistics and warehousing needs.

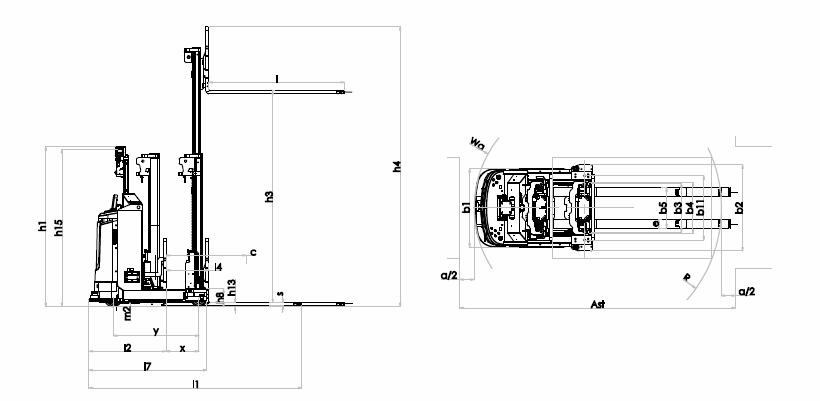

Dimension

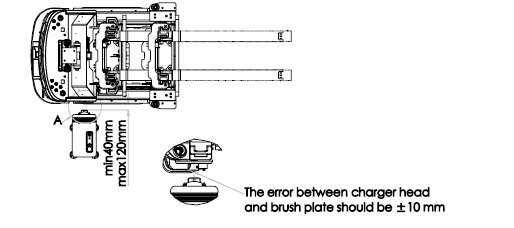

Charging Station Deployment Presented
F5-1600 - Specifications
| AGV Type | Forklift Mobile Robot [FMR] |
| Lifting Height | 3000 mm |
| Rated Load | 1600 kg |
| Navigation Mode | Laser SLAM |
| Driving Mode | Movement Mode |
| Charging Time (h) | 2 h |
| Run time (h) | 6~8 |
| Min. Aisle Width (m) | 2.7 m |
F5-1600 - Applications
- E-commerce and warehousing for efficient logistics operations.
- Electronics and consumer goods manufacturing for precise material handling.
- Automotive industry for transporting heavy components.
- Mechanical manufacturing processes requiring robust material movement.
- Textile, tobacco, and pharmaceutical industries for handling specialized materials.
F5-1600 - Downloads
MR-F5-1600-HI(CE)_datasheet- Datasheet |
