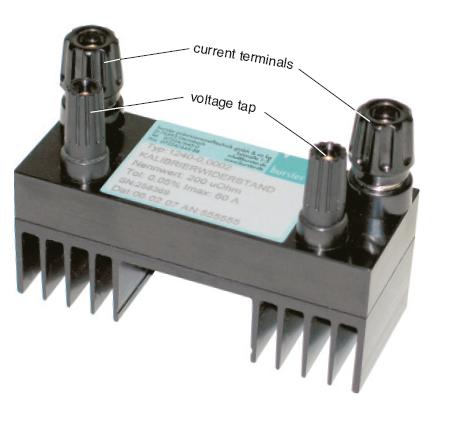

1240, Calibration Resistor

The 0.02 class calibrated resistors excel in their modern design and small mechanical dimensions. Their ruggedness also ensures a long life. Calibration resistors of the 1240 series are used wherever very constant operating standards are required.
1240, Calibration Resistor
1240, Calibration Resistor
Features:
  • Low capacitance and low inductance design
  • Suitable for direct current and technical frequencies
  • High stability < ± 0.01 % over years
  • Their ruggedness also ensures a long life
Manufacturer:  Burster Praezisionsmesstechnik Gmbh
Quote
Datasheet
Description
Downloads
1240 - Description
The 0.02 class calibrated resistors excel in their modern design and small mechanical dimensions. Their ruggedness also ensures a long life.

Calibration resistors of the 1240 series are used wherever very constant operating standards are required. Typical main areas of application therefore include:
- when normal resistors prove to be too large
- to test measuring bridges
- for tests on electrical temperature measuring equipment
- for laboratory setup of a Wheatstone bridge
- to setup plate circuits
- for a defined current characteristic at a defined voltage
- as shunt resistor for current measurement
- as part of standard equipment in research laboratories
- for a large part of measurements in calibration workshop.

With the delivery of this calibration resistor you get a test certificate corresponding ISO 9000 with detailed technical data
