D64, Analog Output Reflectance Dependent Fiberoptic Displacement Sensor
The D64 transducers are based upon detecting the intensity of reflected light. These are commonly used in applications where the target reflectivity stays constant. Analog sensors are fast responding units ideal for relative motion measurements.
Features:
- Fiberoptic
- Reflectance Dependent Output
- Near Side & Far Side Functions
- 300 Stainless Steel Probe Tip
- Tip Outer Diameter: 3.18 mm
- Target Spot Size: 1.60 mm
- 0.9 m Fiberoptic Cable
- Available in 100 Hz, 20 kHz or 200 kHz Bandwidth
Manufacturer: Philtec
Quote
Datasheet
Specifications
Applications
Models & Accessories
Downloads
Similar Products
D64 - Specifications
| Type | Fiberoptic |
| Full Scale | 0.3 mm |
| 6 mm | |
| Output | 0 - 5 V DC |
| Non-Linearity | Non-Linear |
| Resolution | 0.00004 mm |
| 0.001 mm | |
| Excitation | 12 - 24 V DC |
| Min Temperature | -55 °C |
| Max Temperature | 175 °C |
D64 - Applications

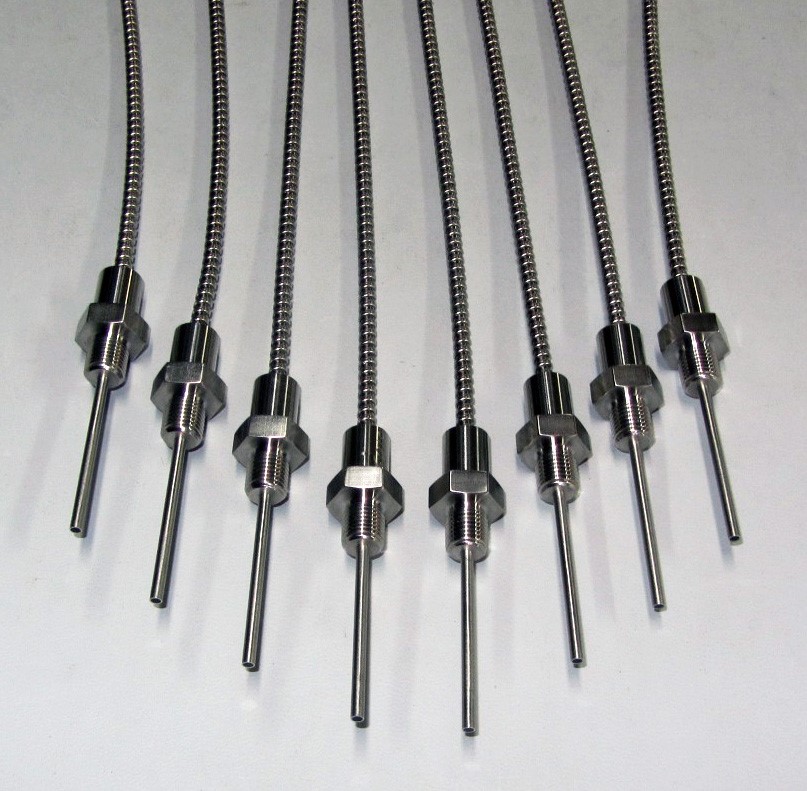

The D64 probes are used for operation in vacuum, high pressure or cryogenic fluids. The Fiber Optic cables are connectorized to enable separation of the probes from the amplifiers. The cables have extra long lengths.

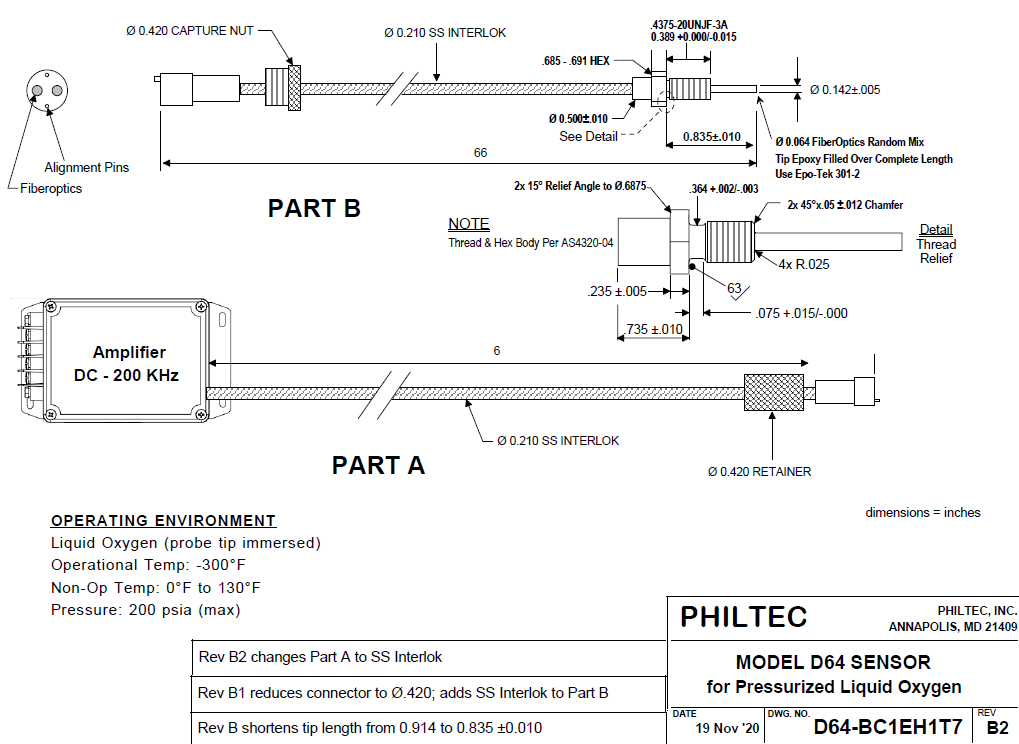

The example below is used as a speed probe, model D64-BC1E1H1T7, with 200 kHz bandwidth.
Aerospace and Outer Space applications examples, where a wide variety of Philtec Fiberoptic
Sensors are for the Measurement of Distance, Displacement and Vibration
NASA Space Shuttle Airbus A380 Rocket Engines
Space Telescope measurements for the Hubble, Euclid and James Webb Telescopes.
D64 - Models & Accessories
Models
| D64-DC-100Hz | 100 Hz Bandwidth |
| D64-DC-20kHz | 20 kHz Bandwidth |
| D64-DC-200kHz | 200 kHz Bandwidth |
| D64-BC1E1H1T7 | Special with 200kHz bandwidth |
D64 - Downloads
D64 Reflectance Dependent Fiberoptic Sensor Datasheet |
Fiberoptics For High Magnetic Fields App Note |
RadHard, Radiation Resistant Sensors App Note |
Curved Glass Measurement Solution App Note |
Type D Sensor Applications With Tilt App Note |
Long Fiber Optic Cables App Note |
Cryogenic Lens Holders App Note |
D64-BEH1T7custRevB2 Cryogenic Probe - 200kHz Bandwidth Drawings |
Calibration of Fiber Optic Displacement Sensors Tech Note |
Applications of Fiber Optic Sensors in Space Launch App Note |
TTL output Option (5 Vdc binary) for D series Fiber Optic sensors Tech Note |
