D171, Analog Output Reflectance Dependent Fiberoptic Displacement Sensor

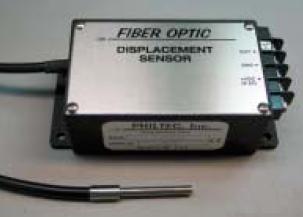

The D171 transducers are based upon detecting the intensity of reflected light. These are commonly used in applications where the target reflectivity stays constant. Analog sensors are fast responding units ideal for relative motion measurements.
Features:
- Fiberoptic
- Reflectance Dependent Output
- Near Side & Far Side Functions
- 300 Stainless Steel Probe Tip
- Tip Outer Diameter: 4.75 mm
- Target Spot Size: 4.35 mm
- 0.9 m Fiberoptic Cable
- Available in 100 Hz, 20 kHz or 200 kHz Bandwidth
Manufacturer: Philtec
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
D171 - Specifications
| Type | Fiberoptic |
| Full Scale | 8 mm |
| 40 mm | |
| Output | 0 - 5 V DC |
| Non-Linearity | Non-Linear |
| Resolution | 0.0015 mm |
| 0.0056 mm | |
| Excitation | 12 - 24 V DC |
| Min Temperature | -55 °C |
| Max Temperature | 175 °C |
D171 - Models & Accessories
Models
| D171-DC-100Hz | 100 Hz Bandwidth |
| D171-DC-20kHz | 20 kHz Bandwidth |
| D171-DC-200kHz | 200 kHz Bandwidth |
D171 - Downloads
D171 Reflectance Dependent Fiber Optic Sensor Datasheet |
Fiberoptics For High Magnetic Fields App Note |
RadHard, Radiation Resistant Sensors App Note |
Curved Glass Measurement Solution App Note |
Type D Sensor Application With Tilt App Note |
Long Fiber Optic Cables App Note |
Cryogenic Lens Holders App Note |
Calibration of Fiber Optic Displacement Sensors Tech Note |
Applications of Fiber Optic Sensors in Space Launch App Note |
TTL output Option (5 Vdc binary) for D series Fiber Optic sensors Tech Note |
